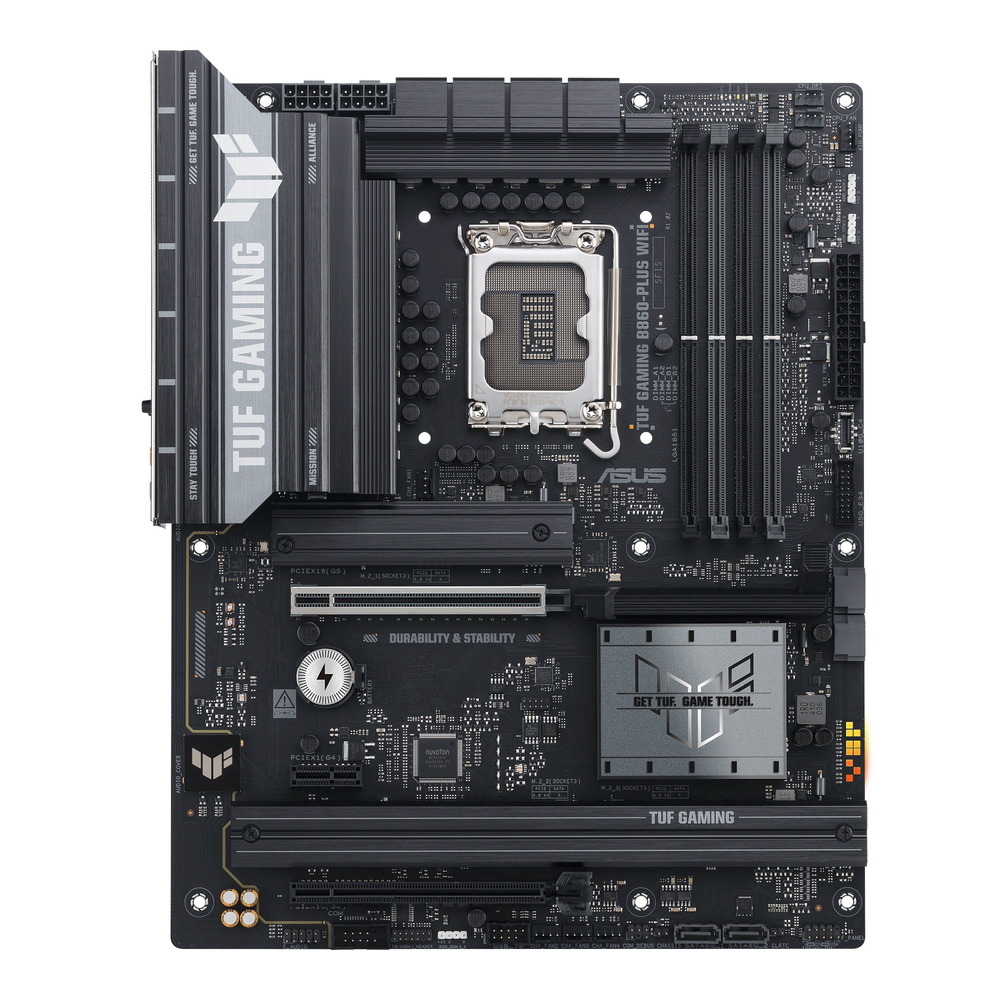

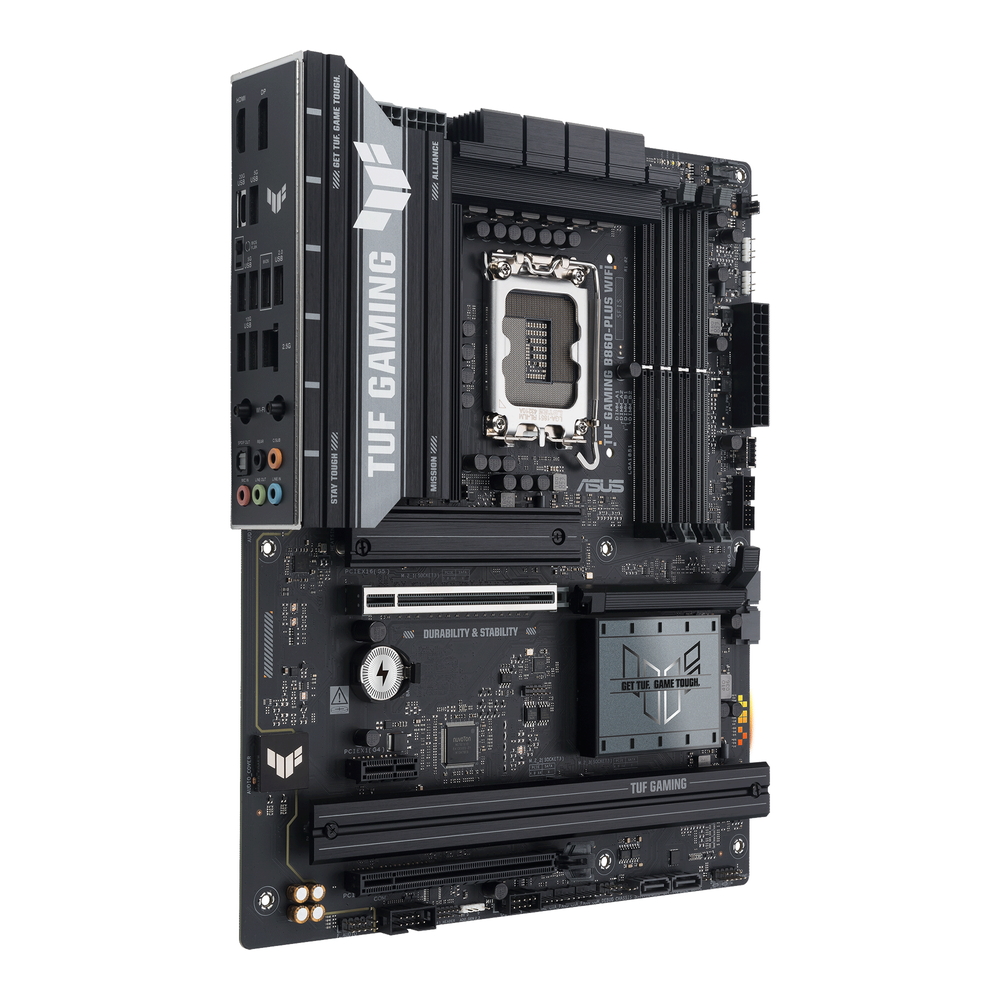

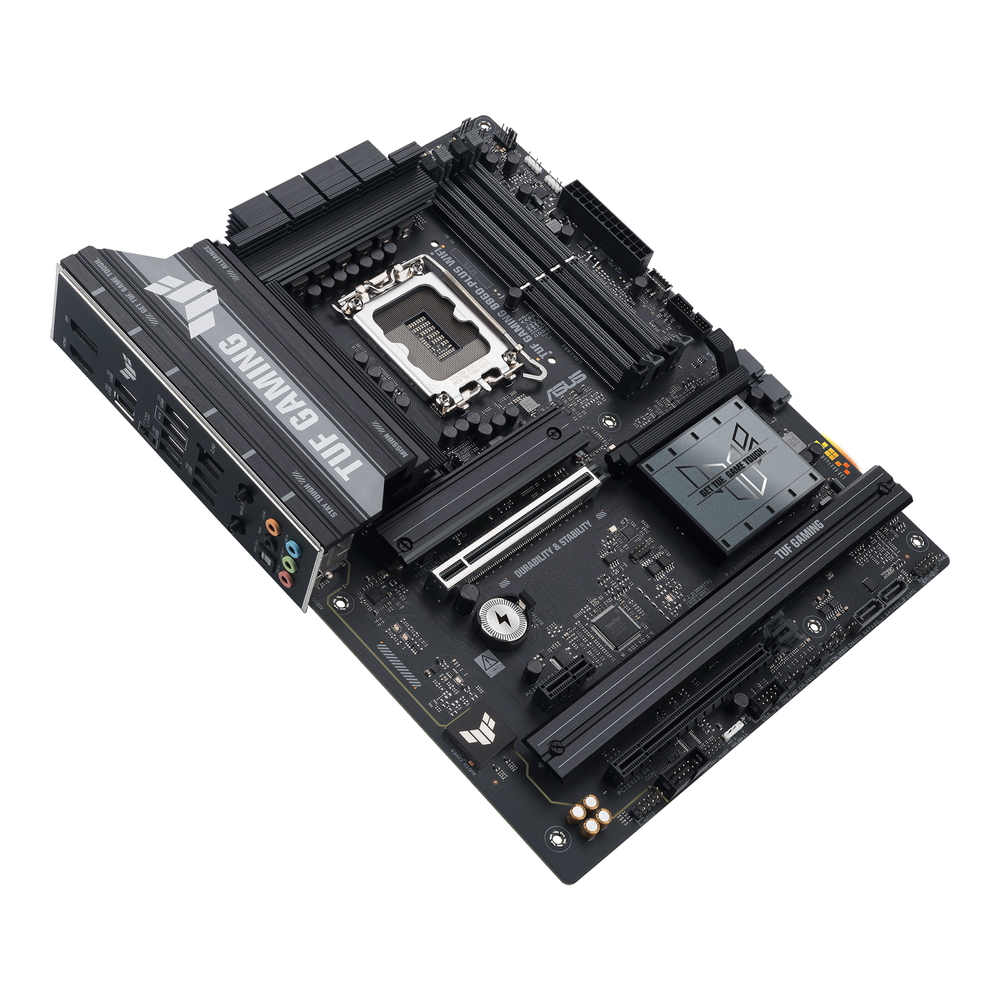

TUF GAMING B860-PLUS WIFI

TUF GAMING B860-PLUS WIFI

Intel B860チップセット搭載
「TUF Gaming」マザーボード

・Intel B860チップセット搭載
・「TUF Gaming」マザーボード
・ATXフォームファクター
・Intel Socket LGA1851
・Intel Core Ultra プロセッサー(series 2)対応
・12(80A) +1(80A) +2(80A) +1(80A) パワーステージ
・ProCool電源コネクター、堅牢な耐久性と安定性のTUFコンポーネント
・拡大されたVRMとPCHヒートシンク、M.2ヒートシンクなどがシステムを強力に冷却
・PCIe 5.0 スロット、PCIe 5.0 M.2スロット装備
・USB 20Gbps Type-C（DP Altモード対応）装備
・Wi-Fi 7 + 2.5Gb LAN
・PCIe Slot Q-Release、Q-Antenna、M.2 Q-Latch
・プリマウントされた I/O シールド、Q-LED、BIOS FlashBack
・ASUS AI ADVISOR
・AEMP III、DIMM FIT

型番：TUF GAMING B860-PLUS WIFI

JAN：0197105815155

発売日：2025年1月14日

メーカー製品ページ



「TUF GAMING B860-PLUS WIFI」は、Intel B860チップセットを搭載した、高い耐久性が特徴の「TUF GAMING」マザーボードです。
12(80A) +1(80A) +2(80A) +1(80A) パワーステージの強力な電源回路が、Intel Core Ultra プロセッサーの性能を引き出します。拡大されたVRMやPCHの大型ヒートシンク、M.2ヒートシンクなどを備え、冷却性能も高められています。
また、USB 20Gbps Type-C（DP Altモード対応）などの高速規格を搭載。さらに2.5G LAN + Wi-Fi 7をサポートし、高速なネットワーク環境を構築することができます。
耐久性の高い部品や、さまざまな保護機能によって、過酷な使用環境にも耐えられるように設計されています。








型番 TUF GAMING B860-PLUS WIFI
フォームファクター ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
チップセット Intel B860 Chipset
対応CPUソケット LGA1851
対応CPU Support Intel Core Ultra Processors(Series 2) , LGA1851*
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
対応メモリー 4 x DIMM slots, max. 192GB, DDR5
Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
**Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
拡張スロット Intel Core Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot
Intel B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)*
1 x PCIe 4.0 x1 slot*
* PCIEX16(G4) shares bandwidth with PCIEX1(G4). When PCIEX1(G4) runs at PCIe x1 mode, PCIEX16(G4) will only run at PCIe x2 mode.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
ストレージ Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel Core Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports, SATA RAID 0/1/5/10.

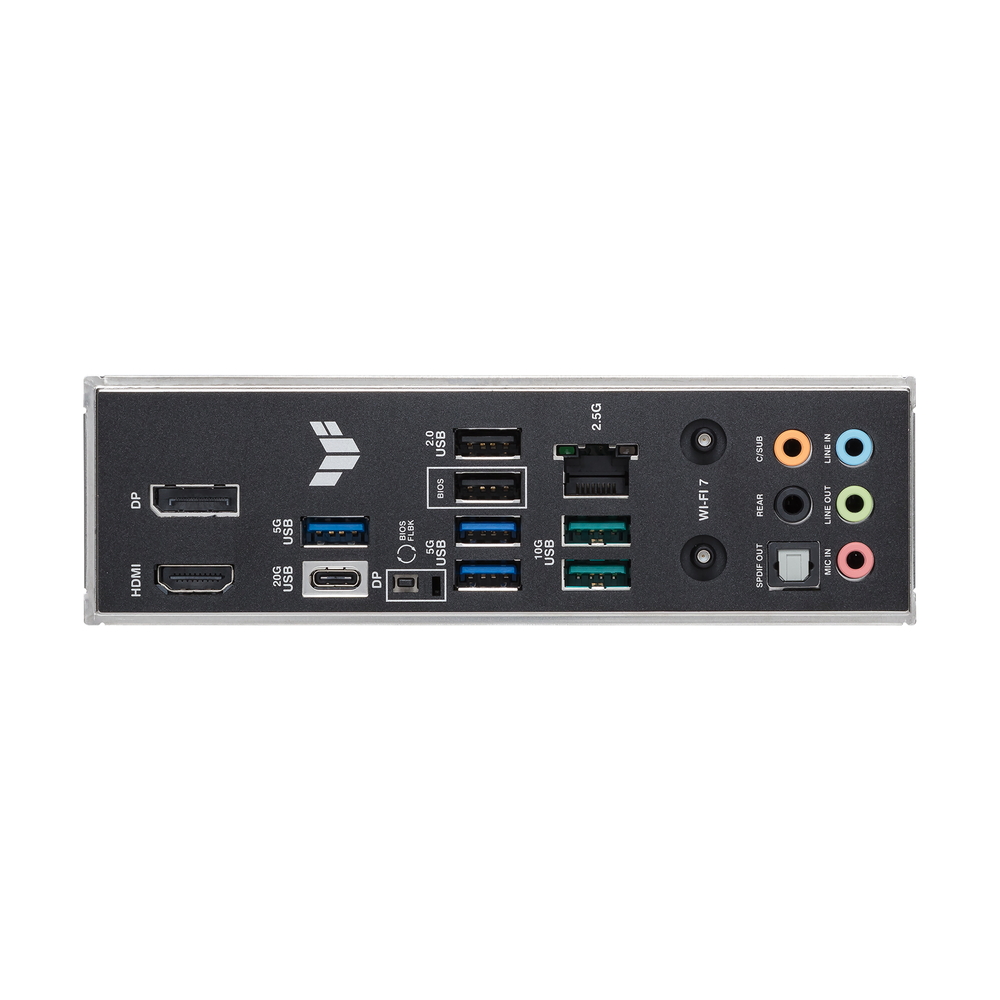

USB Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C)
2 x USB 10Gbps ports (2 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 5 ports)
1 x USB USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
USB Type-C power delivery output: max. 5V/3A
Thunderbolt 1 x Thunderbolt (USB4) header
LAN 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
無線機能 Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4***

*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
映像出力 1 x DisplayPort**
1 x HDMI port***
1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output****
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
****Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***** VGA resolution support depends on processors' or graphic cards' resolution.
******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
オーディオ Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
LED 3 x Addressable Gen 2 headers
OS Windows 11 (22H2 & later)

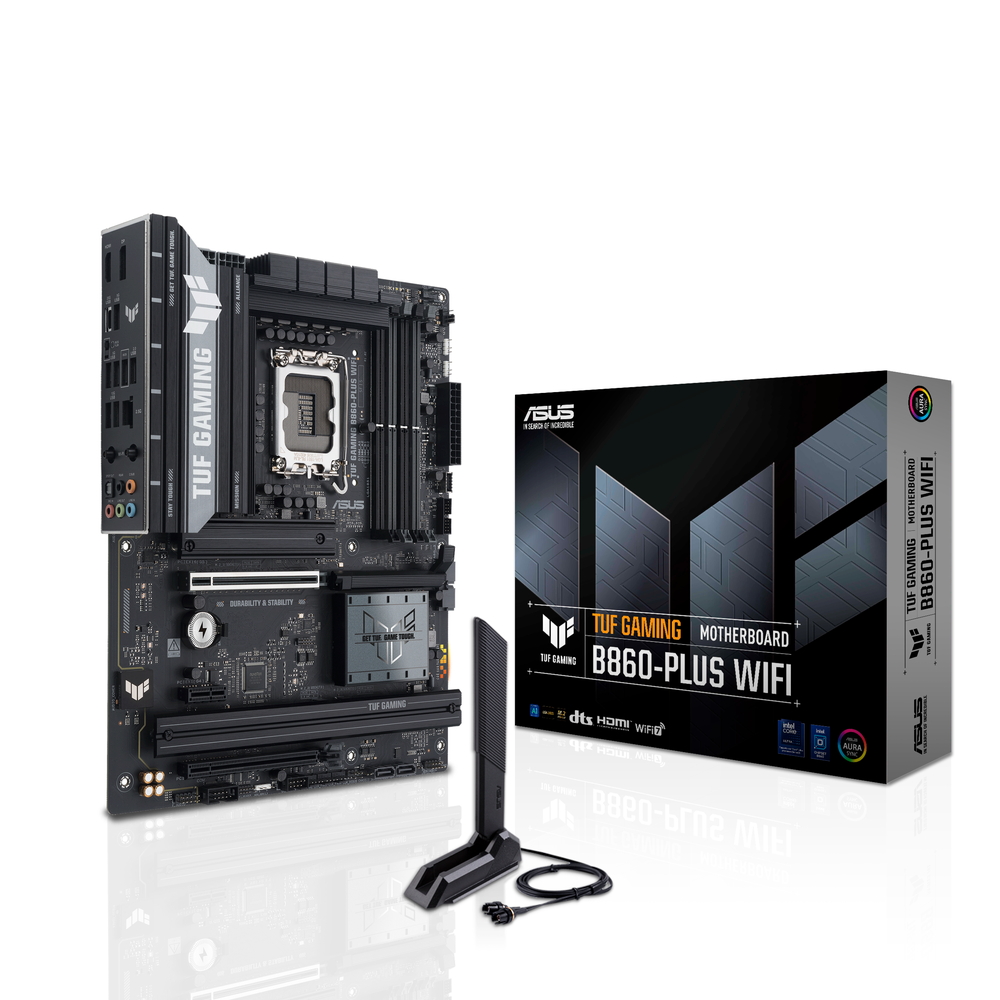

付属品 Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x Quick start guide

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
