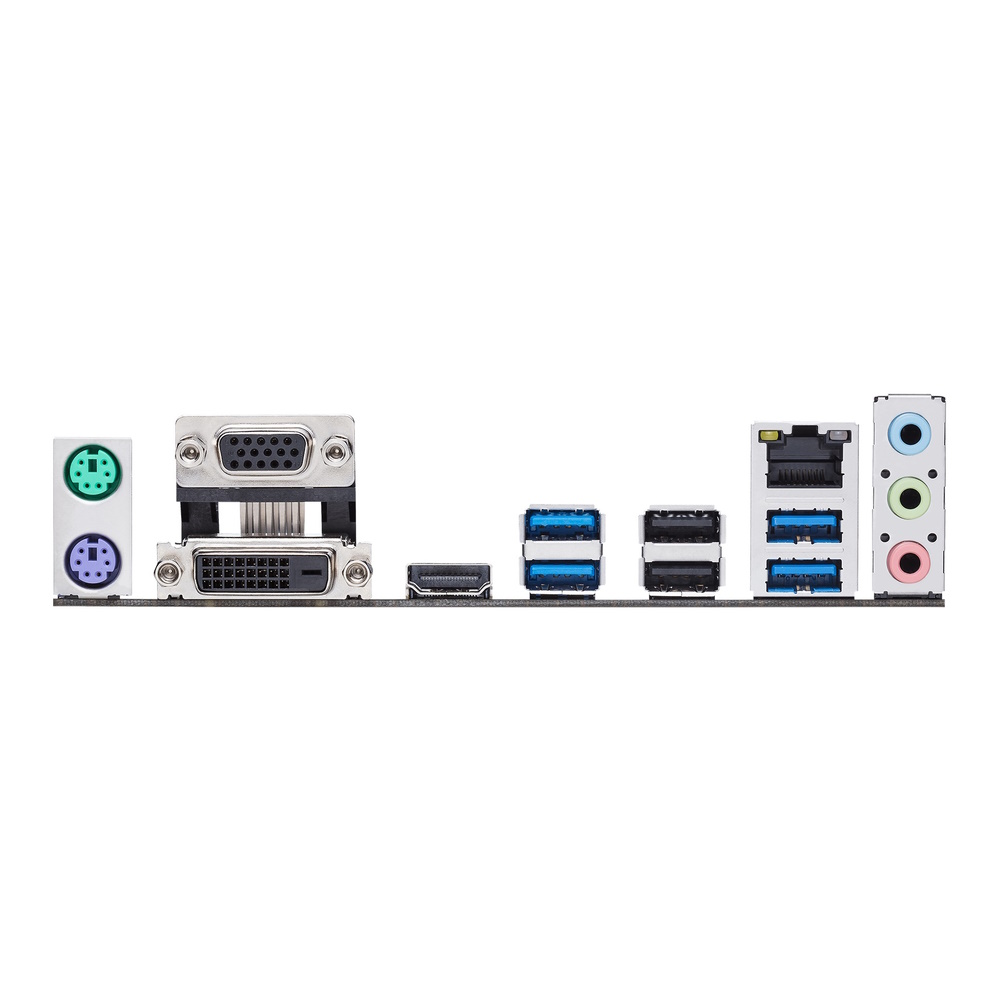

マザーボードの信頼性や耐久性を高める5つの機能を統合した「5X Protection III」を採用しています。さらに、D-Sub、DVI-D、HDMI 1.4b端子を備え、さまざまなモニターに対応します。
「ASUS EZ Flash 3」に対応し、BIOSアップデートが簡単に行えます。
ROG MAXIMUS Z790 FORMULA
ROG MAXIMUS Z790 HERO BTF
ROG MAXIMUS Z790 DARK HERO
ROG MAXIMUS Z790 HERO
ROG MAXIMUS Z790 APEX ENCORE
ROG STRIX Z790-E GAMING WIFI II
ROG STRIX Z790-F GAMING WIFI II
ROG STRIX Z790-A GAMING WIFI II
ROG STRIX Z790-I GAMING WIFI
TUF GAMING Z790-BTF WIFI
TUF GAMING Z790-PRO WIFI
TUF GAMING Z790-PLUS WIFI
TUF GAMING Z790-PLUS WIFI D4
TUF GAMING Z790-PLUS D4
PRIME Z790-A WIFI-CSM
PRIME Z790-P-CSM
PRIME Z790-P D4-CSM
ProArt Z790-CREATOR WIFI
Z790 GAMING WIFI7
Z790-AYW OC WIFI
Z790-AYW WIFI W
ROG STRIX B760-F GAMING WIFI
ROG STRIX B760-G GAMING WIFI
ROG STRIX B760-I GAMING WIFI
TUF GAMING B760M-BTF WIFI
TUF GAMING B760M-BTF WIFI D4
TUF GAMING B760-PLUS WIFI
TUF GAMING B760M-PLUS II
TUF GAMING B760-PLUS WIFI D4
TUF GAMING B760M-PLUS D4
PRIME B760-PLUS
PRIME B760-PLUS D4
PRIME B760M-A WIFI
PRIME B760M-A
PRIME B760M-A D4
PRIME B760M-K-CSM
PRIME B760M-K D4-CSM
PRO-B760M-C-CSM
ProArt B760-CREATOR
B760M-AYW WIFI
B760M-AYW WIFI D4
ROG Strix Z270I Gaming
MAXIMUS IX APEX
MAXIMUS IX HERO
MAXIMUS IX CODE
MAXIMUS IX FORMULA
TUF Z270 MARK 1
STRIX Z270G GAMING
STRIX Z270F GAMING
PRIME Z270M-PLUS
PRIME Z270-K
PRIME Z270-A
PRO WS W790E-SAGE SE
Pro WS W790-ACE
Pro WS C246-ACE
SABERTOOTH 990FX R3.0
J3455M-E
P10S-M/WS
P10S WS
Z10PE-D8 WS
PRIME N100I-D D4-CSM
PRO WS W680-ACE IPMI
P9D WS
ROG CROSSHAIR X670E HERO
ROG STRIX X670E-F GAMING WIFI
ROG STRIX X670E-A GAMING WIFI
ROG STRIX X670E-I GAMING WIFI
TUF GAMING X670E-PLUS WIFI
TUF GAMING X670E-PLUS
ProArt X670E-CREATOR WIFI
TUF GAMING B650-E WIFI
TUF GAMING B650M-E WIFI
TUF GAMING B650-PLUS WIFI
TUF GAMING B650M-PLUS
PRIME B650-PLUS-CSM
PRIME B650M-A II-CSM
ProArt B650-CREATOR
ROG-MATRIX-RTX4090-P24G-GAMING
ROG-STRIX-RTX4090-O24G-BTF-GAMING
ROG-STRIX-RTX4090-O24G-GAMING
ROG-STRIX-RTX4090-O24G-WHITE
TUF-RTX4090-O24G-OG-GAMING
TUF-RTX4090-24G-OG-GAMING
TUF-RTX4090-O24G-GAMING
ROG-STRIX-RTX4080S-O16G-GAMING
ROG-STRIX-RTX4080S-O16G-WHITE
TUF-RTX4080S-O16G-GAMING
TUF-RTX4080S-16G-GAMING
PROART-RTX4080S-O16G
RTX4080S-O16G-NOCTUA
ROG-STRIX-RTX4070TIS-O16G-GAMING
TUF-RTX4070TIS-O16G-BTF-WHITE
TUF-RTX4070TIS-O16G-WHITE-GAMING
TUF-RTX4070TIS-O16G-GAMING
TUF-RTX4070TIS-16G-GAMING
DUAL-RTX4070TIS-O16G
PROART-RTX4070TIS-O16G
ROG STRIX HELIOS WHITE EDITION
TUF GAMING GT501 WHITE EDITION
TUF Gaming GT301 Case
ROG Strix Helios
TUF GAMING GT302 ARGB
TUF Gaming GT502
TUF Gaming GT502 WHT
PA602 ProArt Case
TUF GAMING TR120 FAN ARGB
TUF GAMING TR120 FAN ARGB 3IN1
TUF GAMING TR120 FAN ARGB REVERSE
TUF GAMING TR120 FAN ARGB REVERSE 3IN1
TUF GAMING TF120 ARGB
TUF GAMING TF120 WHITE ARGB
TUF GAMING TF120 ARGB 3IN1
TUF GAMING TF120 WHITE ARGB 3IN1

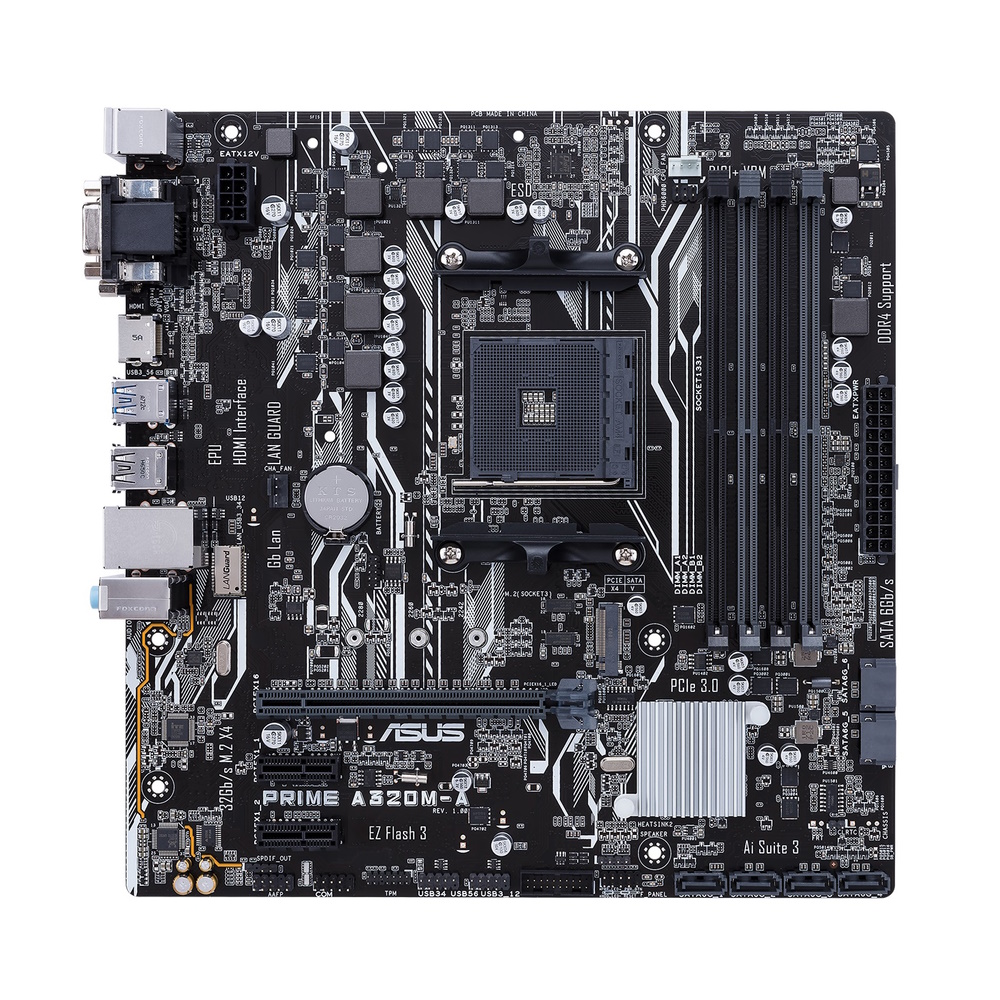

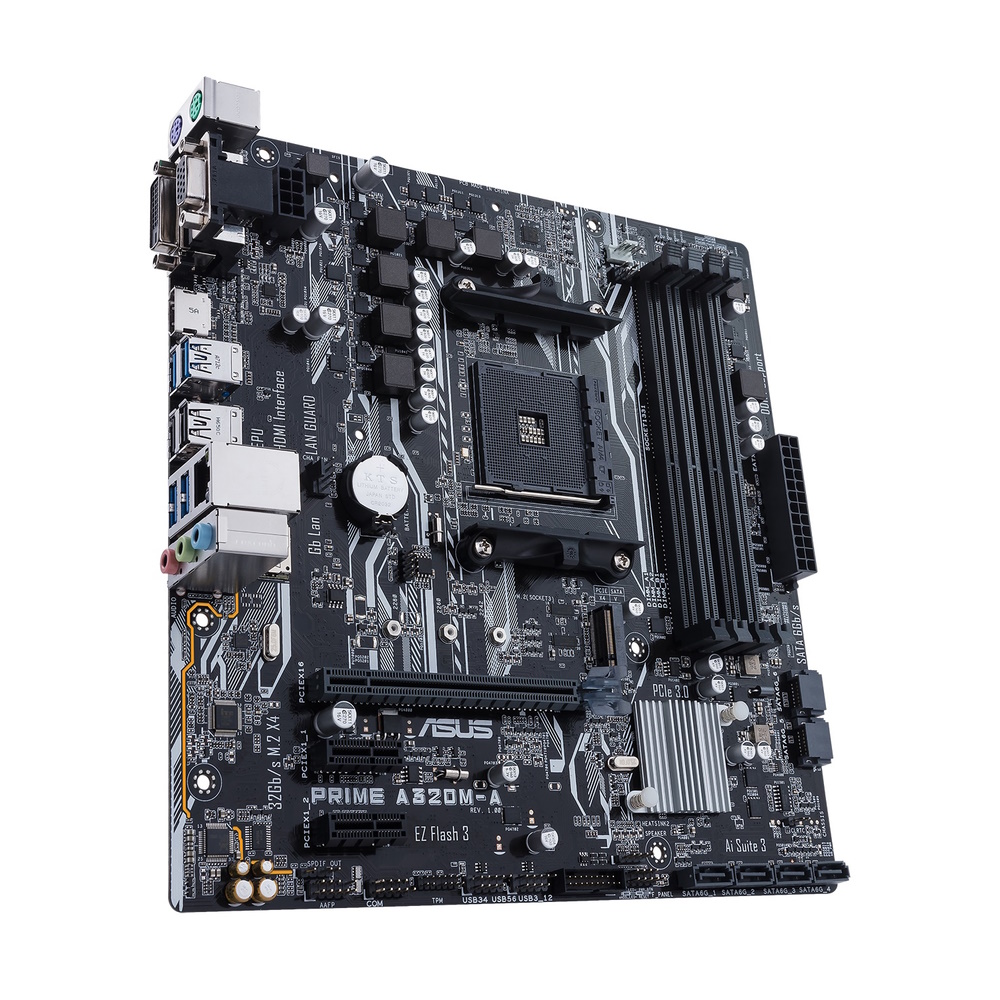

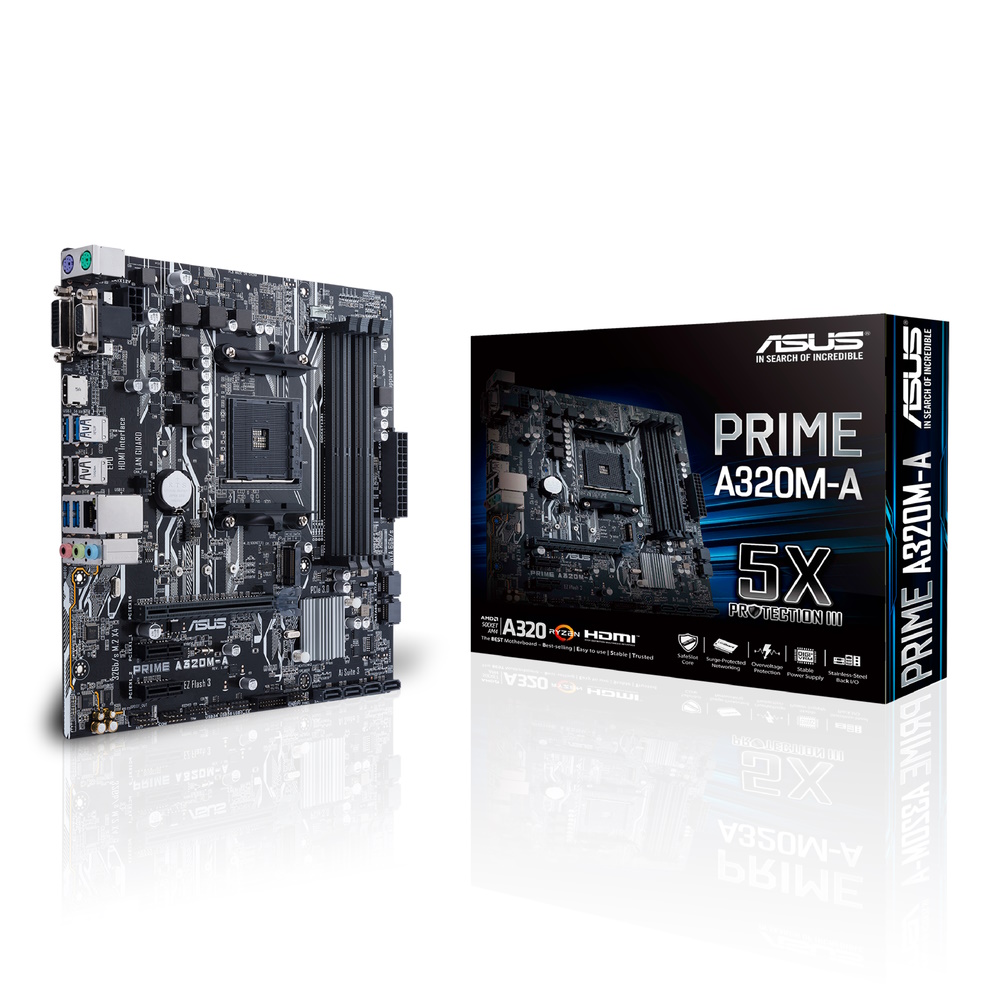

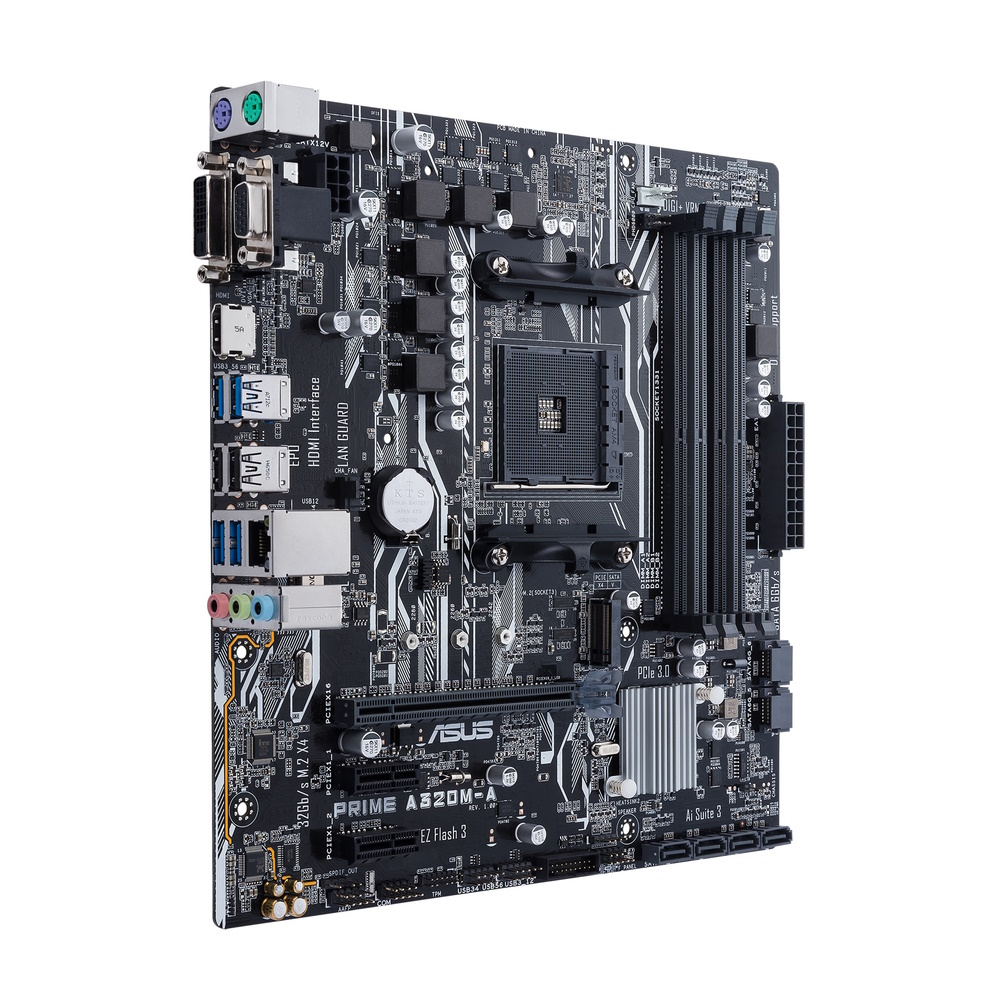

AMD A320チップセット搭載・Ryzen 5000シリーズ対応
「PRIME」MicroATXマザーボード
型番 | PRIME A320M-A |
---|---|
フォームファクター | MicroATX(244×240mm) |
チップセット | AMD A320 |
対応CPUソケット | AMD AM4 Socket |
対応CPU | AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list |
対応メモリー | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors 4 DIMM, Max. 64GB, DDR4- 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Memory *1 AMD 7th Generation A-Series/Athlon X4 Processors 4 DIMM, Max. 64GB, DDR4- 3200(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Memory デュアルチャンネル Memory Architecture ECC Memory (ECC model) support varies by CPU. 1* Due to the limitation of AMD Ryzen™ processors, memory frequencies higher than DDR4 2666 MHz are supported only when using one DIMM per channel. * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
拡張スロット | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors PCIe 3.0/2.0 x16 (x16 mode) × 1 *3 AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors PCIe 3.0/2.0 x16 (x8 mode) × 1 AMD A320 chipset PCIe 2.0 x1 × 2 3*The working speed of the PCIe 3.0/2.0 x16 slot varies by models. |
ストレージ | AMD A320 chipset : SATA 6Gb/s port(s) × 4, gray, Support Raid 0, 1, 10 AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors : SATA 6Gb/s por × 2, gray, AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*4 × 1 AMD 7th Generation A-Series/Athlon X4 Processors : M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*5 × 1 4*When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports. 5*When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports |
USB | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors : USB 3.1 Gen 1 port × 4 (4 at back panel, blue) AMD A320 chipset : USB 3.1 Gen 1 port × 2 (2 at mid-board) AMD A320 chipset : USB 2.0 port × 6 |
LAN | Realtek® RTL8111H, 1000BASE-T/100BASE-TX/10BASE-T × 1 |
映像出力 | Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU *2 Multi-VGA output support : HDMI/DVI/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB (for iGPU exclusively) 2*AMD Ryzen™ Processor does not support. |
オーディオ | Realtek® ALC887 8-Channel High Definition Audio CODEC |
OS | Windows® 10 64-bit |

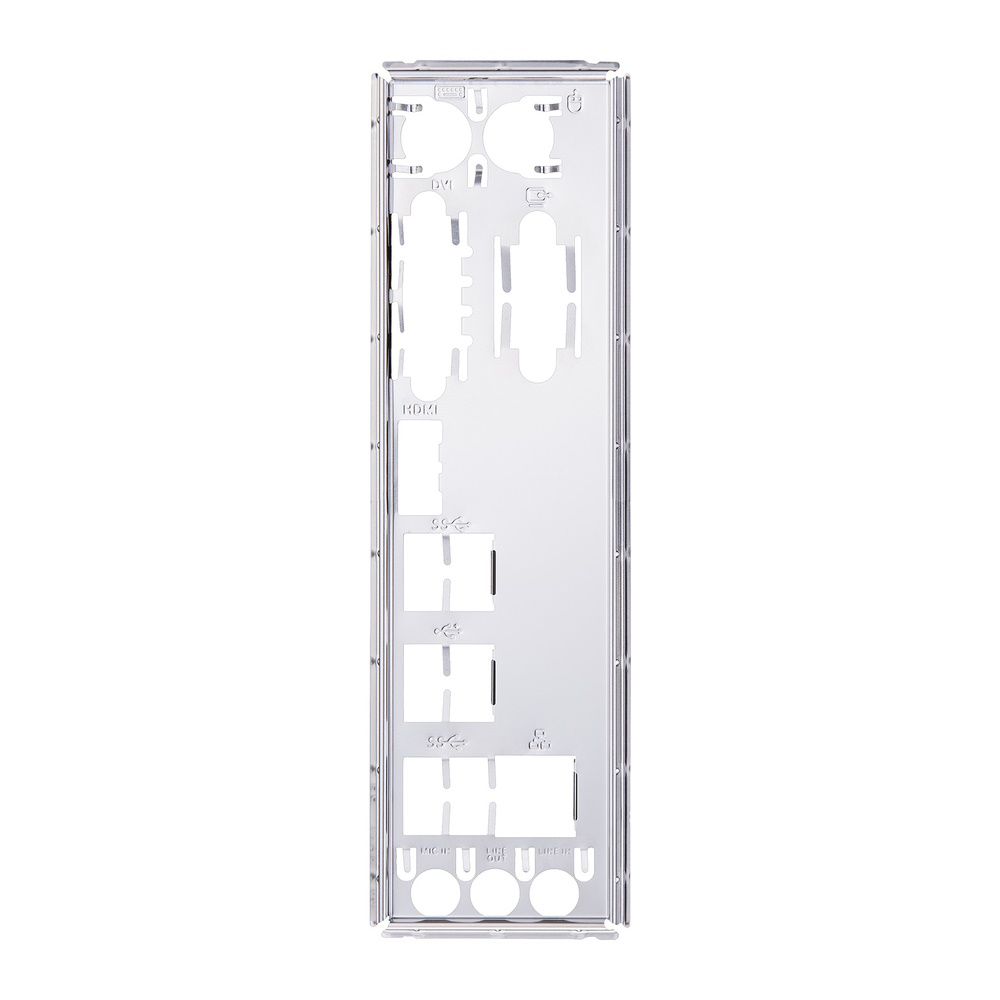

付属品 | User´s manual I/O Shield SATA 6Gb/s cable × 2 M.2 Screw Package × 1 Supporting DVD × 1 |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
