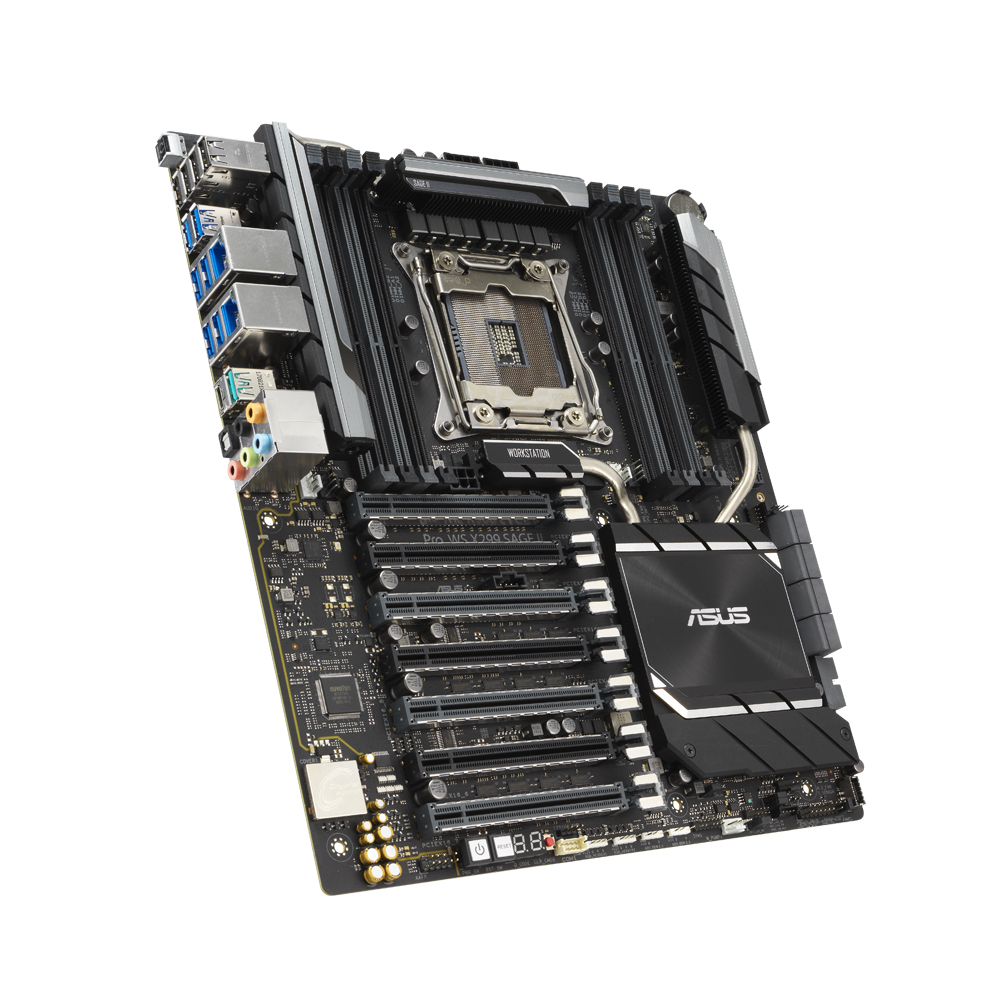

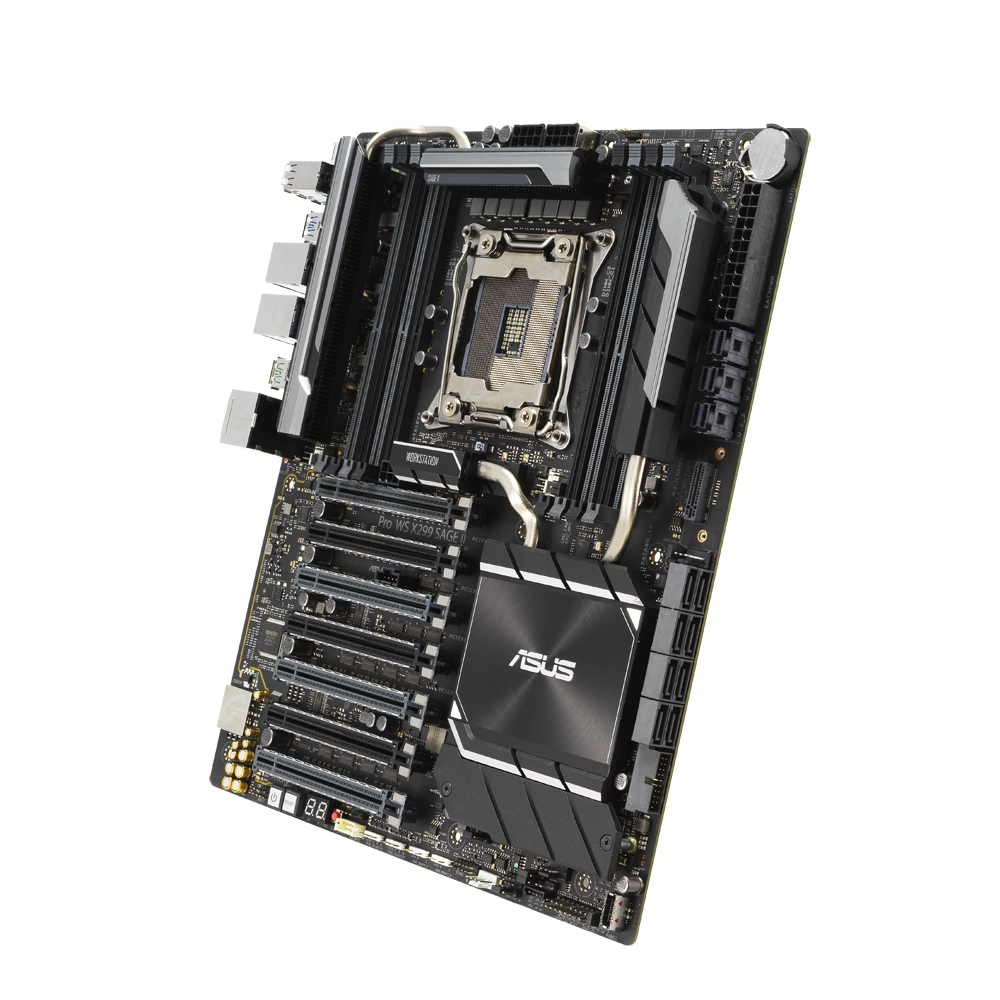

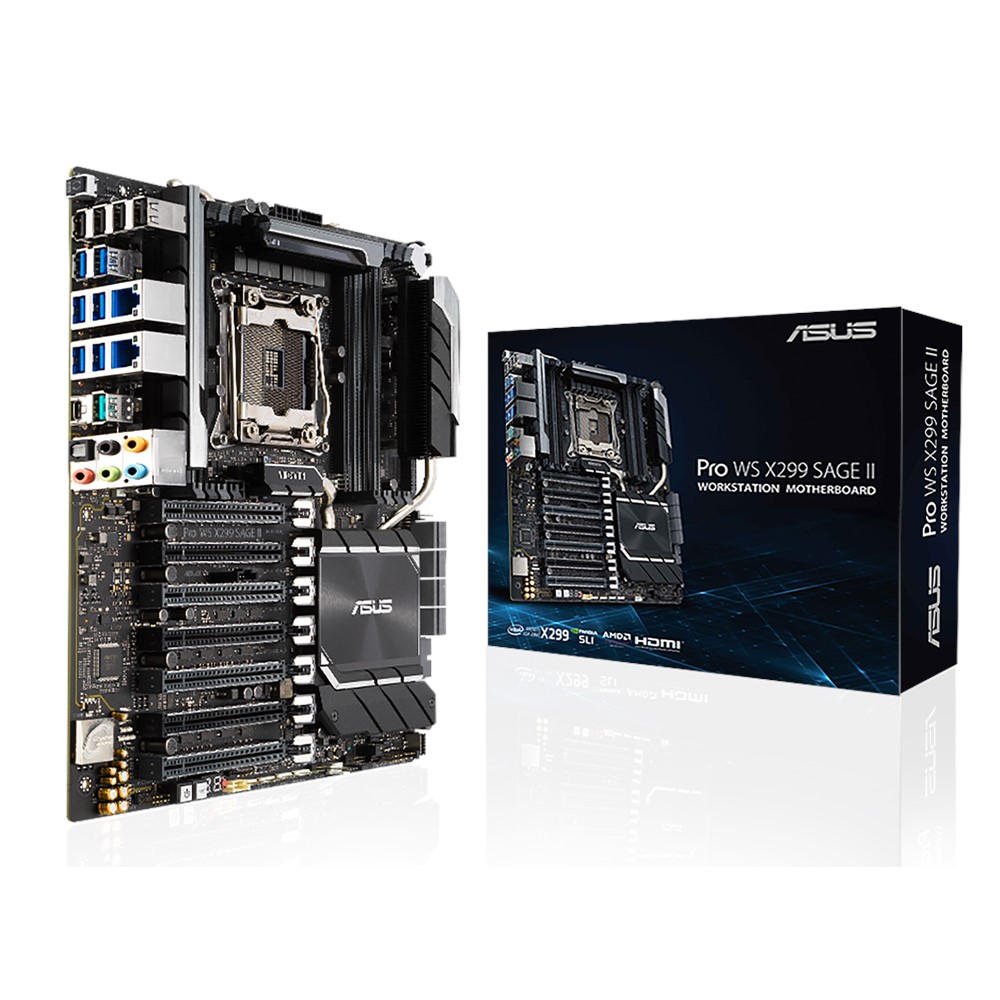

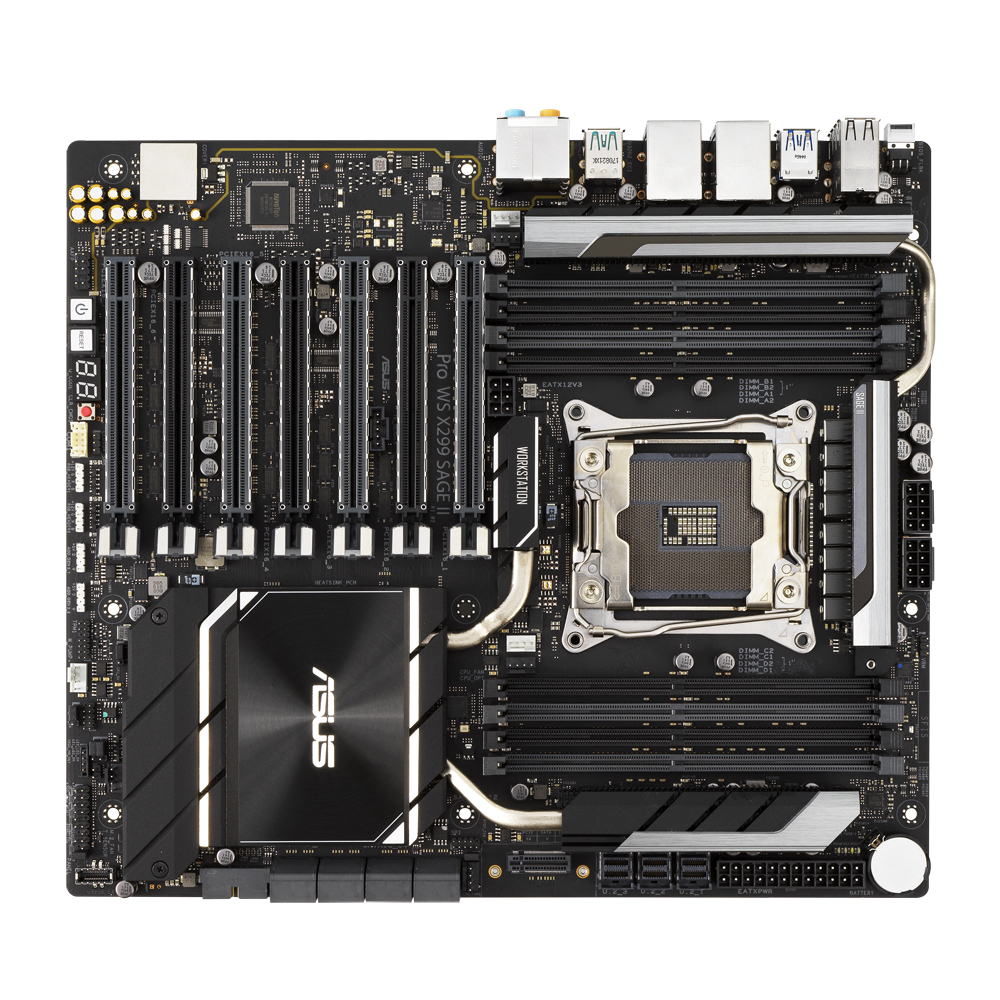

Pro WS X299 SAGE II

Pro WS X299 SAGE II

PCIe x16スロット7基、デュアル2.5G LANを備えたワークステーションマザーボード

・対応CPU : Intel Core X シリーズ
・対応ソケット : LGA2066
・チップセット : Intel X299 チップセット
・対応メモリ : DDR4-4266×8(最大256GB)
・拡張スロット : PCIe 3.0 x16×7
・ストレージ機能 : U.2×3, M.2×2, SATA 6Gb/s×8
・USB機能 : USB 3.1 Gen 2×3, USB 3.1 Gen 1×8、USB 2.0×4
・ネットワーク機能 : 2.5GBASE-T×2
・フォームファクター(サイズ): CEB(305mm×267mm)

ASUS Pro Workstation マザーボードは、AIトレーニング、ディープラーニング、アニメーション、3Dレンダリング、メディア制作のプロフェッショナル向けに設計されています。
拡張可能なグラフィックス、大容量ストレージ、優れた接続性、並外れたパフォーマンスと信頼性を備えたPro Workstation マザーボードは、
クリエーターにとって理想的なソリューションです。
各マザーボードに帯域外管理をサポートする集中管理ソフトウェアを搭載しているため、IT管理者にとっても効率的で費用対効果の高い選択肢となっています。







マルチGPUサポート

Pro WS X299 Sage IIは、最大4枚のデュアルスロットビデオカードに対応しています。また、NVIDIA®SLI™およびAMD CrossFire™4-way構成の両方をサポートしているので、NVIDIA®Quadroを含む最新のグラフィックテクノロジーを最大限に活用するマルチGPUセットアップが可能です。NVIDIA® Quadro® はPro WS X299 Sage IIを完璧に補完し、デザイン、モデリング、医学研究、処理集約型のシミュレーションおよびレンダリングアプリケーションに適したパフォーマンスを実現します。



Intelデュアル2.5Gイーサネット

Intelデュアル2.5Gイーサネットを2基搭載しておりデータスループットを高め、効率化が可能です。また、グラフィックス、映像制作など、極めて負荷の大きいアプリケーションで必要とされる高密度、高帯域幅、低遅延のアクセスレイヤネットワークにも対応しています。



優れたサーマルデザイン

Pro WS X299 Sage IIは、CPUスロットリングなしで最大限のパフォーマンスを実現するために、詳細設計されたサーマルデザインを備えています。メタルフィンアレイを搭載した効率的なVRMヒートシンクは、放熱の表面積を最大化します。また、ヒートシンクおよび空気流路内の接続ヒートパイプが組み合わさり、最も負担がかかるワークロードでも最適な冷却性能を保てます。



Fan Xpert 4

Fan Xpert 4は、CPUファンとケースファン、および液冷ポンプの回転速度を温度に応じて細かく制御できるファンコントロール機能です。PWMファンとDCファンの両方に対応しており、PWMファンに対しては、DC制御を組み合わせることで低回転時の制御精度を向上する、PWM/DCハイブリッド制御の「Extreme Quietモード」を使用できます。



ASUS Control Center

ASUS Control Center(ACC)は、サーバー、ワークステーション、デジタルサイネージなど、ASUSの製品を監視、制御するための一元化された統合IT管理プラットフォームです。ACCでは、リモートBIOSアップデート、モバイルデバイスによる複数システムの監視、ワンクリックでのソフトウェアアップデートと配布が可能で、ITインフラストラクチャのサーバー管理が簡単になります。
CPU Intel® Socket 2066 Core™ X-Series Processors
Supports Intel® Virtual RAID on CPU (VROC)
* Refer to www.asus.com for CPU support list
* The Intel® Turbo Boost Technology 3.0 Support Depends on the CPU types.
チップセット Intel® X299
メインメモリ Intel® Core™ X-series Processors (6-core above)
8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2933/2666/2400 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
マルチGPU対応 Supports NVIDIA® 4-Way SLI® Technology
Supports AMD 4-Way CrossFireX Technology
拡張スロット 7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) *1
ストレージ機能 Intel® X299 Chipset :
1 x M.2_1 socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*2
1 x M.2_2 socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
8 x SATA 6Gb/s port(s)
3 x U.2 connector*3
Support Raid 0, 1, 5, 10
Support Intel® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID
Supports Intel® Smart Response Technology
Intel® Rapid Storage Technology 15 support
Intel® Optane™ Memory Ready
Intel® Virtual RAID (VROC) support for CPU RAID
LAN機能 Intel® I225-LM
オーディオ機能 Realtek® S1200A 7.1-Channel High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-recording, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in)
Audio Feature :
- DTS Connect
- DTS Headphone:X
- DTS X®:Ultra
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Separate layer for left and right track, ensuring both sound deliver equal quality
USB機能 Intel® X299 Chipset :
8 x USB 3.2 Gen 1 port(s) (6 at back panel, , 2 at mid-board)
Intel® X299 Chipset :
4 x USB 2.0 port(s) (4 at back panel, )
ASMedia® USB 3.2 Gen 2 controller :
2 x USB 3.2 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM)
ASMedia® USB 3.2 Gen 2 controller :
1 x USB 3.2 Gen 2 port(s) (1 at mid-board)
独自機能 OC Design - ASUS PRO Clock II Technology
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App
TPU

Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
ASUS EPU :
- EPU
ASUS Digital Power Design :
- Industry leading Digital 8 Phase CPU Power Design
- Industry leading Digital 2 Phase DRAM Power Design
AURA :
- Aura RGB Strip Headers
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger+
- Crystal Sound 3
ASUS EZ DIY :
- ASUS CrashFree BIOS
- ASUS EZ Flash
- ASUS USB BIOS FlashBack™
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Cable
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

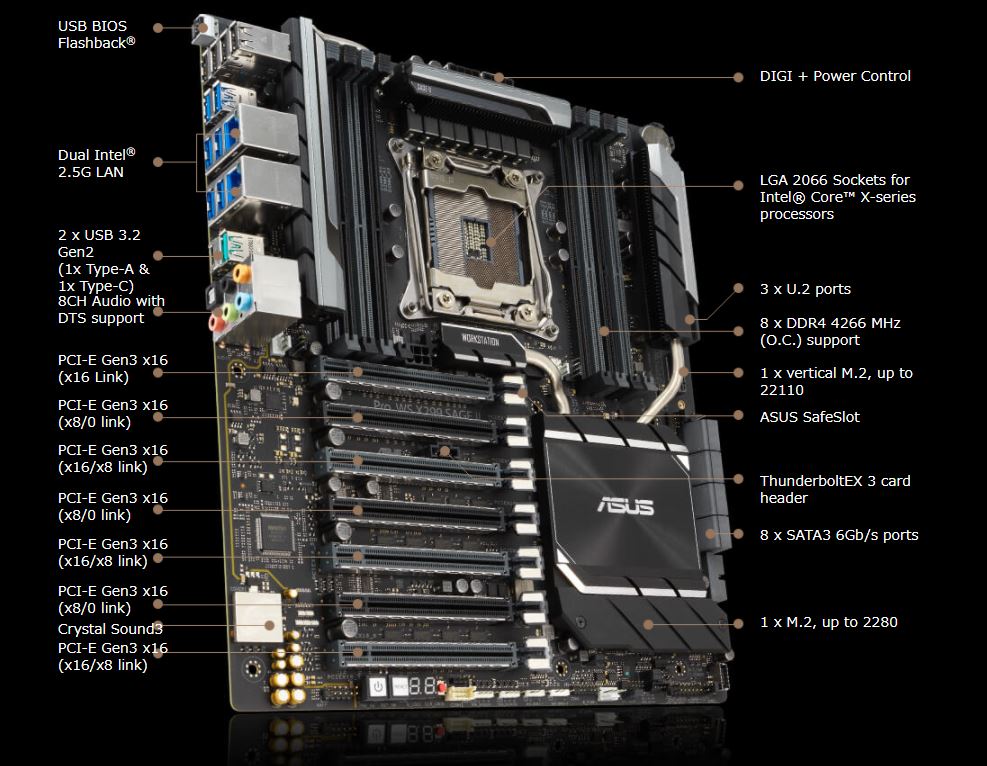

M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)
Thunderbolt 3 support

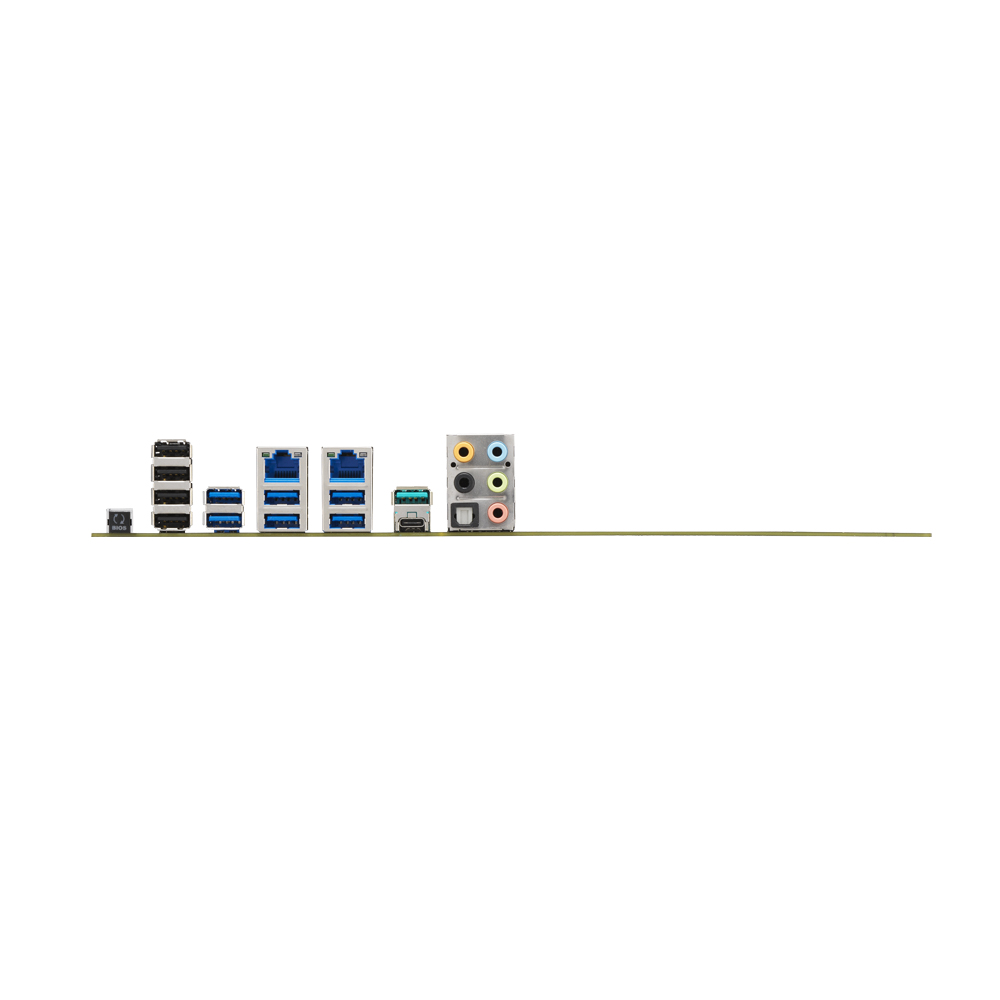

背面インターフェース 2 x LAN (RJ45) port(s)
1 x USB 3.2 Gen 2(teal blue)Type-A
1 x USB 3.2 Gen 2 (black)USB Type-CTM,
6 x USB 3.2 Gen 1 (blue)
4 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
1 x Optical S/PDIF out
1 x USB BIOS FlashBack™ Button(s)
1 x 8-channel Audio I/O
基板上インターフェース 2 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
2 x Addressable RGB header
1 x AAFP connector
2 x Aura RGB Strip Headers
1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
1 x TPM header
8 x SATA 6Gb/s connector(s)
1 x VROC_HW_Key
1 x AIO_PUMP connector
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
3 x U.2 connector
1 x System panel connector
1 x COM port header
1 x W_Pump+ Header
1 x Thermal sensor connector
1 x CPU_OV jumper
1 x M.2 Fan Header
1x 6-pin ATX 12V Power connector
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
3 x U.2 LED switch header
主な付属品 User's manual
Addressable LED extension cable
1 x Vertical M.2 bracket set
I/O Shield
1 x COM port cable(s)
8 x SATA 6Gb/s cable(s)
1 x M.2 screws
1 x Supporting DVD
1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
1 x Q-connector(s) (0 in 1)
OS Windows® 10 64-bit
Please find the latest OS support from https://www.asus.com/event/Server/OS_support_list/OS.html
フォームファクター(サイズW×D) CEB Form Factor
12 inch x 10.5 inch ( 30.5 cm x 26.7 cm )
質量 Color Box(3-in-1)
Net Weight: 5.55kg
Gross Weight: 8.06kg

Bulk Pack(5-in-1)
Net Weight: 6.99kg
Gross Weight: 9.37kg
動作環境 Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
その他 *Intel® VROC is supported via RSTe, and Intel® VROC_HW_key. VROC_HW_Key is purchased separately. NVMe RAID type and function will depend on the Intel® VROC_HW_key installed.

*1 Please refer to the block diagrams in the Appendix for more details in the manual.
*2 M.2 PCIE RAID support,M.2_1 socket shares bandwidth with SATA6G_1 port. When M.2_1 socket runs in
SATA mode, SATA6G_1 port will be disabled.
*3 The U.2 connectors are only supported on 48/44-Lane CPUs

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
