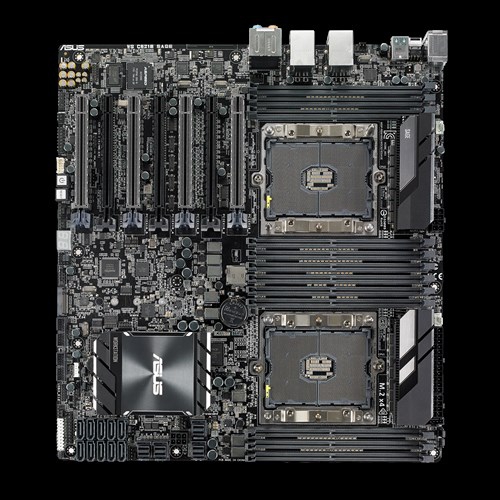

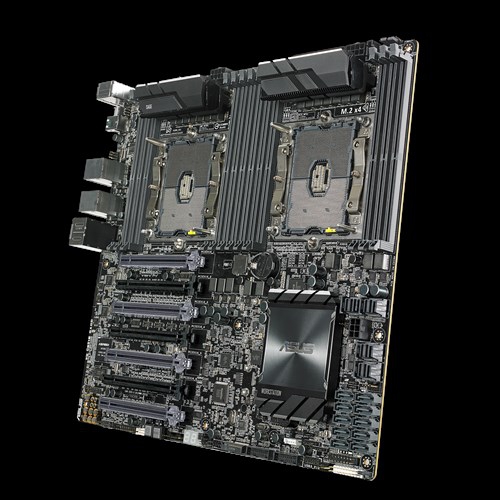

対応CPU | Dual Intel® Socket P (LGA 3647) for Intel® Xeon® Scalable Processors Family (205W) |
搭載チップセット | Build in Intel® C621 |
メインメモリ | 12 x DIMM, Max. 768GB, DDR4- 2666/2400 MHz RDIMM, LR-DIMM Memory * Please refer to ASUS AVL for the latest update. * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
グラフィックス機能 | Integrated Graphics Processor VGA port(Optional) - Supports VGA with max. resolution 1920 x 1200 @ 60 Hz Aspeed AST2500 with 64 MB VRAM |
マルチGPU対応 | Supports NVIDIA® 4-Way SLI™ Technology *1 Supports AMD 4-Way CrossFireX Technology *1 |
拡張スロット | 3 x PCIe 3.0 x16 (x16 mode) 2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8) 2 x PCIe 3.0 x16 (x8 mode) |
ストレージ機能 | Intel C621 Chipset : 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10 ASMedia SATA 6Gb/s controller : 2 x SATA 6Gb/s port(s), 4 x U.2 connector, 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode) |
LAN機能 | Intel® I210-AT, 1000BASE-T/100BASE-TX/10BASE-T×2 |
オーディオ機能 | Realtek® S1220A 7.1-Channel High Definition Audio CODEC *2 - Power pre-regulator reduces power input noise to ensure consistent performance - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality SNR stereo playback output and 113 dB SNR recording input (Line-in) - Front panel audio connector (AAFP) - Supports up to 32-Bit/192kHz playback Audio Feature : - DTS Connect - DTS Headphone:X - Optical S/PDIF out port(s) at back panel - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs |
USB機能 | ASMedia® USB 3.1 Gen 2 controller : 2 x USB port(s) (2 at back panel, , Type-A + USB Type-CTM) Intel® C621 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board) Intel® C621 Chipset : 4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board) |
Workstation Feature | ProCool Power Connector USB BIOS Flashback ASUS PIKE SAS upgrade kit*3 |
独自機能 | Gamer's Guardian: - DIGI+ VRM - SafeSlot ASUS Digital Power Design : - Industry leading Digital 7 + 1 Phase CPU Power Design - Industry leading Digital 2 Phase DRAM Power Design ASUS Exclusive Features : - Front Panel USB 3.0 Support ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-DIMM M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2) |

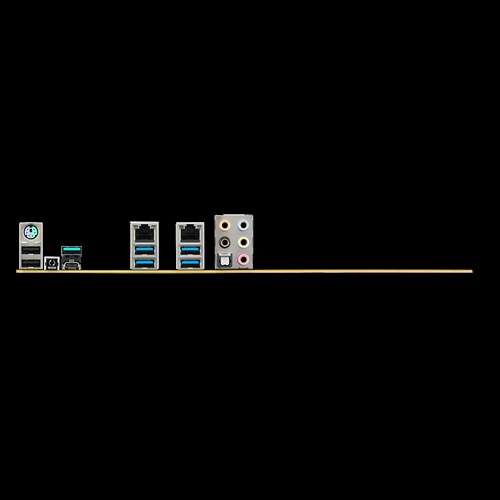

背面インターフェース | 1 x PS/2 keyboard/mouse combo port(s) 2 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 *4 4 x USB 3.1 Gen 1 , 4 x USB 2.0 1 x Optical S/PDIF out 1 x USB BIOS Flashback Button(s) 1 x 8-channel Audio I/O |
基板上インターフェース | 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 1 x TPM header 1 x COM port(s) connector(s) 10 x SATA 6Gb/s connector(s) 1 x VROC_HW_Key 2 x CPU Fan connector(s) (2 x 4 -pin) 7 x Chassis Fan connector(s) *5 2 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x VGA connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x AUX panel header(s) 1 x SMBus header(s) 1 x 6-pin EATX 12V_3 Power connector 1 x System panel connector 4 x U.2 Connector (support U.2 NVMe device) |
フォームファクター(サイズW×D) | EEB Form Factor 12 inch x 13 inch ( 30.5 cm x 33 cm ) |
その他 | * Dual Intel® Socket P/LGA 3647 (Square) *1 Actual number of multi-graphic support differes per Vendors' graphic cards. Please check with vendor beforehand. *2 Due to limitation in HDA bandwidth, 32-Bit/192kHz is not supported for 8-channel audio. 32-Bit/192kHz is only available under Windows 10 *3 Please check AVL list for supported add on card *4 1 x Type A, 1 x Type C *5 5 x Front, 2 x Rear |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
