Fan Xpert 2+: 究極の冷却と静音性を実現する柔軟なコントロール、 ゲーミング仕様のGPU温度検出機能を搭載
超高速の接続性: USB 3.1 Gen 2、ネイティブM.2に対応
ASUS Aura Syncヘッダー: RGB LEDストリップ用のオンボードコネクターを備え、Aura Sync対応ハードウェアの豊富なラインナップにより手軽にシンクロが可能
5X Protection III: 複数のハードウェアプロテクションの組合せによる絶対的な保護
対応CPU | AMD AM4 Socket AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation Processors |
搭載チップセット | AMD B450 |
メインメモリ | AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors 4 x DIMM, Max. 64GB, DDR4- 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory デュアルチャンネル Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
グラフィックス機能 | Integrated in the AMD Ryzen with Radeon Vega Graphics Processors Multi-VGA output support : HDMI/DVI-D/D-Sub ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz |
拡張スロット | AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen with Radeon Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD B450 chipset 2 x PCIe 2.0 x1 |
ストレージ機能 | AMD B450 chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors : 2 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 |
LAN機能 | Realtek RTL8111H, 1000BASE-T/100BASE-TX/10BASE-T×1 ASUS LAN Guard |
オーディオ機能 | Realtek ALC887 8-Channel High Definition Audio CODEC Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
USB機能 | AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD B450 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, ) AMD B450 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD B450 chipset : 4 x USB 2.0/1.1 port(s) (4 at mid-board) |
独自機能 | ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 2+ ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM |

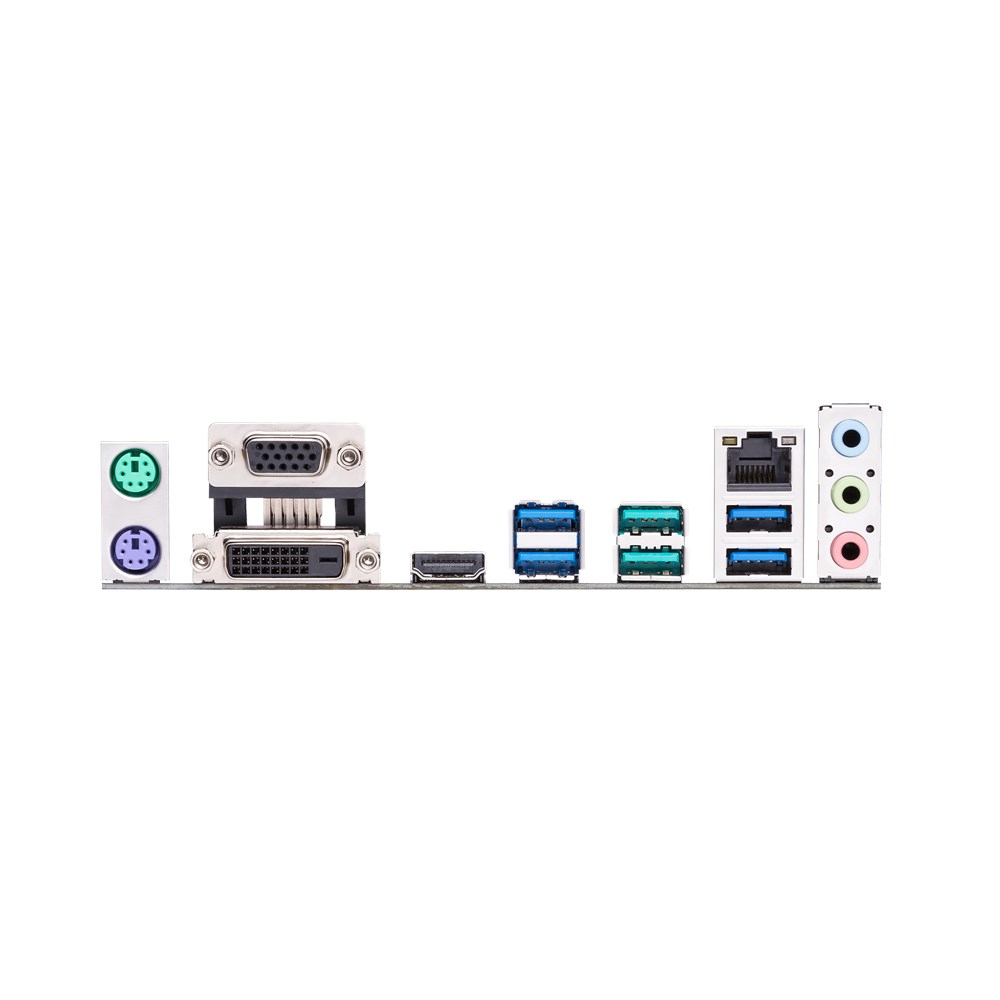

背面インターフェース | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 4 x USB 3.1 Gen 1 , 3 x Audio jack(s) |

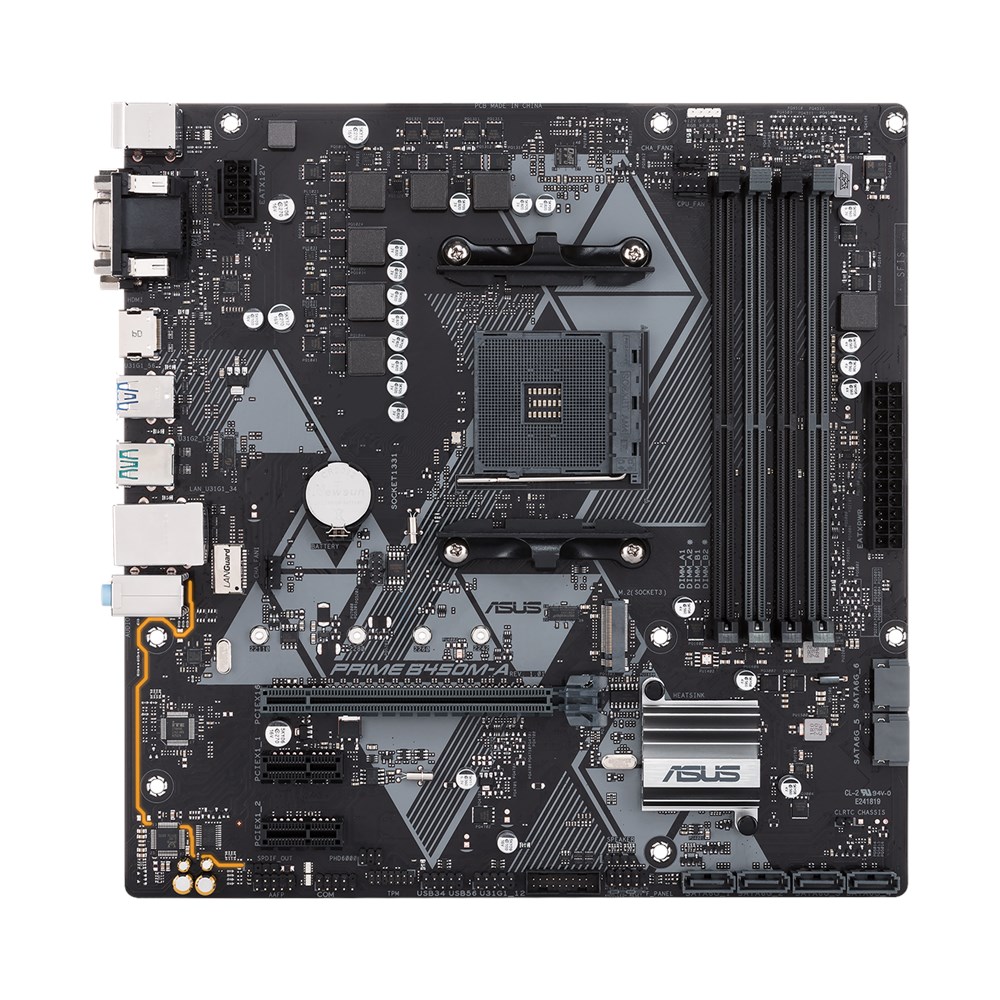

基板上インターフェース | 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector |

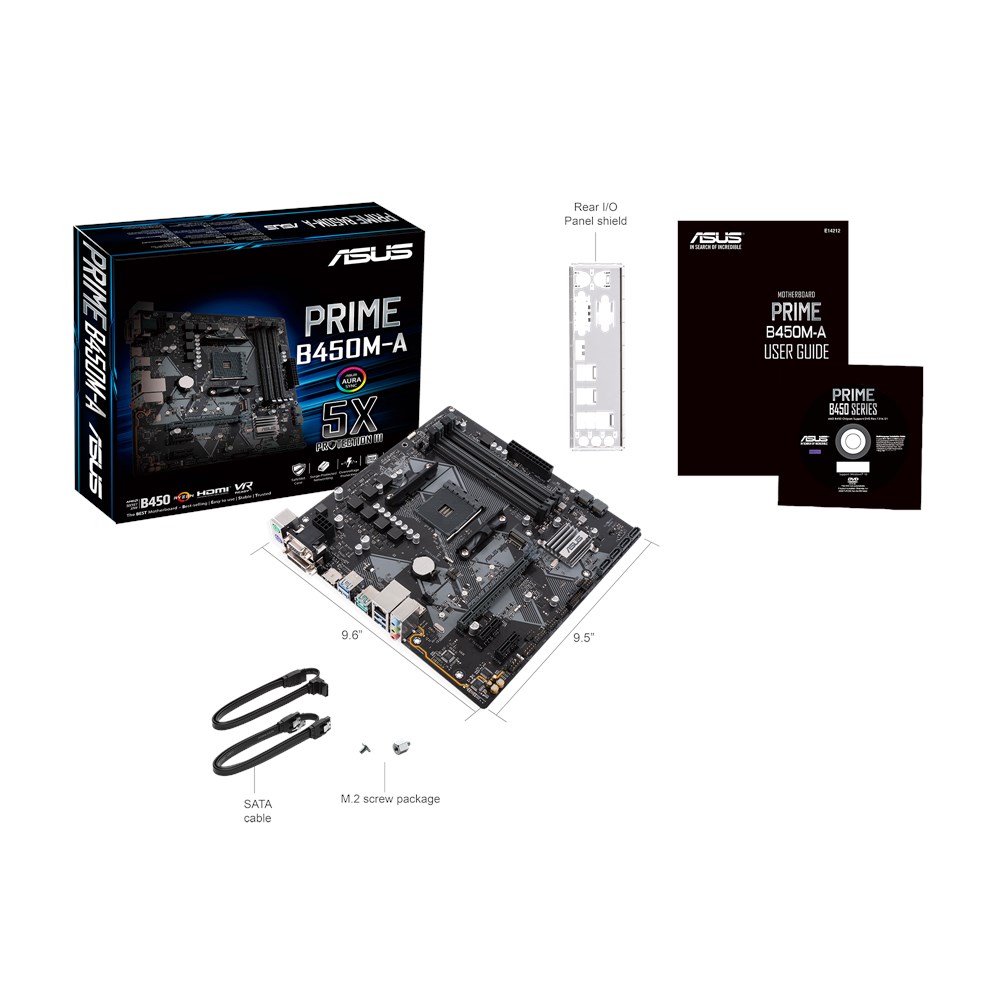

主な付属品 | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD |
BIOS機能 | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control |
OS | Windows 10 64-bit |
フォームファクター(サイズW×D) | mATX Form Factor 9.6 inch x 9.5 inch ( 24.4 cm x 24 cm ) |
その他 | The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed. |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
