CPU | AM4 socket for AMD Ryzen?/7th Generation A-series/Athlon? Processors Supports CPU up to 8 cores* * Due to CPU limitation, CPU cores supported varies by processor. |
Chipset | AMD B350 Chipset |
Memory | AMD Ryzen? Processors 4 x DIMMs, max. 64GB, DDR4 2666/2400/2133 MHz, ECC and non-ECC,un-buffered memory AMD 7th Generation A-series/Athlon? Processors 4 x DIMMs, max. 64GB, DDR4 2400/2133 MHz, non-ECC,un-buffered memory Dual Channel memory architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
Expansion Slots | AMD Ryzen? Processors 1 x PCI Express 3.0/2.0 x16 slot(max.@x16 mode) AMD 7th Generation A-series/Athlon? Processors 1 x PCI Express 3.0/2.0 x16 slot(max.@x8 mode) AMD?B350 Chipset: 1 x PCI Express 2.0 x16 slot(max.@x4 mode) * 2 x PCI Express 2.0 x1 slots 2 x PCI slots *PCIeX16_2 slot shares bandwidth with PCIeX1_1 and PCIeX1_2. |
VGA | Integrated AMD Radeon? R Series Graphics in the 7th Generation A-Series APU Multi-VGA output support: HDMI, DVI-D, D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz - Supports DVI-D with max. resolution up to 1920 x 1200 @60Hz - Supports D-Sub with max. resolution up to 1920 x 1200 @60Hz - Maximum shared memory of 2048 MB |
Multi-GPU support | Supports AMD CrossFireX? Technology - 6 x Serial ATA 6.0 Gb/s connectors with RAID 0, RAID 1 and RAID 10 support AMD Ryzen? Processors - 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes)storage devices support* *When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports AMD 7th Generation A-series/Athlon? Processors - 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x2 and SATA modes)storage devices support* *When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports |
LAN | Realtek? 8111H Gigabit LAN Controller |
Audio | Realtek? ALC 887-VD2 8-Channel High Definition Audio CODEC *Use a chassis with HD audio module in the front panel to support an 8-channel audio output. |
USB | AMD Ryzen?/7th Generation A-series/Athlon? Processors - 4 x USB 3.0 ports (4 ports at back panel) AMD?B350 Chipset: - 2 x USB 3.1 ports (2 ports at back) - 2 x USB 3.0/2.0 ports (2 ports at mid-board) - 6 x USB 2.0/1.1 ports (2 ports at back; 4 ports at mid-board) |
ASUS Unique Features | Dependable Stability ASUS 5X PROTECTION III - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design Superb performance UEFI BIOS - Most advanced options with fast response time Easy PC DIY Safe motherboard mounting - Component-free areas to minimize damage risk Q-Design - ASUS Q-DIMM - ASUS Q-Slot UEFI BIOS EZ Mode - featuring friendly graphics user interface - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 |
ASUS Quiet Thermal Solution | Quiet Thermal Design: - Stylish Fanless Design: MOS Heat-sink & Chipset Heat-sink solution - ASUS Fan Xpert 2+ |

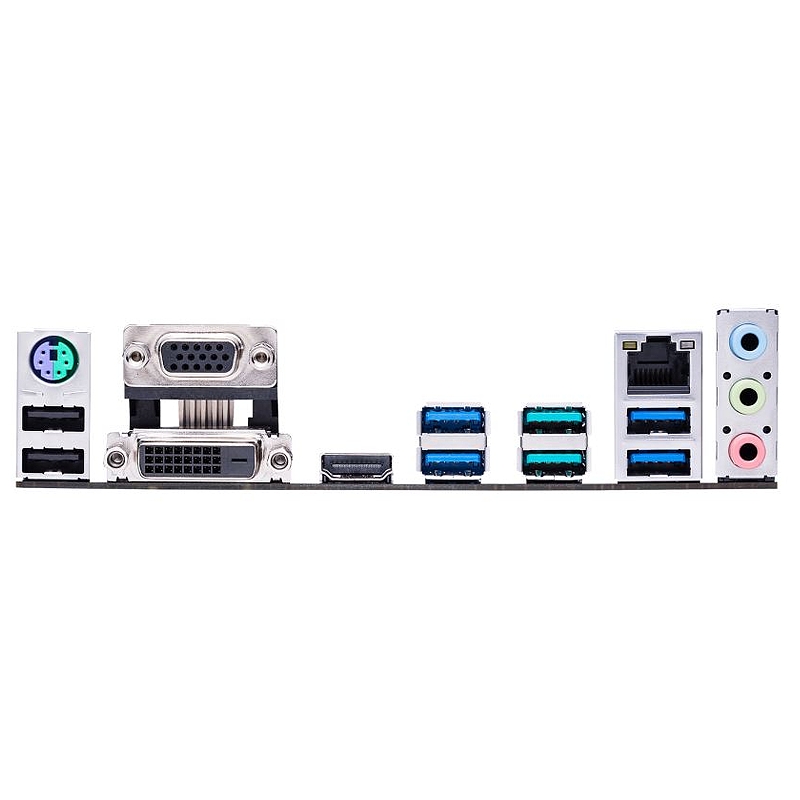

Back Panel I/O Ports | 1 x PS/2 keyboard/mouse combo port 1 x HDMI port 1 x DVI-D port 1 x D-Sub port 1 x LAN (RJ-45) port 2 x USB 3.1 ports 4 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 3 x Audio jacks support 8-channel audio output 1 x USB 3.0 connector supports additional 2 USB 3.0 ports |
Internal I/O Connectors | 2 x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1 ports 6 x SATA 6.0Gb/s connectors 1 x M.2 Socket 3 for M Key, type 2242/2260/2280/22110 devices,(both SATA & PCIE mode) 1 x COM connector 1 x CPU Fan connector 1 x Fan RGB header 2 x Chassis Fan connectors (Support DC & PWM mode) 1 x Front panel audio connector 1 x 24-pin EATX Power connector 1 x 8-pin ATX 12V Power connector 1 x 2-pin Clear CMOS 1 x S/PDIF out header 1 x System Panel connector |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control |
Manageability | WfM 2.0, DMI 3.0, WOL by PME, PXE |
Accessories | 2 x Serial ATA 6.0Gb/s cables 1 x I/O shield 1 x M.2 screw package 1 x User's manual |
Support DVD | Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version) |
Operating System Support | Windows? 10 (64-bit) |
Form Factor | ATX Form Factor, 12" x 9.35" (30.5 cm x 23.7 cm) |
