CPU | AM4 socket for AMD Ryzen?/7th Generation A-series/Athlon? Processors Supports CPU up to 8 cores* * Due to CPU limitation, CPU cores supported varies by processor. |
Chipset | AMD X370 Chipset |
Memory | AMD Ryzen? Processors 4 x DIMM, max. 64GB, DDR4 2666/2400/2133 MHz, ECC and non-ECC, un-buffered memory AMD 7th Generation A-series/Athlon? Processors 4 x DIMM, max. 64GB, DDR4 2400/2133 MHz, non-ECC, un-buffered memory Dual channel memory architecture * Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
Expansion Slots | AMD Ryzen? Processors 2 x PCI Express 3.0/2.0 x16 slots (single at x16 or dual at x8/x8 mode) AMD 7th Generation A-series/Athlon? Processors 1 x PCI Express 3.0/2.0 x16 slots (single at x8 ) AMD X370 chipset 1 x PCI Express 2.0 x16 slot (max. at x4 mode)* 3 x PCI Express 2.0 x1 slots *PCIeX16_3 slot shares bandwidth with PCIeX1_1 and PCIeX1_3. |
VGA | Integrated AMD Radeon? R Series Graphics in the 7th Generation A-Series APU Multi-VGA output support: DisplayPort/HDMI ports Supports DisplayPort 1.2 with max. resolution 4096 x 2160@60Hz Supports HDMI 1.4b with max. resolution 4096 x 2160 @24Hz / 2560 x 1600 @60Hz Maximum shared memory of 2048MB |
Multi-GPU support | AMD Ryzen? Processors Supports NVIDIA? 2-Way/Quad-GPU SLI? Technology Supports AMD? 3-Way/Quad-GPU CrossFireX? Technology AMD 7th Generation A-series/Athlon? Processors Supports AMD? 2-Way/Quad-GPU CrossFireX? Technology |
Storage | AMD Ryzen? Processors - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD 7th Generation A-series/Athlon? Processors - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110(PCIE 3.0 x2 and SATA modes) storage devices support AMD X370 chipset with RAID 0, 1, 10 support - 8 x SATA 6.0 Gb/s ports (gray) |
LAN | Intel? I211AT Gigabit LAN |
Audio | Realtek? S1220A 8-channel high definition audio CODEC - Audio Shielding: Ensures precision analog/digital separation and greatly reduces multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity. - Supports jack-detection, multi-streaming, front panel jack-retasking - High quality 120dB SNR stereo playback output (Line-out@back) & 113dB SNR input (Line-in) support - Optical S/PDIF out port at back I/O |
USB | AMD Ryzen?/7th Generation A-series/Athlon? Processors - 4 x USB 3.0/2.0 ports (4 ports at back panel[blue]) AMD X370 Chipset - 1 x USB 3.1/3.0/2.0 front panel connector - 4 x USB 3.0/2.0 ports (2 ports at mid-board; 2 ports at back panel,Type-A[blue] and Type-C) - 4 x USB 2.0/1.1 ports at mid-board ASMedia USB 3.1 controllers - 2 x USB 3.1/3.0/2.0 ports (2 ports at back panel[teal blue]) |
ASUS Exclusive Features | Performance Optimization 5-Way Optimization - Whole system optimization with a single click! Perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App DIGI+ VRM - 6+4 Phase digital power design TPU - Auto Tuning EPU - EPU Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control Turbo App featuring system performance tuning, network priority, and audio scene configuration for selected applications. Gaming Scenario AURA - Bright up your Build Audio Features - Audio that roars on the battlefield EZ DIY UEFI BIOS EZ Mode - featuring friendly graphics user interface - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 Q-Design - ASUS Q-Shield - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector |
ASUS Special Features | Special Features: ASUS SafeSlot - Protect your graphics card Investment ASUS 5X Protection III - ASUS SafeSlot Core - Fortified PCIe with solid soldering - ASUS LANGuard - Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DIGI+ VRM - 6+4 Phase digital power design - ASUS DRAM Overcurrent Protection: Enhanced DRAM overcurrent protection - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS ESD Guards - Enhanced ESD protection - AI Suite 3 - Ai Charger |
ASUS Quiet Thermal Solution | Quiet Thermal Design: - ASUS Fan Xpert 4 - Stylish Fanless Design: Chipset Heat-sink & MOS Heat-sink solution |
ASUS Exclusive Overclocking Features | Precision Tweaker 2: - vVDDCR CPU: Adjustable CPU voltage at 0.00625V increment - vVDDCR SOC: Adjustable CPU/NB voltage at 0.00625V increment - vDRAM Bus: Adjustable DRAM voltage at 0.005V increment Overclocking Protection: ?- ASUS C.P.R.(CPU Parameter Recall) |

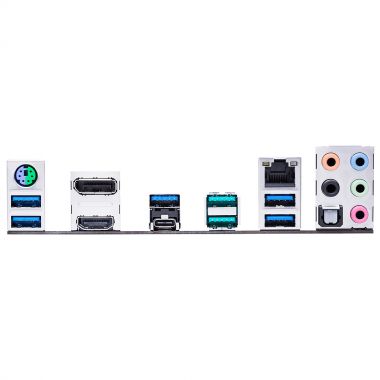

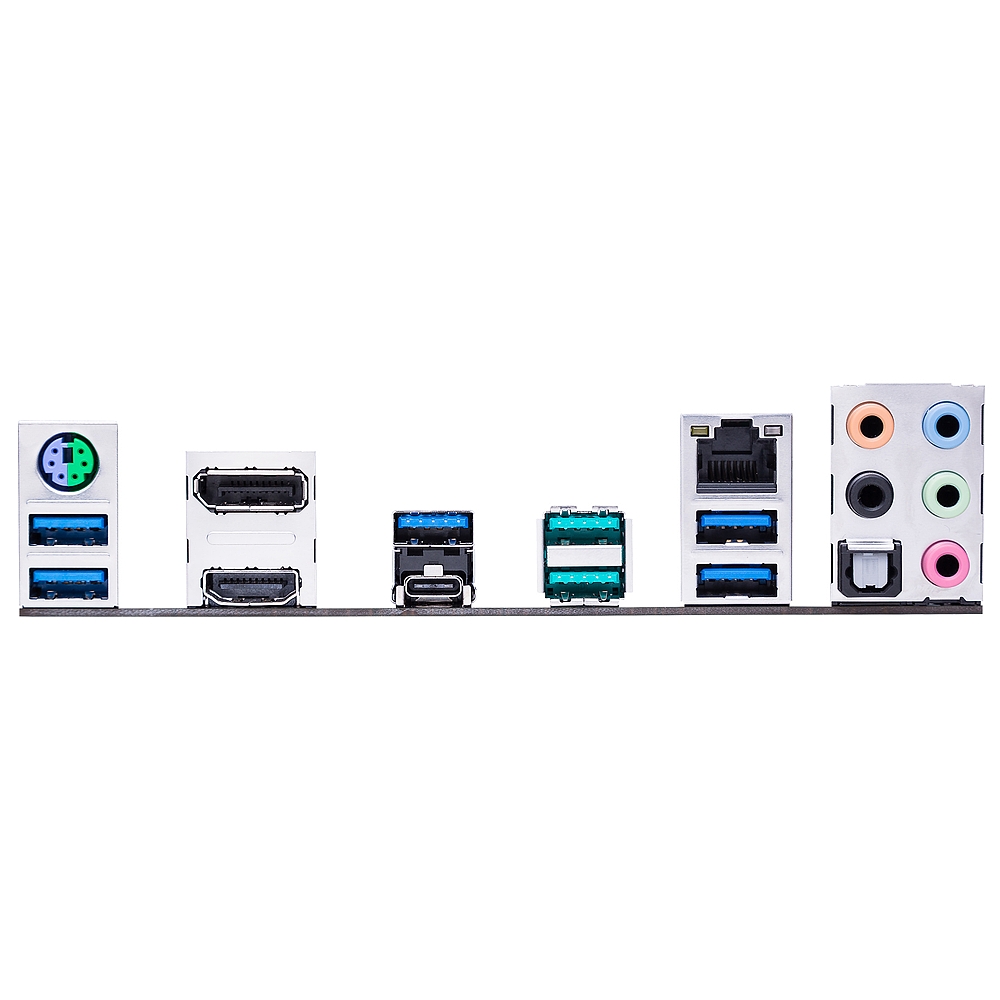

Back Panel I/O Ports | 1 x PS/2 Keyboard/Mouse Combo port 1 x DisplayPort 1 x HDMI port 1 x Intel LAN (RJ45) port 2 x USB 3.1/3.0/2.0 ports (teal blue, Type-A) 1 x USB 3.0/2.0 ports (Type-C) 5 x USB 3.0/2.0 ports (blue,Type-A) 1 x Optical S/PDIF out 5 x Audio Jacks(Line in,Front Speaker Out,Mic in,Center/Subwoofer,Rear Speaker Out) |
Internal I/O Connectors | 1 x USB 3.1/3.0/2.0 front panel connector 1 x USB 3.0/2.0 connector support additional 2 USB ports 2 x USB 2.0/1/1 connectors support additional 4 USB ports 1 x M.2 Socket 3 for M Key, type 2242/2260/2280/22110 devices support, (both SATA & PCIE mode) 8 x SATA 6.0Gb/s connectors (gray) 1 x CPU Fan header (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) CPU coolers control with auto detection support 1 x CPU OPT Fan header (4-pin) 1 x AIO Pump header (4-pin) 1 x W_PUMP+ header (4-pin) 2 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control with auto detection support 1 x Aura RGB header 1 x Front panel audio connector (AAFP) 1 x TPM connector 1 x COM connector 1 x 24-pin EATX Power connector 1 x 8-pin EATX 12V Power connector 1 x System Panel 1 x Clear CMOS header |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
Manageability | WfM 2.0, DMI 3.0, WOL by PME, PXE |
Accessories | 4 x Serial ATA 6.0Gb/s cables 1 x SLI HB BRIDGE(2-WAY-M) 1 x ASUS Q-Shield 1 x Q-connector 1 x Support DVD 1 x M.2 screw package 1 x user's manual |
Support DVD | Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) |
Operating System Support | Windows? 10 64-bit |
Form Factor | ATX Form Factor, 12”x 9.6” (30.5cm x 24.4cm) |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
