- LGA1151対応
- Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
- Intel B250チップセット搭載
- DDR4メモリ×4枚(最大64GB)対応
- HDMI 1.4b×1、DVI-D×1、D-Sub 15ピン×1
- PCIe 3.0 x16×1、PCIe 3.0 x1×2
- M.2×2、SATA 6Gb/s×6
- USB 3.0×4、USB 2.0×6、USB 5Gb/s Type-C×1
- 1000BASE-T×1
- デジタル電源回路「DIGI+ VRM」
- 省電力を実現するカスタムチップ「EPU」
- 高性能ファンコントロール機能「Fan Xpert 2+」
- ATXフォームファクター
対応CPU | Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. |
搭載チップセット | Intel B250 |
対応メモリ | 4 x DIMM, Max. 64GB, DDR4- 2133 MHz Non-ECC, Un-buffered Memory *1 Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * The maximum memory frequency supported varies by processor. * Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. ** Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel processors will run at the maximum transfer rate of DDR4 2133MHz. |
グラフィックス機能 | Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support : HDMI/DVI-D/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / x @ Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider Supports up to 3 displays simultaneously |
マルチGPU対応 | Supports AMD Quad-GPU CrossFireX Technology |
拡張スロット | 1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 3.0/2.0 x1 |
ストレージ機能 | Intel B250 Chipset : 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)* 6 x SATA 6Gb/s port(s), gray |
LAN機能 | Realtek RTL8111H, 1000BASE-T/100BASE-TX/10BASE-T×1 |
オーディオ機能 | Realtek ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
USB機能 | Intel B250 Chipset : 6 x USB 2.0 port(s) (2 at back panel, black, Type-A, 4 at mid-board) Intel B250 Chipset : 4 x USB 3.0 port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel B250 Chipset : 1 x USB 5Gb/s port(s) port(s) (1 at back panel, black, Type-C, Reversible, Support 3A power output) |
独自機能 | ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: Phase digital power design ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 2+ ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics : - 3D printing friendly Media Streamer |
動作対応OS | Windows 10 64ビット Windows 8.1 64ビット Windows 7 64ビット/32ビット * |

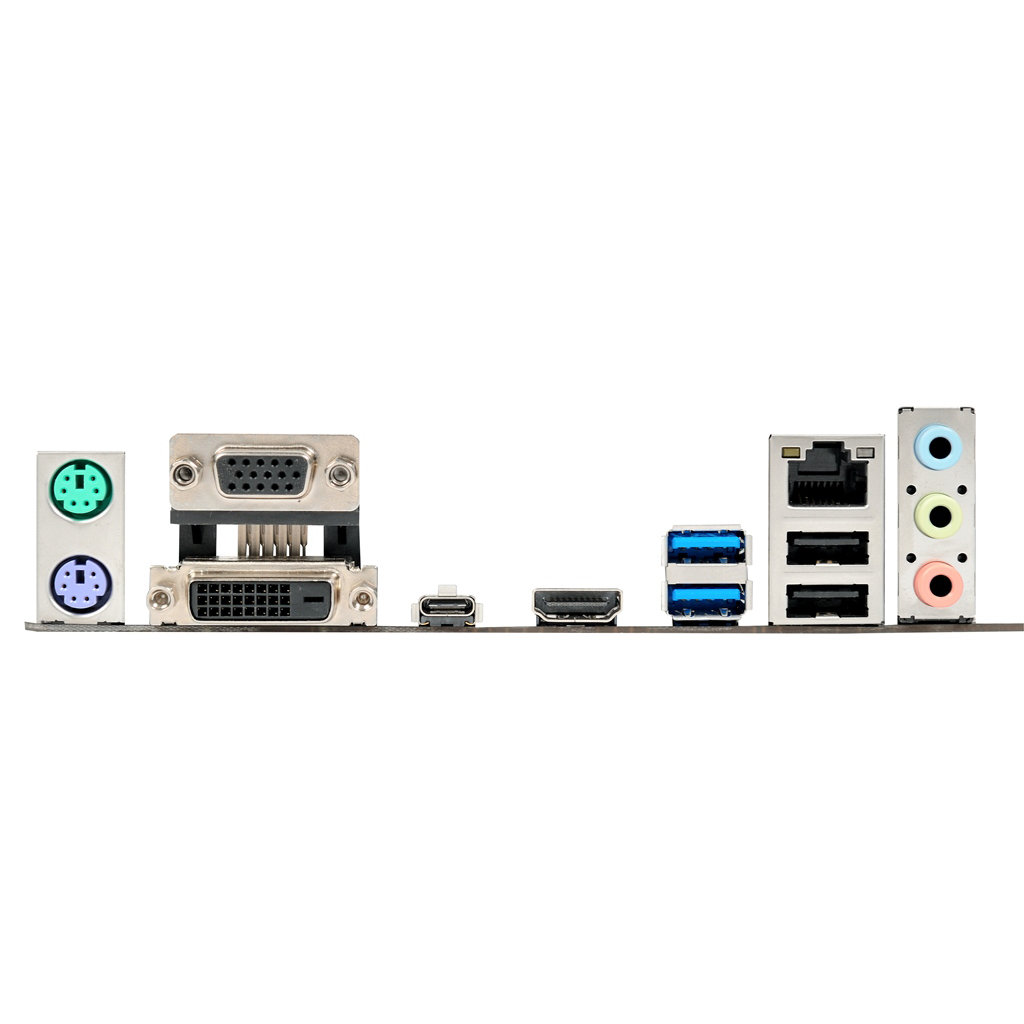

背面インターフェース | 1 x PS/2 mouse (green) 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 5Gb/s port(s) Type-C ( support 3A power output ) 2 x USB 3.0 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s) |
基板上インターフェース | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 0 x TPM connector(s) 1 x LPT header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Chassis intrusion header |
主な付属品 | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD |
フォームファクター(サイズW×D) | mATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ) |
その他 | 1* When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled. 2* M.2_2 supports Intel IRST Technology and Intel Optane memory*** 3* These functions will work depending on the CPU installed. 4* Use a chassis with HD audio module in the front panel to support an 8-channel audio output. 5* Windows 8.1 64-bit and Windows 7 32/64-bit are only supported when using 6th Generation Intel Processors |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
