CPU | Intel® Socket 1151 for 7th / 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors |
---|---|
Supports 14nm CPU | |
Supports Intel® Turbo Boost Technology 2.0* | |
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. | |
Chipset | Intel® H270 Chipset |
Memory | 4 x DIMM, max. 64GB DDR4 2400*/2133** MHz |
Dual channel memory architecture | |
Supports Intel® Extreme Memory Profile (XMP)*** | |
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. | |
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz. | |
Expansion Slots | 1 x PCIe 3.0/2.0 x16 slot (at x 16 mode) |
1 x PCIe 3.0/2.0 x16 slot (max. at x 4 mode) | |
4 x PCIe 3.0/2.0 x1 slots | |
Multi-GPU Support | Supports AMD® 2-Way CrossFireX™ Technology |
VGA | Integrated Graphics Processor- Intel® HD Graphics support |
Multi-VGA output support: DisplayPor/ HDMI/ DVI ports | |
Supports DisplayPort 1.2* with max. resolution 4096 x 2304@60Hz | |
Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz | |
Supports DVI-D with max. resolution 1920 x 1200@60Hz | |
Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/Insider™ | |
Supports up to 3 displays simultaneously | |
Maximum shared memory of 1024 MB | |
Storage | Intel® H270 Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 15 support |
- 6 x SATA 6Gb/s ports | |
- 1 x M.2_1 Socket 3 with M key, type 2242/2260/2280 storage devices support (both SATA and PCIE 3.0 x2 mode)* | |
- 1 x M.2_2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) | |
- Intel® Optane Memory Ready** | |
* The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device. | |
** Intel® Optane Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. | |
LAN | Intel® I219-V Gigabit LAN- Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY) |
Anti-surge LANGuard | |
ROG GameFirst Technology | |
Audio | SupremeFX 8-Channel High Definition Audio CODEC |
- Supports up to 32-Bit/192kHz playback* | |
- Impedance sense for front and rear headphone outputs | |
- High quality 120dB SNR stereo playback output and 113dB SNR recording input | |
- SupremeFX Shielding Technology | |
- Dual Headpone Amplifiers | |
- Jack-detection, Multi-streaming, and Front Panel Jack-retasking | |
- Optical S/PDIF out port at back panel | |
Audio Features: | |
- Sonic Radar III | |
- Sonic Studio III | |
*Due to limitations in HAD bandwidth, 32-Bit/102kHz is not supported for 8-channel audio | |
USB | Intel® H270 Chipset |
- 6 x USB 3.0 ports (2 ports at back panel [blue], 4 ports at mid-board) | |
- 8 x USB 2.0 ports (4 ports at back panel, 4 ports at mid-board)* | |
* 2 x USB 2.0 port at mid-board shares with ROG extension (ROG_EXT) port. | |
ASMedia® USB 3.1 controller** | |
- 2 x USB 3.1 ports (1 x Type-A [red] and 1 x Type-C ports at back panel) | |
** Supports 3A power output | |

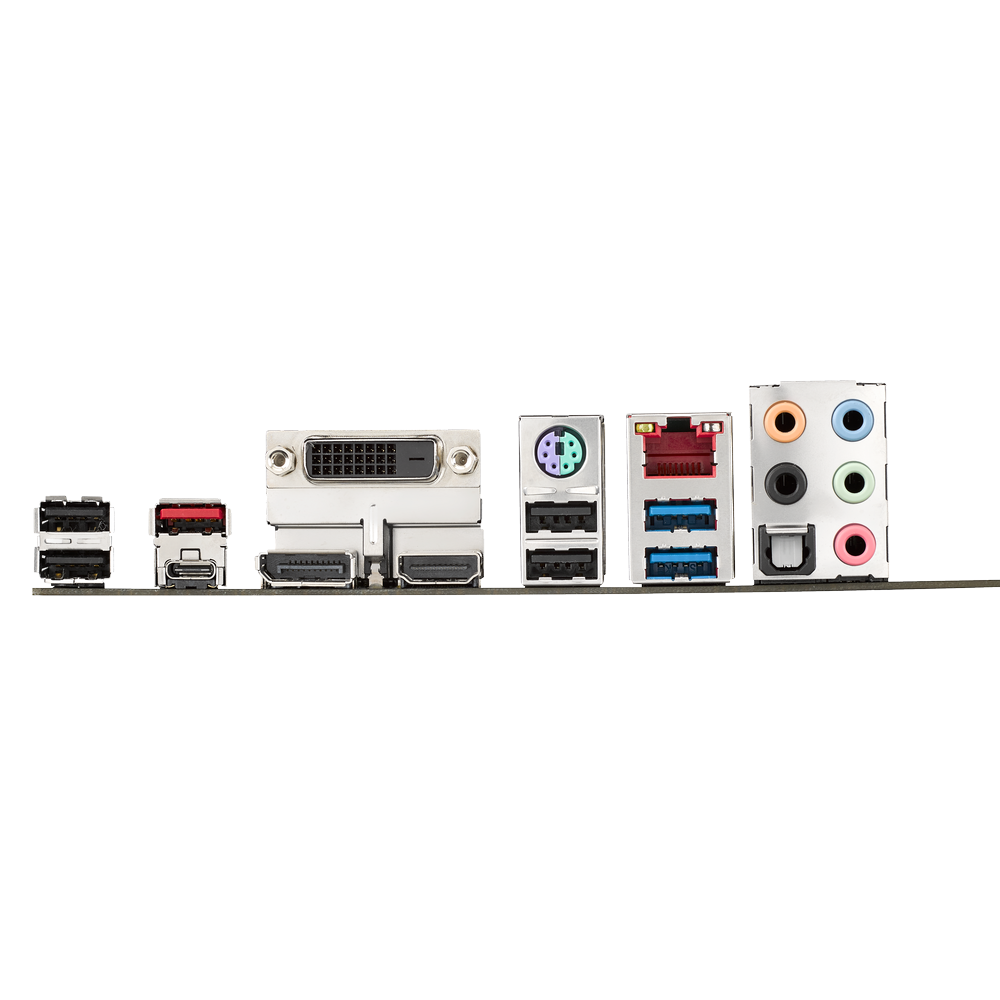

Back I/O Ports | 2 x USB 3.1 ports (1 x typeA [red] and 1 x TypeC) |
2 x USB 3.0 ports [blue] | |
4 x USB 2.0 ports | |
1 x DVI port | |
1 x HDMI port | |
1 x DP port | |
1 x PS/2 keyboard/mouse combo port | |
1 x Anti-surge LAN (RJ45) port | |
5 x Audio jacks | |
1 x Optical S/PDIF out | |
Internal I/O Ports | 2 x USB 3.0 connectors support additional 4 x USB 3.0 ports |
2 x USB 2.0 connectors support additional 2 x USB 2.0 ports (one connector via ROG_EXT header) | |
6 x SATA 6Gb/s connectors | |
1 x ROG extension (ROG_EXT) header | |
1 x 4-Pin AIO_PUMP fan connector | |
1 x 4-Pin CPU fan connector | |
1 x 4-Pin CPU_OPT fan connector | |
2 x 4-Pin Chassis fan connectors | |
1 x 5-Pin Extension fan connector | |
1 x 24-pin EATX power connector | |
1 x 8-pin EATX 12V power connector | |
1 x M.2_1 Socket 3 for M Key, type 2242/2260/2280 storage devices support ( Support PCIE&SATA mode) | |
1 x M.2_2 Socket 3 for M Key, type 2242/2260/2280/22110 storage devices support ( Support PCIE mode only) | |
1 x Front panel audio connector (AAFP) | |
1 x COM connector | |
1 x RGB Header | |
1 x TPM connector | |
1 x System panel connector | |
1 x Thermal sensor connector | |
1 x Clear CMOS jumper (2-pin) | |
Accessories | User guide |
Support DVD | |
I/O Shield | |
4 x SATA 6Gb/s cables | |
1 x RGB LED extension cable | |
1 x ROG cable label | |
1 x Strix series sticker | |
1 x 3D Printing Mount | |
1 x M.2 Screw Package | |
Operating System Support | Windows® 10 64-bit |
Windows® 8.1 64-bit* | |
Windows® 7* | |
*Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors. | |
Form Factor | ATX Form Factor, 12” x 9.6” (30.5cm x 24.4cm) |
