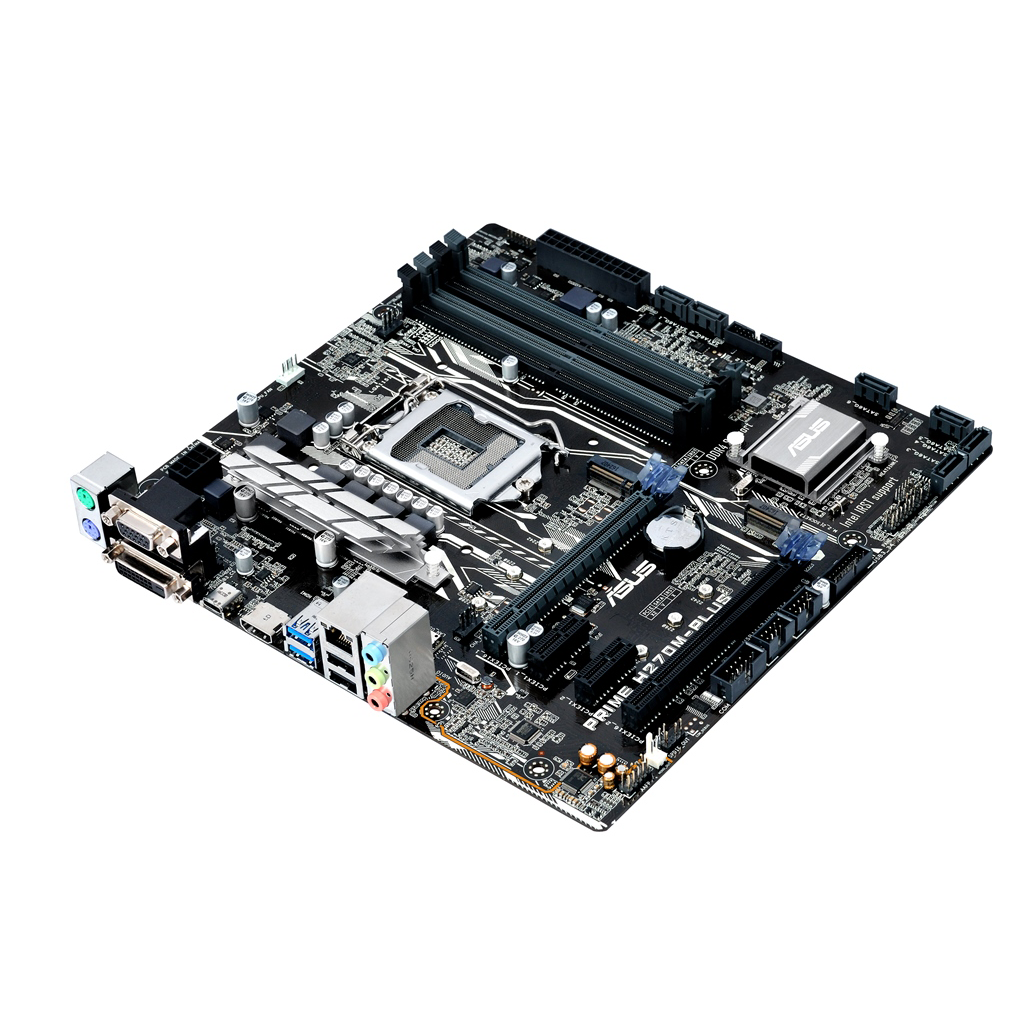

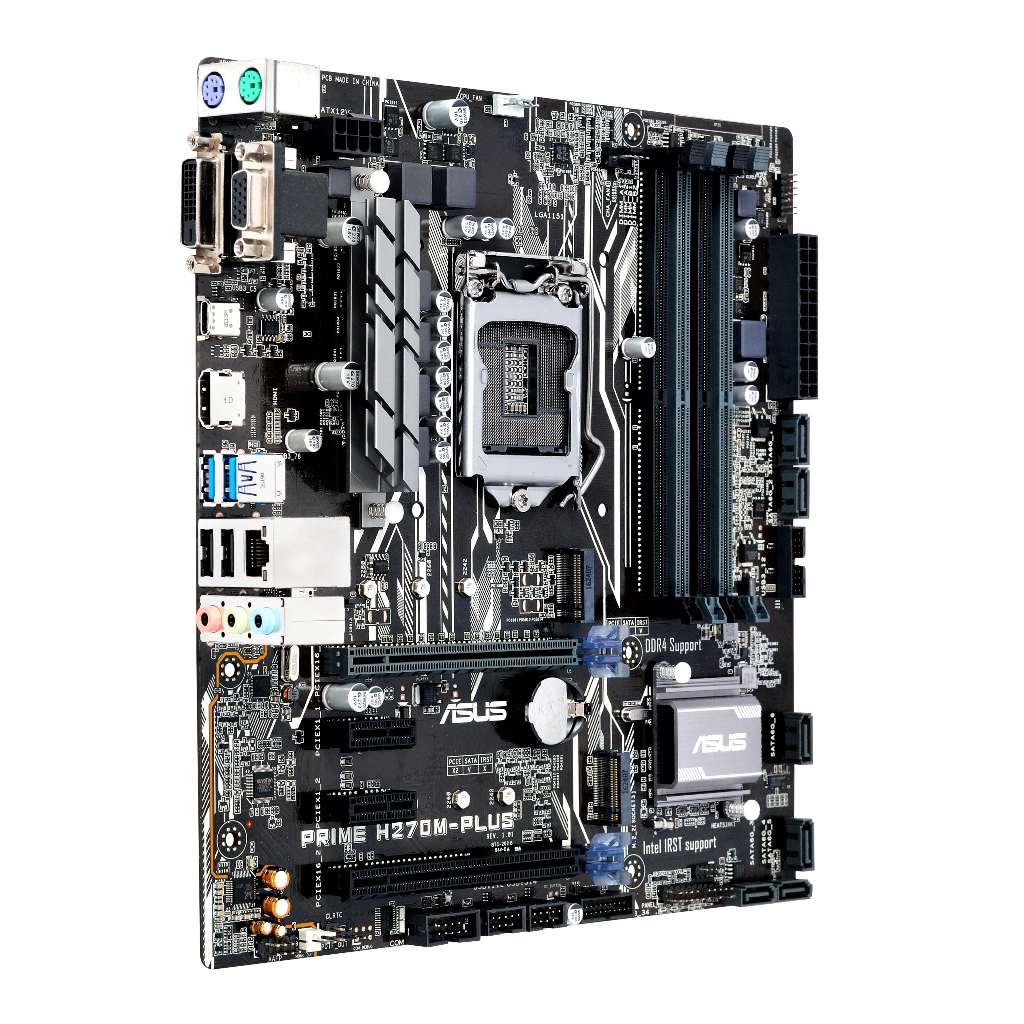

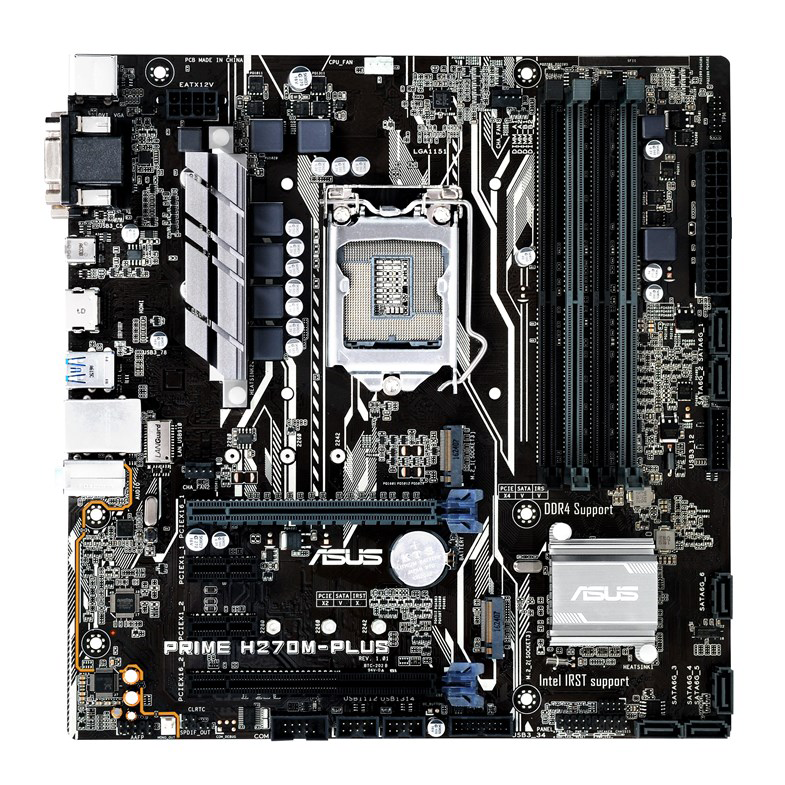

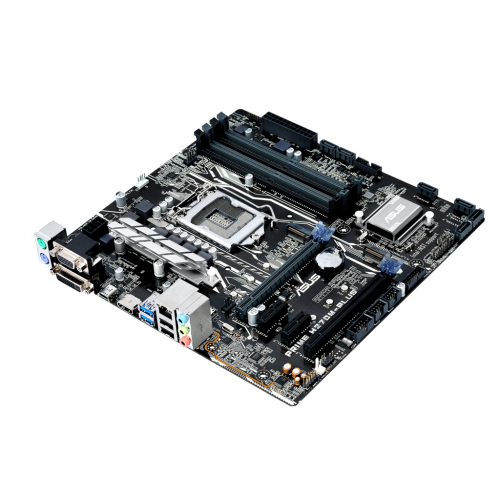

PRIME H270M-PLUS

PRIME H270M-PLUS

型番：ASU-PRIME/H270M-PLUS

製品仕様

CPU LGA1151 socket for 7th/6th Generation Intel® Core™ i7/ i5/ i3/Pentium®/Celeron® Processors
Supports 14nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset Intel® H270 Chipset
Memory 4 x DIMM, maximum 64 GB, DDR4 2400*/ 2133**MHz, non-ECC, un-buffered memory
  Dual channel memory architecture
  Supports Intel® Extreme Memory Profile (XMP)
  *Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors.Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
  **Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will runat the maximum transfer rate of DDR4 2133MHz.
Expansion Slots 1 x PCI Express 3.0/2.0 x16 slot (at x16 mode)
1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1, x2 and x4 devices)
2 x PCI Express 3.0/2.0 x1 slots
Multi-GPU Support Supports AMD® CrossFireX™ Technology
VGA Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support: HDMI/DVI-D/RGB port
 - Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz
 - Supports DVI-D with max. resolution of 1920 x 1200@60Hz
 - Supports RGB with max. resolution 1920 x 1200@60Hz
Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/Insider™
Supports up to 3 displays simultaneously
Maximum shared memory of 1024MB(for iGPU exclusively)
Storage Intel® H270 Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 15 support
 - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x4 PCIE mode)*
 - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)**
 - 6 x SATA 6.0 Gb/s ports
 - Intel® Optane™  Memory Ready***
 - Supports Intel® IRST Technology
*When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used.
**When a device in SATA mode is installed on the M.2_2 socket, SATA_6 port cannot be used.
***Only M.2_1 can support Intel® Optane Memory. Intel® Optane Technology is only supported,when using 7th Generation Intel®processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
LAN Intel® I219-V Gigabit LAN
- Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
Audio Realtek® ALC887 8-channel high definition audio CODEC
 - Audio Shielding: Ensures precision analog/digital separation and greatly reduces multi-lateral interference
 - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
 - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity.
 - Supports jack-detection and front panel jack-retasking
USB Intel® H270 Chipset
 - 1 x 5Gb/s USB Type C port (@back panel), supports 3A power output
 - 6 x USB 3.0/2.0 ports (4 ports @mid-board; 2 ports @back panel)
 - 6 x USB 2.0/1.1 ports (4 ports @mid-board; 2 ports @back panel)

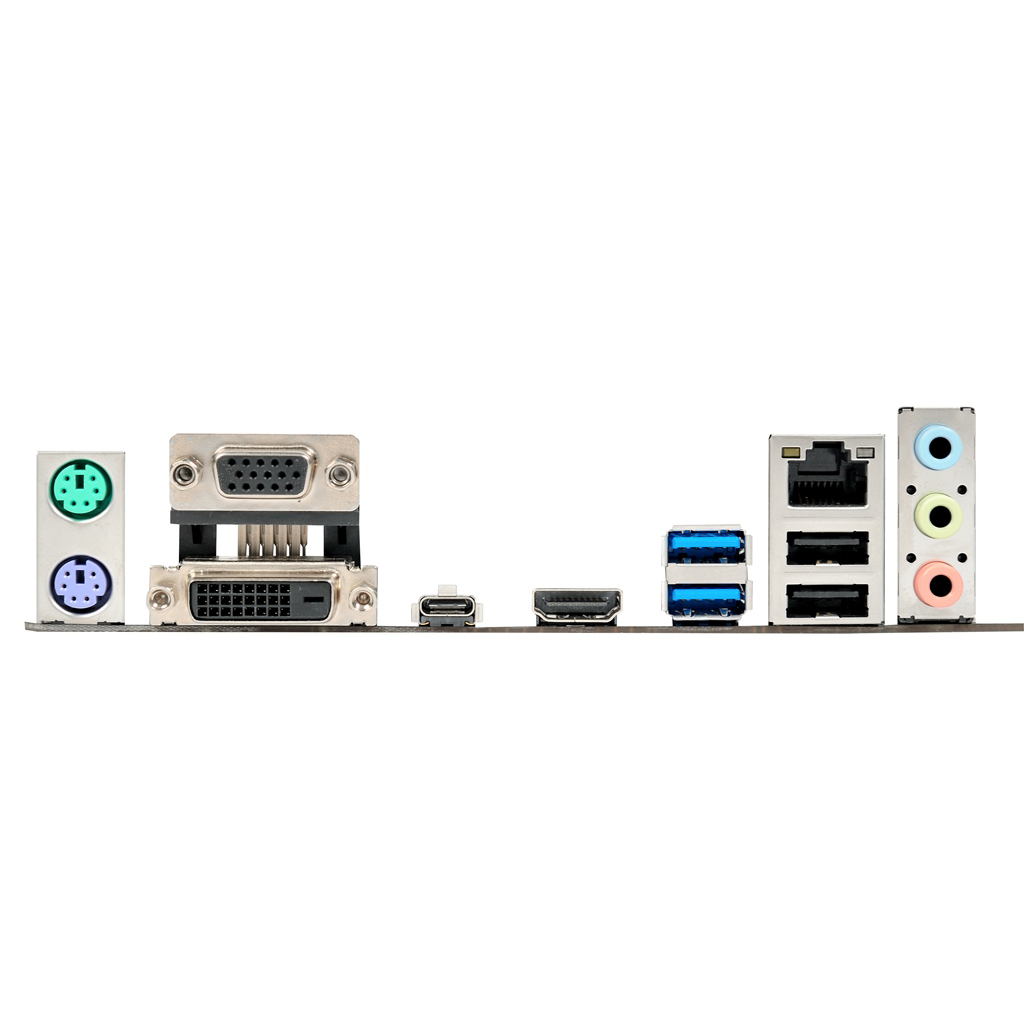

Back Panel I/O Ports 1 x PS/2 keyboard port(purple)
1 x PS/2 mouse port(green)
1 x HDMI port
1 x DVI-D port
1 x RGB port
1 x LAN (RJ45) ports
2 x USB 3.1/3.0/2.0 ports (teal blue, Type A)
1 x 5Gb/s USB Type C port
2 x USB 2.0/1.1 ports
3-Jack 8-Channel Audio I/O ports
Internal I/O Connectors 2 x USB 3.0/2.0 connectors support additional 4 USB ports (19-pin)
2 x USB 2.0/1/1 connectors support additional 4 USB ports
6 x SATA 6.0 Gb/s connectors (gray)
2 x M.2 Socket 3 (for M Key)
1 x 4-pin CPU Fan connector for both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control*
2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control
1 x Front panel audio connector (AAFP)
1 x System panel connector
1 x S/PDIF out header
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x COM header
1 x TPM header
1 x Mono out header
1 x Clear CMOS jumper
* By default,the CPU Q-Fan control setting is set as default in Auto mode for detecting the type of CPU fan installed and switches to the control mode automatically.
Accessories 2 x Serial ATA 6.0Gb/s cables
1 x I/O Shield
2 x M.2 screws
1 x Support DVD
1 x User's manual
Operating System Support Windows® 10 64-bit
Windows® 8.1 64-bit*
Windows® 7*
*Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors
Form Factor mATX form factor: 9.6 in. x 9.4 in. (24.38c cm x 23.88cm)
