H170-PRO

H170-PRO

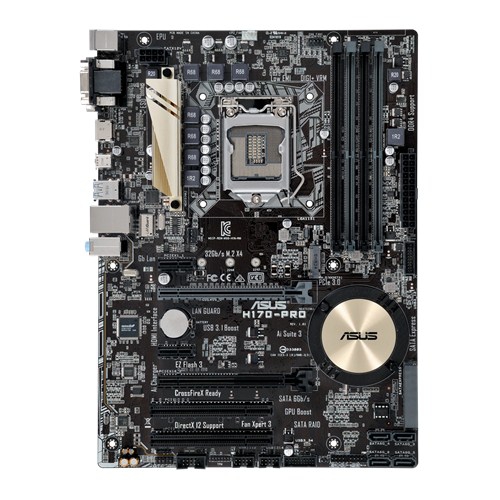

多くの機能を搭載するミドルレンジモデル

特徴

- LGA1151対応
- Intel Core i7/i5/i3、Pentium、Celeron対応
- Intel H170チップセット搭載
- DDR4メモリ×4(最大64GB)対応
- PCIe x16×2、PCIe x1×2、PCI×2
- HDMI×1、DVI-D×1、D-Sub 15ピン×1
- SATA 6Gb/s×6、SATA Express×1、M.2×1
- USB 3.0 Type-C×1、USB 3.0×6、USB 2.0×6
- EPU(電力管理チップ)搭載
- Fan Xpert 3搭載、USB高速充電機能搭載
- 低ノイズオーディオ機能搭載
- ATXフォームファクター

製品仕様

CPUIntel Socket 1151 for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
チップセット Intel H170
メモリ4 x DIMM, Max. 64GB, DDR4 2133 MHz Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Due to Intel chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 Mhz.
グラフィックス機能Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 3 displays simultaneously
マルチGPU機能Supports AMD Quad-GPU CrossFireX Technology
拡張スロット1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 3.0/2.0 x16 (max at x4 mode, black)
2 x PCIe 3.0/2.0 x1
2 x PCI
ストレージ機能Intel H170 chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x SATA Express port, gray, Compatible with 2 x SATA 6.0 Gb/s ports
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology*1
LAN機能Realtek RTL8111H, 1000BASE-T/100BASE-TX/10BASE-T×1
オーディオ機能Realtek ALC887 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USBIntel H170 chipset :
1 x USB 5Gb/s port(s) port(s) (1 at back panel, , Type-C, Reversible, Support 3A power output)
Intel H170 chipset :
6 x USB 3.0/2.0 port(s) (2 at back panel, blue, Type-A)
Intel H170 chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , Type-A, 4 at mid-board)
Special FeaturesASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 7 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
ASUS EPU :
- EPU
ASUS Exclusive Features :
- GPU Boost
- AI Suite 3
- Ai Charger
- M.2 & SATA Express
- Anti-Surge
- Low EMI Solution
- USB 3.0 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 3
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer
Operating System SupportWindows 10 64ビット
Windows 8.1 64ビット
Windows 7 64ビット/32ビット *3

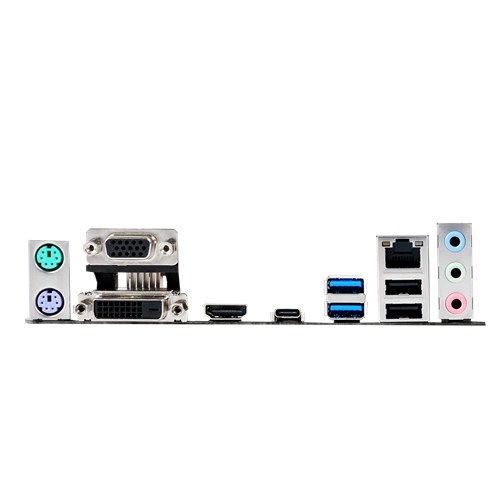

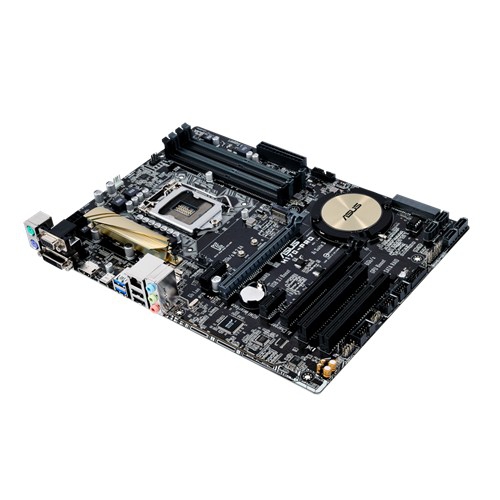

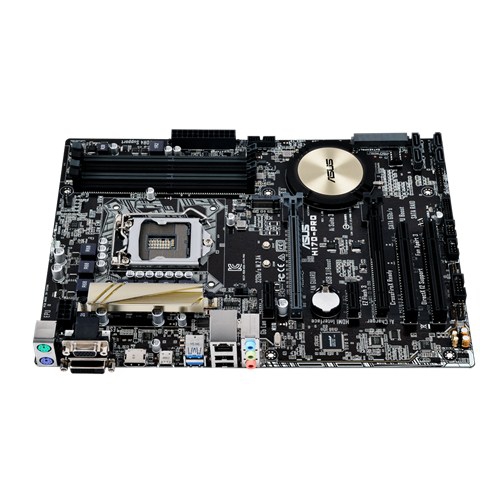

背面インターフェース1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
2 x USB 3.0 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
基板上インターフェース2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x SATA Express connector: gray, Compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)

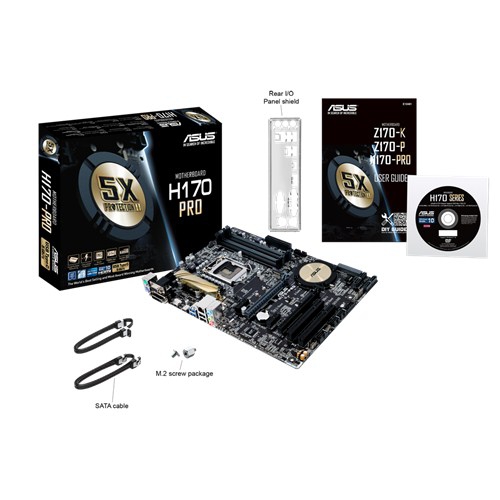

主な付属品User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
BIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
ManageabilityWfM 2.0, DMI 3.0, WOL by PME, PXE
サポートDVDDrivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
フォームファクター/サイズ(W×D)ATX Form Factor
12 inch x 8.8 inch ( 30.5 cm x 22.4 cm )
その他*1: These functions will work depending on the CPU installed.
*2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
*3: Please refer to ASUS website and download “Windows 7 installation guide” and “ASUS EZ installer” to install Windows 7.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
