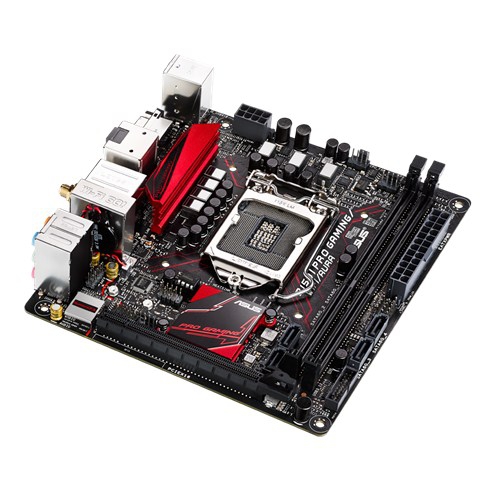

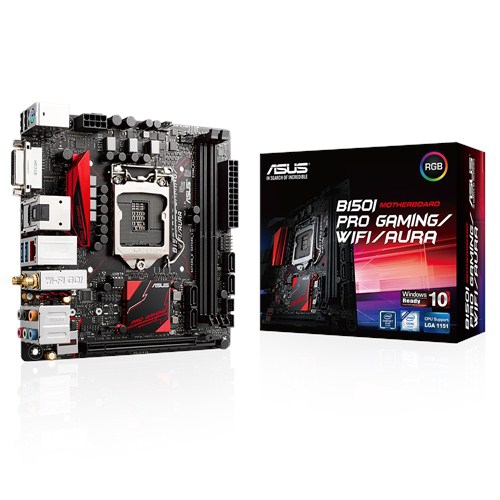

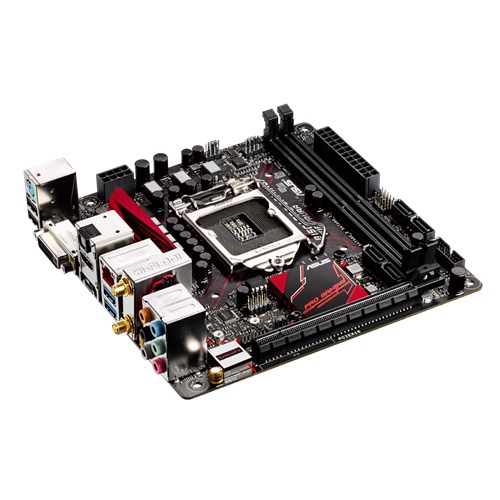

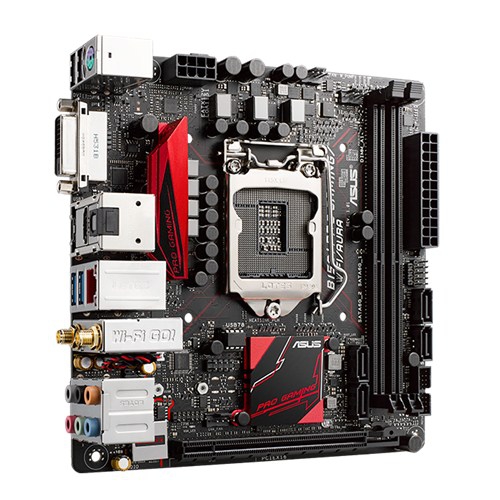

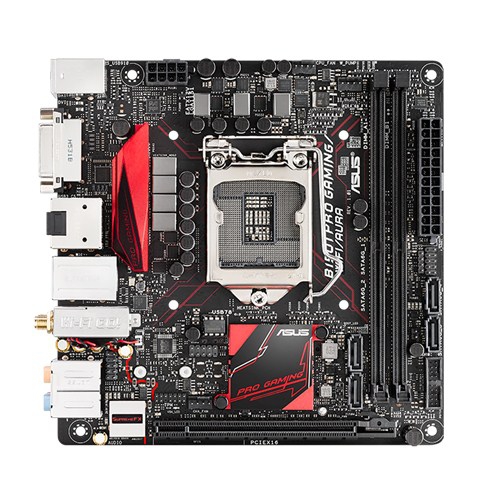

B150I PRO GAMING/WIFI/AURA

B150I PRO GAMING/WIFI/AURA

Compact gaming punch with awesome RGB lighting

型番：ASU-B150I/PRO/GAMING/WIFI/AURA

メーカー製品ページ

特徴

LGA1151 socket for 6th-genereation Intel? Core? i7 / Core i5 / Core i3, Pentium? and Celeron processors
Dual-channel DDR4 2133 support
SupremeFX: Flawless audio that makes you part of the game
Sonic Radar ll: Scan and detect your enemies to dominate
Intel Gigabit Ethernet and LANGuard: Top-speed protected networking
RAMCache: Speed up your game loads
Gamer's Guardian: Highly-durable components and smart DIY features
2x2 Wi-Fi with MU-MIMO and M.2: Ultra-speedy transfers for faster gaming

製品仕様

CPU Intel Socket 1151 for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset Intel B150
Memory2 x DIMM, Max. 32GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
GraphicIntegrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Expansion Slots1 x PCIe 3.0/2.0 x16 (x16 mode)
StorageIntel B150 chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*
4 x SATA 6Gb/s port(s),
LANIntel I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
Anti-surge LANGuard
Wireless Data NetworkWi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
BluetoothBluetooth V4.1
AudioSupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 112 dB SNR stereo playback output
Audio Feature :
- SupremeFX Shielding Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar II
USB PortsIntel B150 chipset :
5 x USB 3.0/2.0 port(s) (3 at back panel, blue, 2 at mid-board)
Intel B150 chipset :
4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board)
Special FeaturesGamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
Remote Entertainment
- Media Streamer
- HyStream
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-DIMM
RAMCache
AURA: RGB Lighting Control
Operating System SupportWindows 10 , 64bit
Windows 8.1 , 64bit
Windows 7 , 32bit/64bit

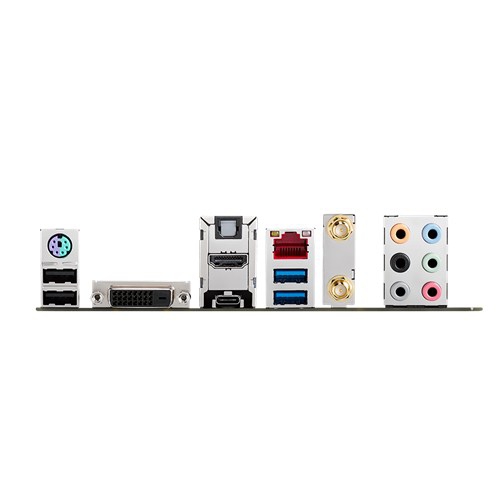

Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x HDMI
1 x LAN (RJ45) port(s)
3 x USB 3.0 Type-A + Type-C
2 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
Internal I/O Ports1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
1 x TPM header
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x Clear CMOS jumper(s)
1 x Water Pump header (4-pin)
1 x 14-1 pin TPM connector
AccessoriesUser's manual
ASUS Q-Shield
M.2 2242 mounting kit
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x pack of cable tie
1 x CPU installation tool
1 x Supporting DVD
1 x 12 in 1 Cable Label (s)
BIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,
CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information
ManageabilityWfM 2.0, DMI 3.0, WOL by PME, PXE
Support DiscDrivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
Form FactorMini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Note*:For a 2242 storage device, use the bundled 2242 mounting kit.


※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
