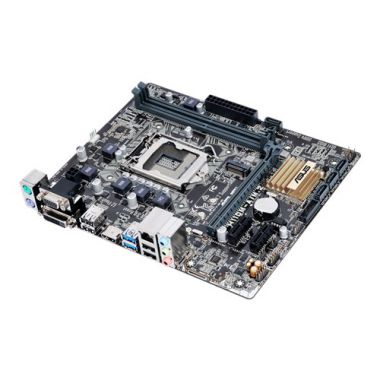

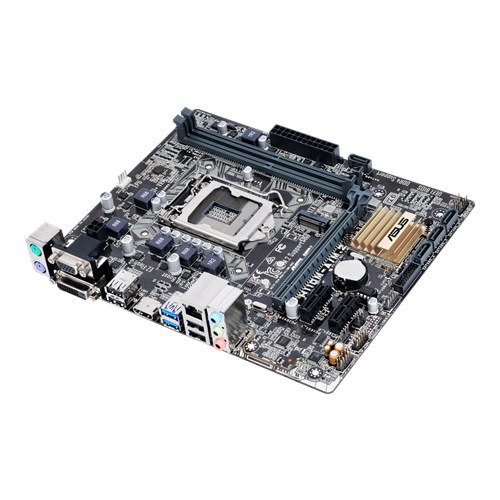

M.2スロットを搭載するmicroATXサイズのIntel H110マザーボード

型番：ASU-H110M-A/M.2

メーカー製品ページ

特徴

- LGA1151対応
- Intel Core i7/i5/i3、Pentium、CeleronシリーズCPU対応
- Intel H110チップセット搭載
- DDR4メモリ×2枚（最大32GB）対応
- HDMI×1、DVI-D×1、D-Sub 15ピン×1
- PCIe 3.0 x16×1、PCIe 2.0 x1×2
- SATA 6Gb/s×4、M.2×1（20Gb/s）
- USB 3.0×4、USB 2.0×6
- 1000BASE-T×1
- デジタル電源回路「DIGI+ VRM」
- 省電力を実現する電力制御チップ「EPU」
- CPUファン＋ケースファンを細かく設定できる「Fan Xpert」
- USB 3.0をブーストする「USB 3.0 Boost」
- microATXフォームファクター

製品仕様

対応CPUIntel Socket 1151 for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
搭載チップセット Intel H110
対応メモリ2 x DIMM, Max. 32GB, DDR4- 2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* The maximum memory frequency supported varies by processor.
* Due to Intel chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 Mhz.
グラフィックス機能Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports up to 2 displays simultaneously
拡張スロット1 x PCIe 3.0/2.0 x16 (x16 mode)
2 x PCIe 2.0 x1
ストレージ機能Intel H110 chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
4 x SATA 6Gb/s port(s),
Intel Rapid Storage Technology supports*1
LAN機能Intel I219V
オーディオ機能Realtek ALC887 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB機能Intel H110 chipset :
4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel H110 chipset :
6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board)
独自機能ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS DIGI+ VRM - 5 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
- ASUS ESD Guards - Electrostatic discharge protection
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Low EMI Solution
- USB 3.0 Boost
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
動作対応OSWindows 10 64ビット
Windows 8.1 64ビット
Windows 7 64ビット/32ビット *3

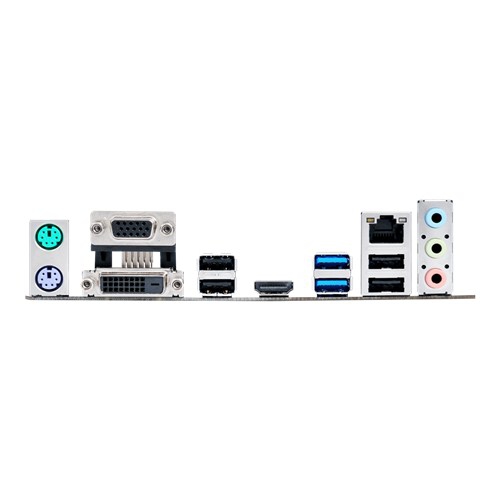

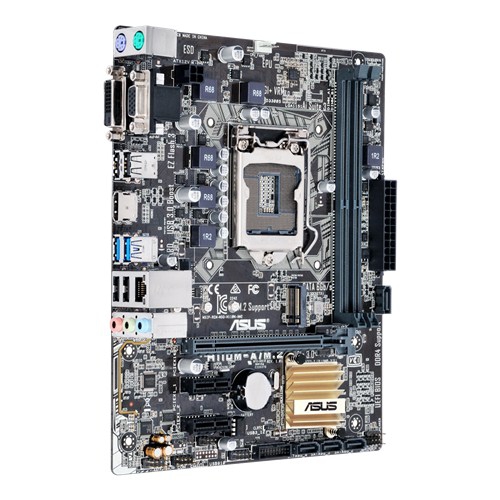

背面インターフェース1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
4 x USB 2.0
3 x Audio jack(s)

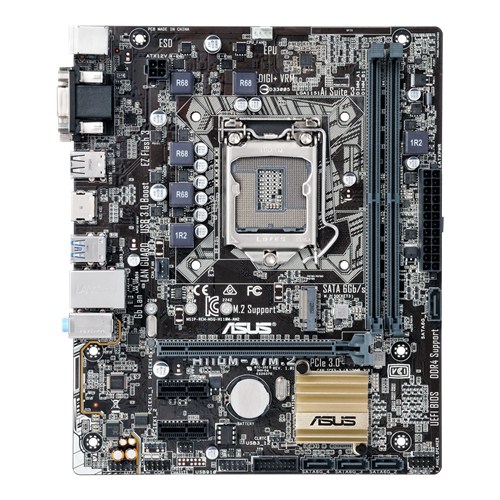

基板上インターフェース1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector

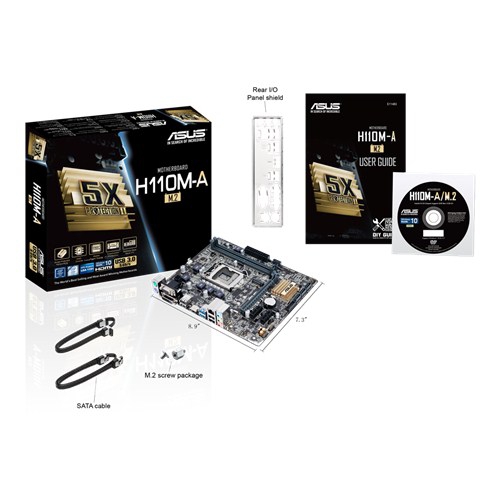

主な付属品User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
BIOS機能128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information
管理機能WfM 2.0, DMI 3.0, WOL by PME, PXE
サポートDVDの内容Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
フォームファクター（サイズW×D）mATX Form Factor
8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
その他*1: These functions will work depending on the CPU installed.
*2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
*3: Please refer to ASUS website and download “Windows 7 installation guide” and “ASUS EZ installer” to install Windows 7.
