CPU負荷が少ないIntel LANやゲーム用オーディオ機能のSupremeFX 2014を搭載するゲーマー向けのSocket FM2+マザーボード

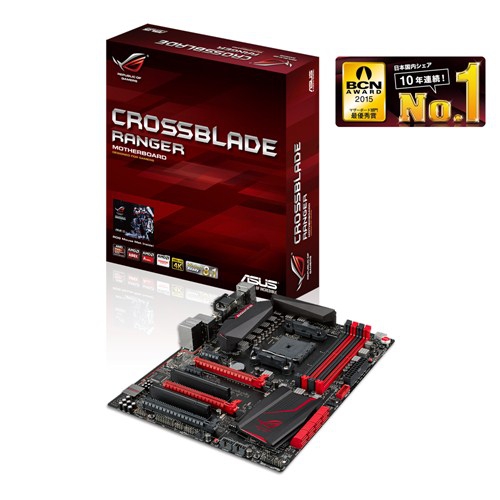

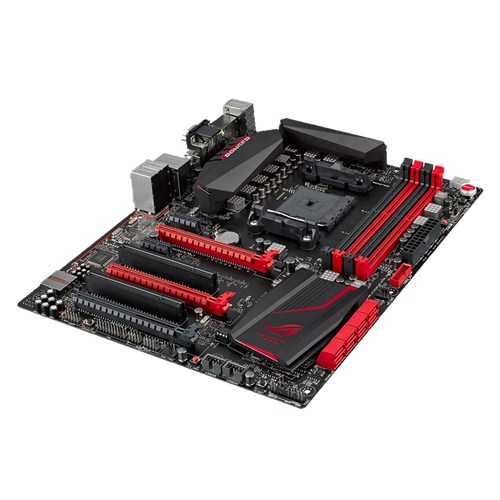

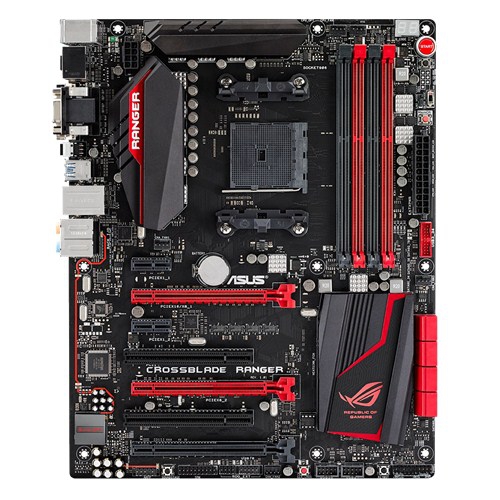

型番:ASU-CROSSBLADE/RANGER

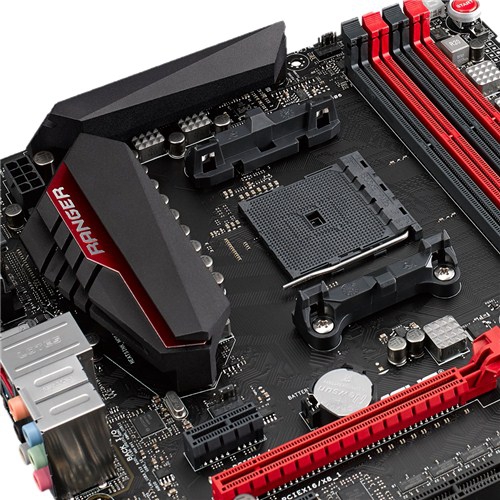

CPU | AMD Socket FM2+ Athlon/A- Series Processors Supports CPU up to 4 cores Supports AMD Turbo Core 3.0 Technology * Refer to www.asus.com for CPU support list |
チップセット | AMD A88X (Bolton D4) |
メモリ | 4 x DIMM, Max. 64GB, DDR3- 2666(O.C.)/2400(O.C.)/2250(O.C.)/2200(O.C.)/2133/1866/1600/1333 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Support AMD Memory Profile (AMP) memory * The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market. * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
グラフィックス機能 | Integrated AMD Radeon R/HD8000/HD7000 Series Graphics in the A-Series APU Multi-VGA output support : HDMI/DVI-D/RGB ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1200 @ 60 Hz*1 - Supports DVI-D with max. resolution 2560 x 1600 @ 60 Hz - Supports RGB with max. resolution 1920 x 1600 @ 60 Hz Maximum shared memory of 2048 MB AMD Dual Graphics technology support |
マルチGPU機能 | Supports AMD 3-Way CrossFireX Technology |

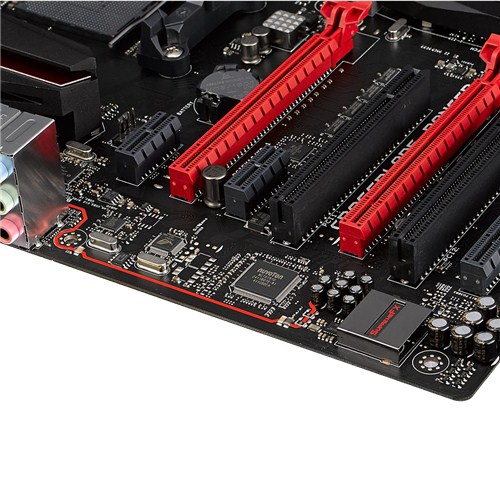

拡張スロット | 2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8, red) *2 1 x PCIe 2.0 x16 (max at x4 mode, black) 2 x PCIe 2.0 x1 2 x PCI |
ストレージ機能 | AMD A88X FCH(Bolton D4) chipset : 8 x SATA 6Gb/s port(s), , with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) Support Raid 0, 1, 5, 10, JBOD |
LAN機能 | Intel I211-AT, 1000BASE-T/100BASE-TX/10BASE-T×1 |
オーディオ機能 | ROG SupremeFX 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - SupremeFX Shielding Technology - ELNA premium audio capacitors Audio Feature : - DTS Connect - Optical S/PDIF out port(s) at back panel - Sonic SoundStage - Sonic SenseAmp - Sonic Studio - Sonic Radar II |
USB | ASMedia USB 3.0 controller : 2 x USB 3.0 port(s) (2 at back panel, blue) AMD A88X FCH(Bolton D4) chipset : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) AMD A88X FCH(Bolton D4) chipset : 8 x USB 2.0 port(s) (2 at back panel, , 6 at mid-board) |
オーバークロック関連機能 | Extreme Engine Digi+ III : - Full Digital CPU/DRAM Power - NexFET Power Block MOSFET - New Alloy Chokes - 10K Black Metallic Capacitors ROG Extreme OC kit : - Slow Mode - LN2 Mode ProbeIt KeyBot - CPU Level Up - XMP - Direct Key UEFI BIOS features : - GPU.DIMM Post - Tweakers' Paradise - ROG SSD Secure Erase - Graphic Card Information Preview ROG RAMDisk GameFirst III Extreme Tweaker USB BIOS Flashback |
Special Features | ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 3 optimize the digital power setting, system performance, power saving and whole system cooling configuration ASUS Exclusive Features : - MemOK! - AI Suite 3 - Ai Charger+ - USB Charger+ - USB 3.0 Boost - Disk Unlocker Interactive HomeCloud - Media Streamer ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 3 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector |
Operating System Support | Windows 8.1 Windows 8 Windows 7 |

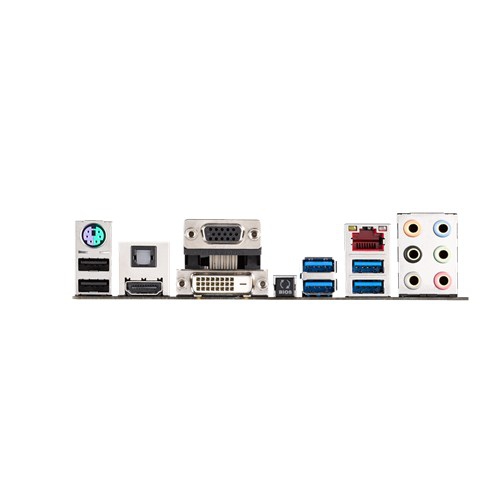

背面インターフェース | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.0 (blue) 2 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x USB BIOS Flashback Button(s) |
基板上インターフェース | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x Slow Mode switch(es) 7 x ProbeIt Measurement Points 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x LN2 Mode jumper(s) 1 x ROG extension (ROG_EXT) header(s) 1 x KeyBot Button 1 x Sonic SoundStage Button |
主な付属品 | User's manual I/O Shield 4 x SATA 6Gb/s cable(s) 1 x Q-connector(s) (2 in 1) 1 x 12 in 1 ROG Cable Label(s) 1 x ROG Door Hanger(s) 1 x ROG Mouse Mat |
BIOS | 64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a, Multi-Language BIOS |
Manageability | WfM 2.0, DMI 2.7, WOL by PME, PXE |
サポートDVD | Drivers ROG GameFirst III ROG RAMDisk ROG CPU-Z Kaspersky Anti-Virus DAEMON Tools Pro Standard ASUS WebStorage HomeCloud ASUS Utilities |
OS | Windows 8.1 32/64-bit Windows 8 32/64-bit Windows 7 32/64-bit |
フォームファクター/サイズ(W×D) | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Management Solution | WfM 2.0, DMI 2.7, WOL by PME, PXE |
その他 | 1: Only FM2+ APU can support up to 4096 x 2160 resolution display via HDMI port. 2: Only FM2+ processors can support PCIe 3.0. 3: 1 x USB 2.0 connectors support additional 2 USB 2.0 ports(2 ports share with ROG_EXT header). |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
