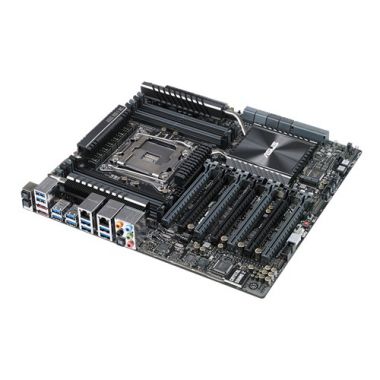

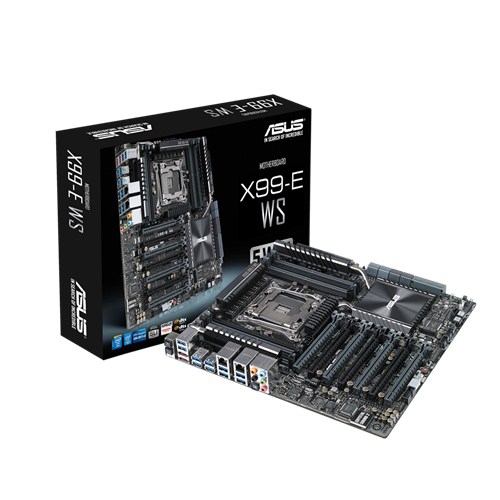

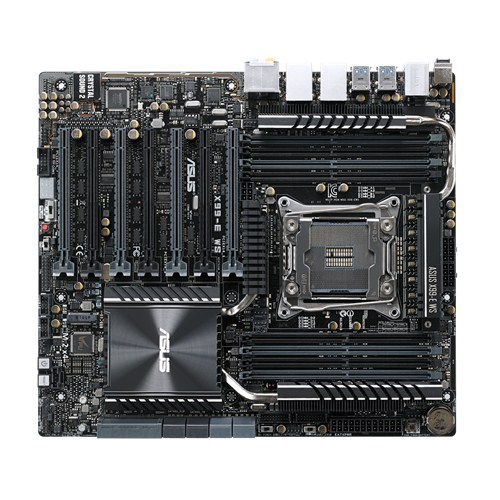

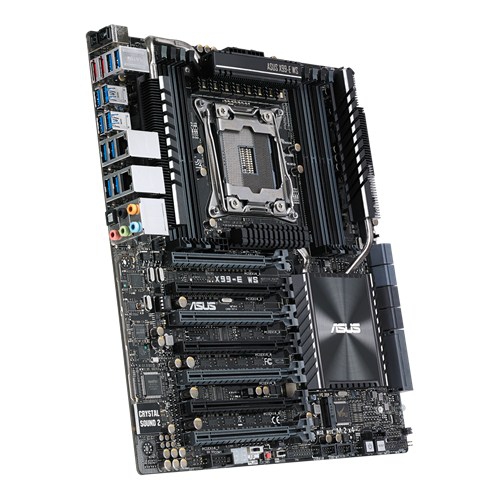

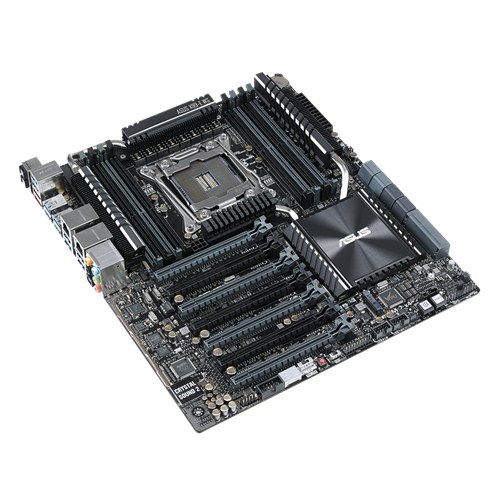

ビデオカードを7枚搭載でき最大128GBのメモリに対応するX99ワークステーションマザーボード
型番:ASU-X99-E/WS
CPU | Intel Socket 2011-v3 Core i7 Processors Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. Intel Socket 2011-v3 for Intel Xeon processor E5-1600 v3 product family Intel Socket 2011-v3 for Intel Xeon processor E5-2600 v3 product family |
チップセット | Intel X99 |
メモリ | 8 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory *1 8 x DIMM, Max. 128GB, DDR4 2133/1866 MHz ECC, Un-buffered, Register Memory *2 Quad Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
マルチGPU機能 | Supports NVIDIA 4-Way SLI Technology Supports AMD 4-Way CrossFireX Technology |
拡張スロット | 40-Lane CPU- 7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) 28-Lane CPU- 7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) |
ストレージ機能 | Intel X99 chipset : *3 1 x SATA Express port, gray, compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 x4 Socket 3, gray, , with M Key, type 2260/2280 storage devices support (PCIE mode) 8 x SATA 6Gb/s port(s), gray, *4 Intel Rapid Storage Technology supports*5 ASMedia SATA Express controller : *6 1 x SATA Express port, gray, compatible with 2 x SATA 6.0 Gb/s ports ASMedia SATA 6Gb/s controller : 2 x eSATA 6Gb/s port(s)compatible with 2 x SATA 6.0 Gb/s ports |
LAN機能 | Intel I210-AT, 1000BASE-T/100BASE-TX/10BASE-T×1 Intel I218LM, 1 x 1000BASE-T/100BASE-TX/10BASE-T LAN, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) |
オーディオ機能 | Realtek ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2 - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking - High quality 109 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in) - High-fidelity audio OP AMP(s) Audio Feature : - DTS Ultra PC II - DTS Connect - Optical S/PDIF out port(s) at back panel - BD Audio Layer Content Protection - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Audio amplifier: Provides the highest-quality sound for headphone and speakers Premium Japanese-made 12K hours capacitors - Absolute Pitch 192khz/24bit true BD lossless sound Separate layer for left and right track, ensuring both sound deliver equal quality |
USB | Intel X99 chipset : 4 x USB 3.0/2.0 port(s) (4 at back panel, , 4 at mid-board) Intel X99 chipset : 4 x USB 2.0/1.1 port(s) (4 at mid-board) ASMedia USB 3.0 controller : *7 2 x USB 3.0/2.0 port(s) (2 at back panel, blue) ASMedia USB 3.0 controller : *8 8 x USB 3.0/2.0 port(s) (4 at back panel, , 4 at mid-board) |
Workstation Feature | 7 x PCIe x 16 slot(s) ASUS Dr. Power 12K hours Capacitors ProCool Power Connector Q-Code Logger |
Special Features | 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. ASUS TPU : - Auto Tuning - GPU Boost - TPU switch ASUS EPU : - EPU - EPU switch ASUS Digital Power Design : - Industry leading Digital 8 Phase Power Design - Industry leading Digital 4 Phase DRAM Power Design - CPU Power Utility - DRAM Power Utility ASUS Exclusive Features : - MemOK! - AI Suite 3 - Ai Charger+ - USB Charger+ - M.2 & SATA Express - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.0 Boost - Disk Unlocker - Turbo LAN - Crystal Sound 2 Interactive HomeCloud - Media Streamer ASUS EZ DIY : - Precision Tweaker 2 - ASUS O.C. Tuner - ASUS CrashFree BIOS - ASUS EZ Flash - ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Media Streamer Special Memory O.C. Design Turbo App Fan Xpert 3 |
Operating System Support | Windows 8.1 Windows 8 Windows 7 |
背面インターフェース | 2 x eSATA 2 x LAN (RJ45) port(s) 10 x USB 3.0 (blue) 1 x Optical S/PDIF out 8 x Audio jack(s) 1 x USB BIOS Flashback Button(s) 1 x Q-Code Logger button |
基板上インターフェース | 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x SATA Express connector: gray, compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3 for M Key, type 2260/2280 devices 1 x TPM connector(s) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 4 x Chassis Fan connector(s) (4 x -pin) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 2 x 8-pin EATX 12 V Power connector 1 x 6-pin EATX 12 V_1 Power connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x EZ XMP switch 1 x Front panel connector(s) 1 x System panel(s) (Q-Connector) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x Thermal sensor connector(s) 1 x TPU switch(es) 1 x CPU/DRAM overvoltage jumper(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x Dr.Power switch(es) 1 x 3-pin CHASSIS(Chassis intrusion) connector |
主な付属品 | User's manual ASUS Q-Shield 1 x COM port cable(s) 12 x SATA 6Gb/s cable(s) 1 x 3-Way SLI bridge(s) 1 x 4-Way SLI bridge(s) 1 x Q-connector(s) (2 in 1) 1 x 2-port USB 2.0 module(s) |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information. |
Manageability | WfM 2.0, DMI 2.7, WOL by PME, PXE |
サポートDVD | Drivers、ASUS Utilities、EZ Update 、Anti-virus software (OEM version) |
OS | Windows 8.1 32/64-bit Windows 8 32/64-bit Windows 7 32/64-bit |
フォームファクター/サイズ(W×D) | CEB Form Factor 12 inch x 10.5 inch ( 30.5 cm x 26.7 cm ) |
その他 | *1 When installing Intel Socket 2011-v3 Core i7 Processors *2 When installing Intel Xeon E5-1600 v3/2600 v3 Processor *3 Intel X99 Express Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 13 support *4 8 x SATA 6.0 Gb/s ports* (4 x gray from controller 1, 4 x black from controller 2) *5 These functions will work depending on the CPU installed *6 These SATA ports are for data hard drivers only. ATAPI devices are not supported *7 ASMedia USB 3.0 controller- supports ASUS USB 3.0 Boost *8 ASMedia USB 3.0 Hubs- supports ASUS USB 3.0 Boost |
※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
