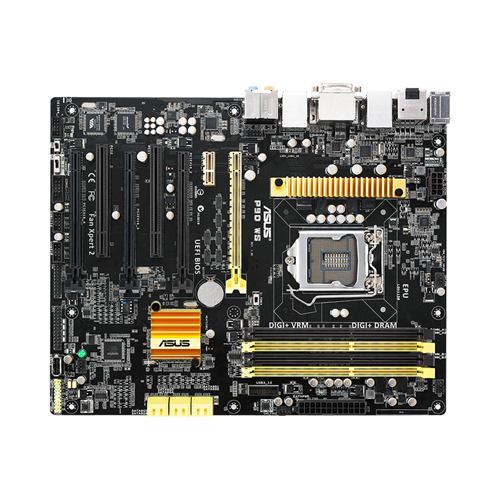

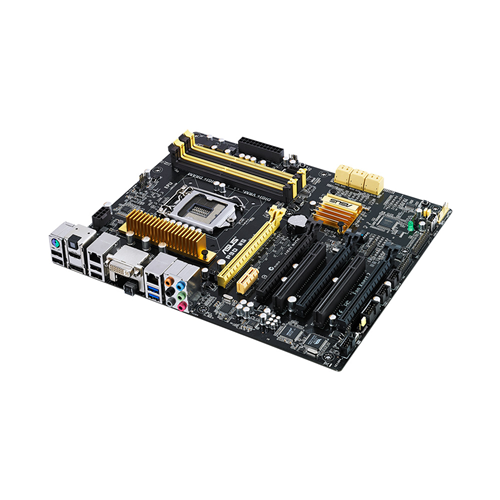

P9D WS

P9D WS

Xeonシリーズに対応しビデオカードの4枚搭載に対応するワークステーションマザー

型番：ASU-P9D/WS

メーカー製品HP

  • Intel C226
  • DDR3メモリ×4（最大32GB）
  • PCIe 3.0 x16×3、PCIe 2.0 x16×1、PCIe 2.0 x1×1、PCI×2
  • AMD 4-way CrossFireX
  • DisplayPort×1、HDMI×1、DVI-I×1
  • SATA 6Gb/s×6
  • 1000BASE-T×2
  • USB 3.0×4、USB 2.0×9
  • DIGI+ VRM 4＋2フェーズ
  • EPU、Fan Xpert 2
CPU
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Xeon® E3-1200/12x5 v3 series Processors
Supports Intel® 22 nm CPU
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
チップセット
Intel® C226
メモリ
4 x DIMM, Max. 32GB, DDR3- 1600/1333 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能
Integrated Graphics Processor *1
Multi-VGA output support : HDMI/DVI/DisplayPort 3.2.1 ports
- Supports HDMI with max. resolution 4000 x 2000 @ 24 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 3200 x 2000 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
マルチGPU機能
Supports AMD 4-Way CrossFireX Technology
拡張スロット
3 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x4/x4)
1 x PCIe 2.0 x16 (x4 mode)
1 x PCIe 2.0 x1 (x1 mode)
2 x PCI
ストレージ機能
Intel® C226 Chipset :
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
LAN機能
Intel® I210
オーディオ機能
Realtek® ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Operating System Support
Windows® 8 32/64-bit
Windows® 7 32/64-bit

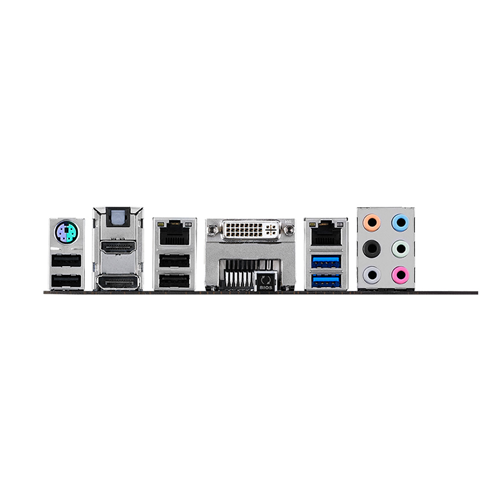

バックパネル
インターフェース
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-I
1 x DisplayPort
1 x HDMI
2 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
基板上
インターフェース
1 x AAFP connector
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x USB 2.0/1.1 vertical port(s)
1 x TPM header
1 x LPT1 header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x IEEE 1394a connector(s)
1 x CPU fan with PWM control
4 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel connector(s) (1 x 20 -pin)
1 x MemOK! button(s)

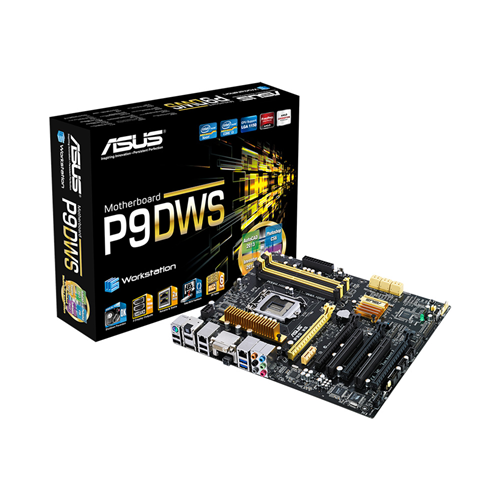

主な付属品
User's manual
1 x G.P. Diagnosis card *2
I/O Shield
1 x COM port cable(s)
6 x SATA 6Gb/s cable(s)
1 x Q-connector(s) (2 in 1)
1 x 2-port USB2.0 + 1394 bracket(s)
BIOS
64 Mb Flash ROM, EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash Utility, ASUS CrashFree BIOS 3
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
その他
*1: Only using processors which feature Intel HD Graphics,Intel integrated graphics could enable.
*2: If installing G.P Diagnosis card on TPM port, the PCIE card which installed on PCIEX16_4 should be less than 13cm*0.5cm (length*depth).For more detail,please go to this link
http://www.asus.com/Motherboards/P9D_WS/#support_Knowledge_E1F9E779-8883-4693-BB3D-82122294A894

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
