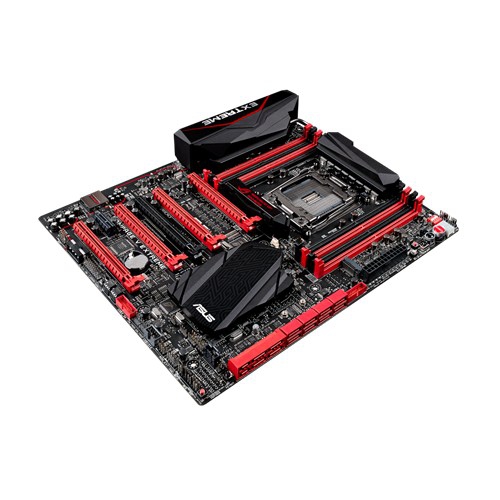

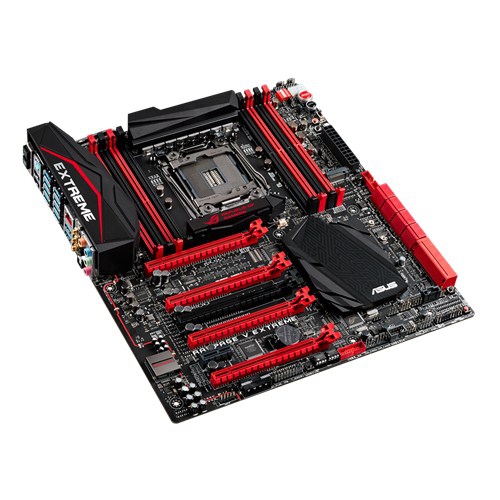

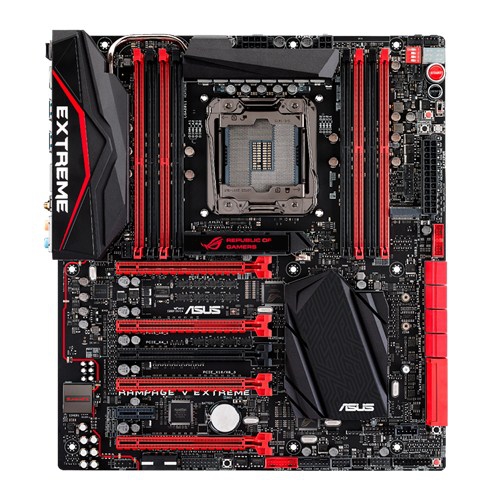

RAMPAGE V EXTREME/U3.1

RAMPAGE V EXTREME/U3.1

オーバークロッカーのために特別に設計を行ったプロ仕様のX99マザーボード

ピン数を増やして安定性を向上した互換ソケットの「OC Socket」を搭載
ASUS史上最高性能のファンコン機能「Fan Xpert 3」を搭載
低ノイズにこだわったデジ/アナ分離基板を使用したオーディオ機能「SupremeFX 2014」を搭載
32Gb/sの転送速度に対応するPCIe 3.0 x4接続のM.2スロットを搭載
最大転送速度1,300Mbpsに対応するIEEE802.11ac/n/a/g/b無線LAN機能を搭載
外付けコントローラーでPCのモニタやOCを行える「OC Panel」を付属

型番：ASU-RAMPAGE/V/EXTREME/U3.1

メーカー製品HP

CPU Intel Socket 2011-v3 Core i7 Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
チップセット Intel X99
メモリ 8 x DIMM, Max. 64GB, DDR4 3300(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
マルチGPU機能 Supports NVIDIA 4-Way SLI Technology *1
Supports NVIDIA 3-Way SLI Technology
Supports NVIDIA SLI Technology
Supports AMD 4-Way CrossFireX Technology
Supports AMD 3-Way CrossFireX Technology
Supports AMD CrossFireX Technology
拡張スロット 4 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x8/x8 or x16/x8/x8/x8 mode with 40-LANE CPU; x16, x16/x8, x8/x8/x8 mode with 28-LANE CPU) *2
1 x PCIe 2.0 x16 (x4 mode) *3
1 x PCIe 2.0 x1 *3
ストレージ機能 New Intel Core i7 Processors :
1 x M.2 Socket 3, , with M Key, type 2260/2280/22110 storage devices support ( Supports PCIE SSDs only)
Intel X99 chipset :
1 x SATA Express port, red, compatible with 2 x SATA 6.0 Gb/s ports
8 x SATA 6Gb/s port(s), red, *4,
Supports Intel Smart Response Technology, Intel Rapid Recovery Technology*5
ASMedia SATA Express controller : *6
1 x SATA Express port, red, compatible with 2 x SATA 6.0 Gb/s ports
LAN機能 Intel I218V, 1000BASE-T/100BASE-TX/10BASE-T×1, featuring GAMEFIRST III
Intel LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Anti-surge LANGuard
無線機能 Wi-Fi 802.11a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Up to 1300Mbps transfer speed
Bluetooth機能 Bluetooth V4.0
オーディオ機能 ROG SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- SupremeFX Shielding Technology
- ELNA premium audio capacitors
Audio Feature :
- Blu-ray audio layer Content Protection
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Sonic SoundStage
- Sonic SenseAmp
- Sonic Studio
- Sonic Radar II
USB Intel X99 chipset :
4 x USB 3.0 port(s) (4 at mid-board)
Intel X99 chipset : *7
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
ASMedia USB 3.0 controller : *8
10 x USB 3.0 port(s) (10 at back panel, blue)
OC Panel 2.6 " LCM display
EXTREME/NORMAL mode switch
EXTREME Mode for subzero OC benching:*9
- VGA Hotwire
- Subzero Sense
- Slow Mode
- Pause Switch
- VGA SMB header
- ProbeIt
- 4 x 4-pin extra fan connectors
NORMAL Mode for in-chassis usage:*10
- CPU Level Up OC button
- FanSpeed control button
- LCM backlight on/off button
I/O Ports:
- POWER：1 x SATA power connector
- ROG_EXT port：1 x 18-1 pin data connection port
オーバークロック関連機能 DirectCU thermal design
ROG Connect :
- RC Diagram
- RC Remote
- RC Poster
Extreme Engine Digi+ IV :
- IR3555 PoweIRstage
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
ROG Extreme OC kit :
- ReTry button
- Safe Boot button
- Start button
- Reset button
- Slow Mode
- LN2 Mode
- PCIe x16 Lane Switch
- Debug LED
ProbeIt
KeyBot
- CPU Level Up
- XMP
- Direct Key
UEFI BIOS features :
- ROG BIOS Print
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
GameFirst III
iROG
Extreme Tweaker
USB BIOS Flashback
Overclocking Protection :
- COP EX (Component Overheat Protection - EX)
- Voltiminder LED II
Special Features ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- USB 3.1 Boost
- Disk Unlocker
Operating System Support Windows 8.1
Windows 8
Windows 7

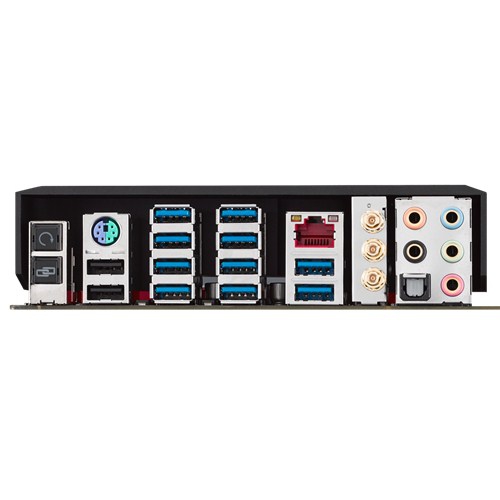

背面インターフェース 1 x PS/2 keyboard/mouse combo port(s)
1 x LAN (RJ45) port(s)
10 x USB 3.0 (blue)
2 x USB 2.0 (one port can be switched to ROG Connect)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Clear CMOS button(s)
1 x ROG Connect On/ Off switch(es)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0
基板上インターフェース 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA Express connector: red, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2 Socket 3 for M Key, type 2260/2280/22110 storage devices support ( Support PCIE SSD only)
1 x TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
6 x Chassis Fan connector(s) (6 x 4 -pin)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x Slow Mode switch(es)
9 x ProbeIt Measurement Points
3 x Thermal sensor connector(s)
1 x EZ Plug connector(s) (4-pin Molex power connector)
1 x Power-on button(s)
1 x Reset button(s)
1 x BIOS Switch button(s)
1 x LN2 Mode jumper(s)
1 x ROG extension (ROG_EXT) header(s)
1 x KeyBot Button
1 x Sonic SoundStage Button
1 x Safe Boot button
1 x ReTry button

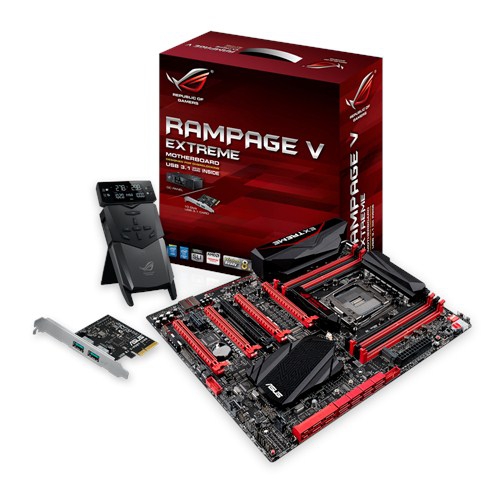

主な付属品 User's manual
I/O Shield
10 x SATA 6Gb/s cable(s)
1 x ASUS 3T3R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
1 x SLI bridge(s)
1 x CrossFire cable(s)
1 x Q-connector(s) (2 in 1)

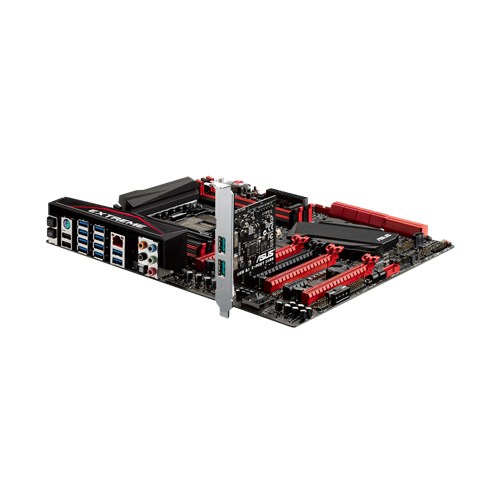

1 x ASUS USB 3.1 CARD(2-ports Type A)
3 x Thermal sensor cable pack(s)
1 x 12 in 1 ROG Cable Label(s)
1 x X-Socket 2 kit
1 x ROG Door Hanger(s)
OC Panel Kit:
- 1 x OC Panel(s)
- 1 x OC Panel 5.25-inch bay metal case
- 1 x OC Panel Cable(s)
- 1 x OC Panel screw pack(s)
BIOS 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
Manageability WfM2.0, DMI2.7, WOL by PME, PXE
サポートDVD Drivers
ROG GameFirst III
ROG RAMDisk
ROG CPU-Z
ROG Mem TweakIt
Kaspersky Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
HomeCloud
ASUS Utilities
フォームファクター／サイズ（W×D） Extended ATX Form Factor
12 inch x 10.7 inch ( 30.5 cm x 27.2 cm )
その他 1. 28-LANE CPUs can only support up to 3-Way SLI/ 3-Way CrossFireX
2. The PCIE_X8_4 slot shares bandwidth with M.2 x 4.
40-LANE CPU: The PCIeX8_4 slot can only be used in x4 mode or lower when used simultaneously with the M.2 connector. If x8 mode is used, the two connectors will be mutually exclusive.
28-LANE CPU: The PCIE_X8_4 slot will be disabled and the M.2 connector will always be enabled.
3. The PCIE_X4_1 (gray) slot shares bandwidth with the PCIE_X1_1 slot, USB3_E910 and SATAExpress_E1 connector. When the PCIE_X4_1 slot is occupied by an X1 or X2 device, the SATAEXPRESS_E1 will be disabled. When the PCIE_X4_1 slot is occupied by X4 device, the SATAEXPRESS_E1, USB3_E910 ports, and the PCIE_X1_1 slot will be disabled.
4. Due to chipset behavior, the SATA6G_78, SATA6G_910 ports do not support IRST including RAID configuration.
5. These functions will work depending on the CPU installed.
6. These SATA ports share bandwidth with the PCIE_X4_1 slot, and when the PCIE_X4_1 slot is ocuupied, the SATA ports will be disabled. These SATA ports are for data hard drives only. ATAPI devices are not supported.
7. 2 x USB2.0 port at mid-board shares with ROG extension (ROG_EXT) port.
8. USB3_E910 ports at back panel will be disabled when the PCIE_X4_1 slot is occupied by an X4 bandwidth device.
9. Extreme Mode capabilities, including V1, V2, DRAM and other voltage definitions, vary by chipset. Please refer to your motherboard manual for details.
10. One 5.25" drive bay is required for NORMAL Mode installation.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
