AMD「X470」チップセット搭載 Mini-ITXマザーボード

・AMD X470チップセット搭載
・AMD A-Series、第3世代AMD Ryzenプロセッサー対応
・拡張スロット:PCI-E 3.0(x16)x1
・ストレージ:SATA 3.0 (6Gb/s) x4、M.2 x1
・Realtek RTL8111Hギガビットイーサネット対応
・映像出力:HDMI x1、D-SUB x1
・寸法:170 x 170 mm

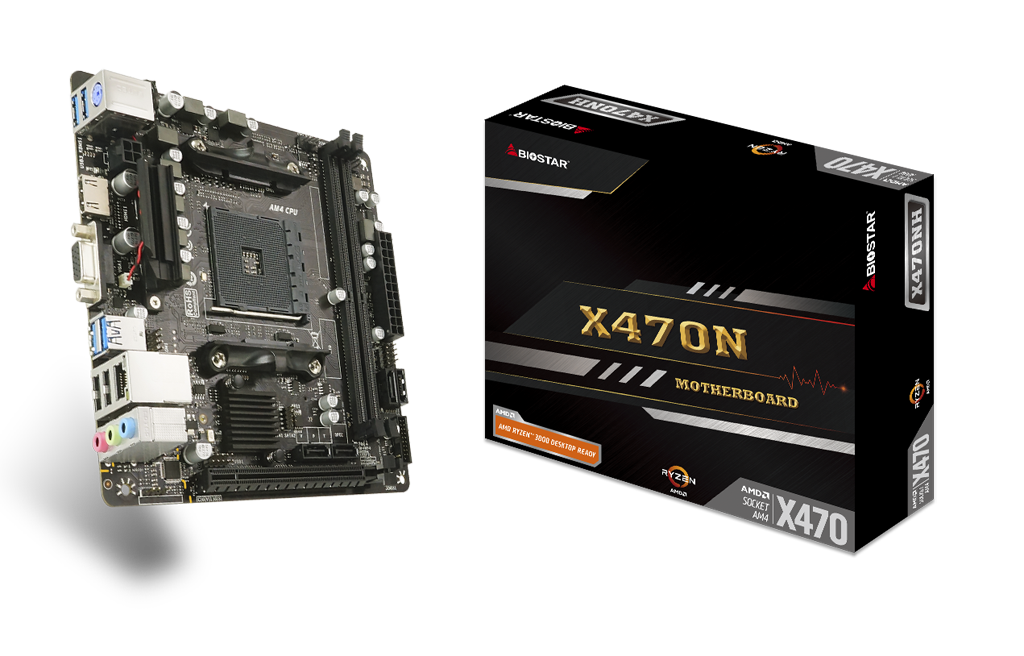

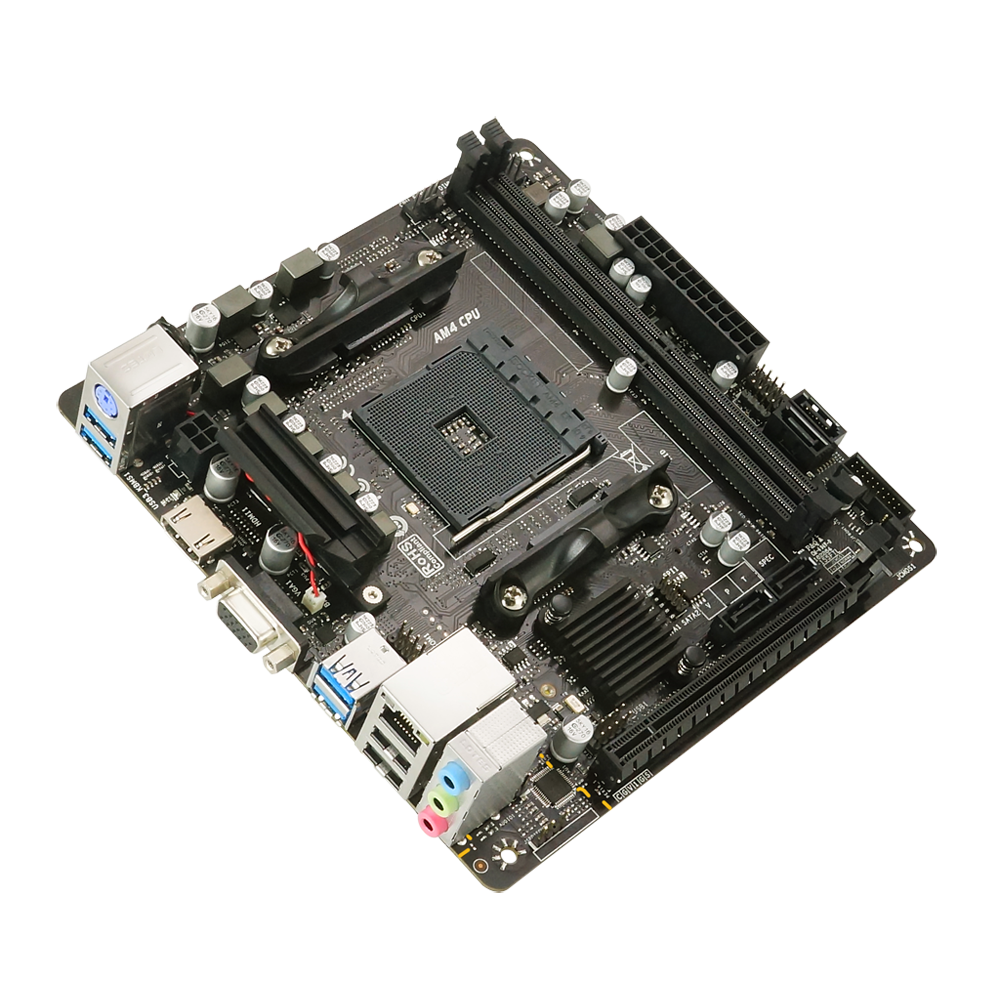

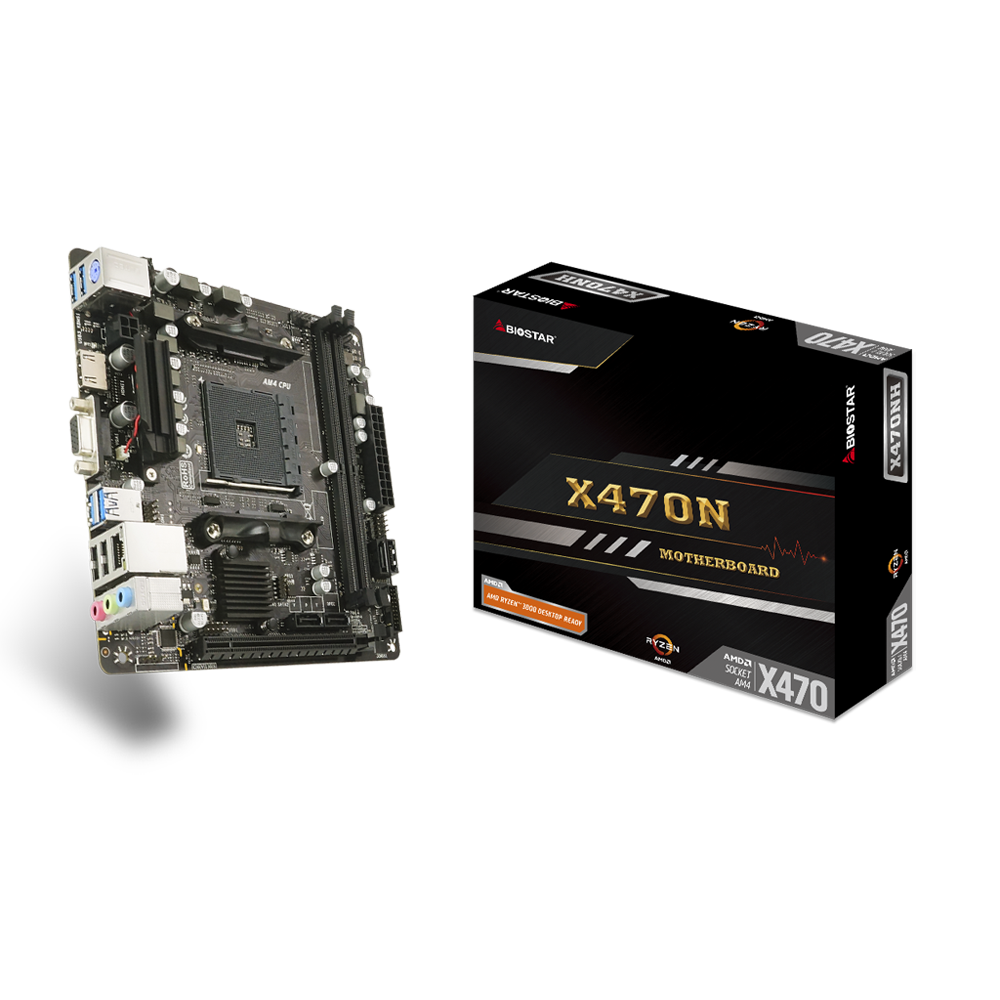

「X470NH」は、AMDチップセット「X470」を搭載するMini-ITXマザーボードです。M.2スロット×1、SATA 3.0スロット×4を装備。17×17cmのコンパクトサイズかつコストパフォーマンスの高い製品です。

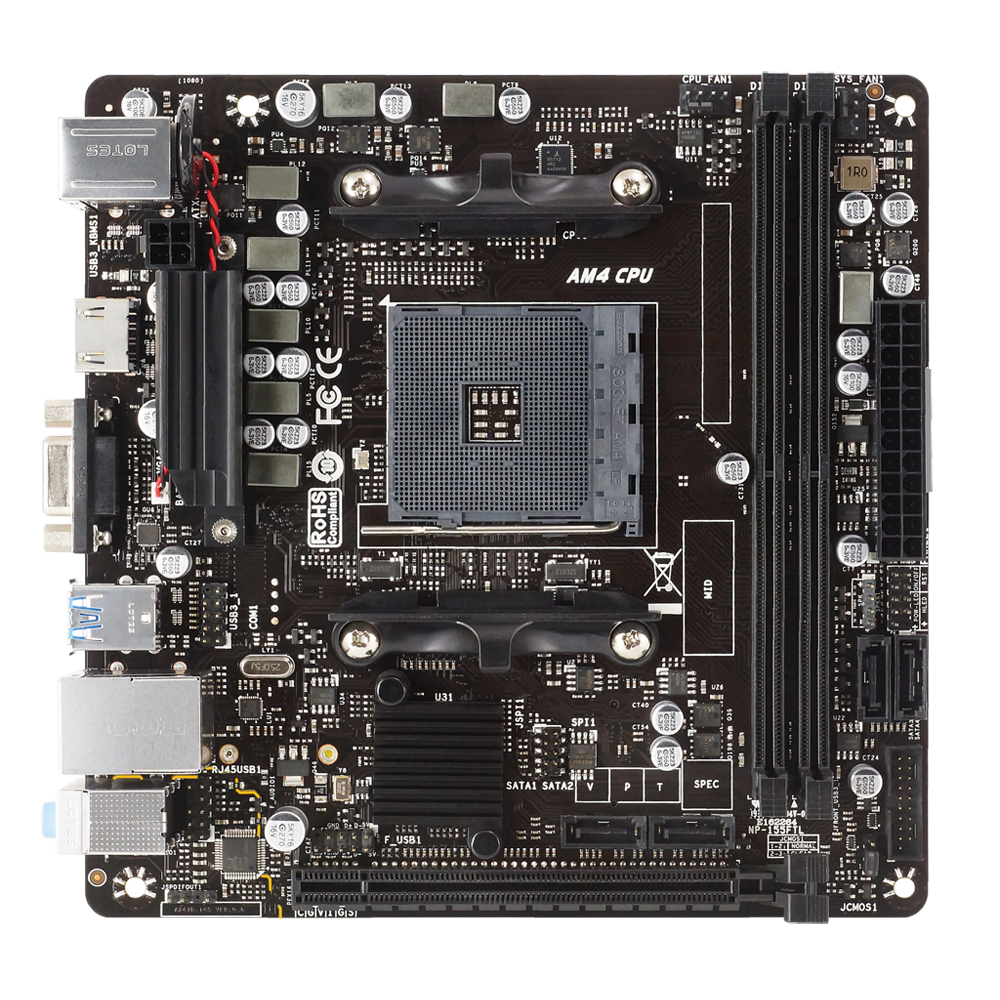

①AMD Socket AM4 CPU
②2 x DIMM DDR4-4000(OC)
③4 x SATA3 Connerctors
④1 x PCI-E 3.0 x 16 Slot
⑤4 x USB 3.1(Gen1)Connerctors

チップセット AMD X470
対応CPU Socket AM4 supports AMD® A-series APU, Ryzen APU / Ryzen CPU
* Please refer to www.biostar.com.tw for CPU support list
メモリー Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2667
Supports Dual Channel DDR4 2933(OC)/ 3200(OC)/ 3600(OC)/ 4000(OC)
2 x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory
Each DIMM supports non-ECC and ECC Un-buffered 8/ 16 GB DDR4 module
* DDR4 - 2667 only for Ryzen CPU
* Please refer to www.biostar.com.tw for Memory support list
Supports DX12
Supports HDCP
ストレージ 4x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1x M.2 (M Key) : Supports PCI-E 3.0 x4 (32Gb/s) & SATA III (6.0Gb/s) SSD
* M.2 : The bandwidth is depended on CPU
LAN Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
7.1 Channels, Blu-ray Audio
USB 6x USB 3.1 Gen1 (5Gb/s) port (4 on rear I/Os and 2 via internal header)
4x USB 2.0 port (2 on rear I/Os and 2 via internal header)
拡張スロット 1 x PCI-E 3.0 x 16 slot (Bristol / Reven Ridge x8 , Summit Ridge x16)

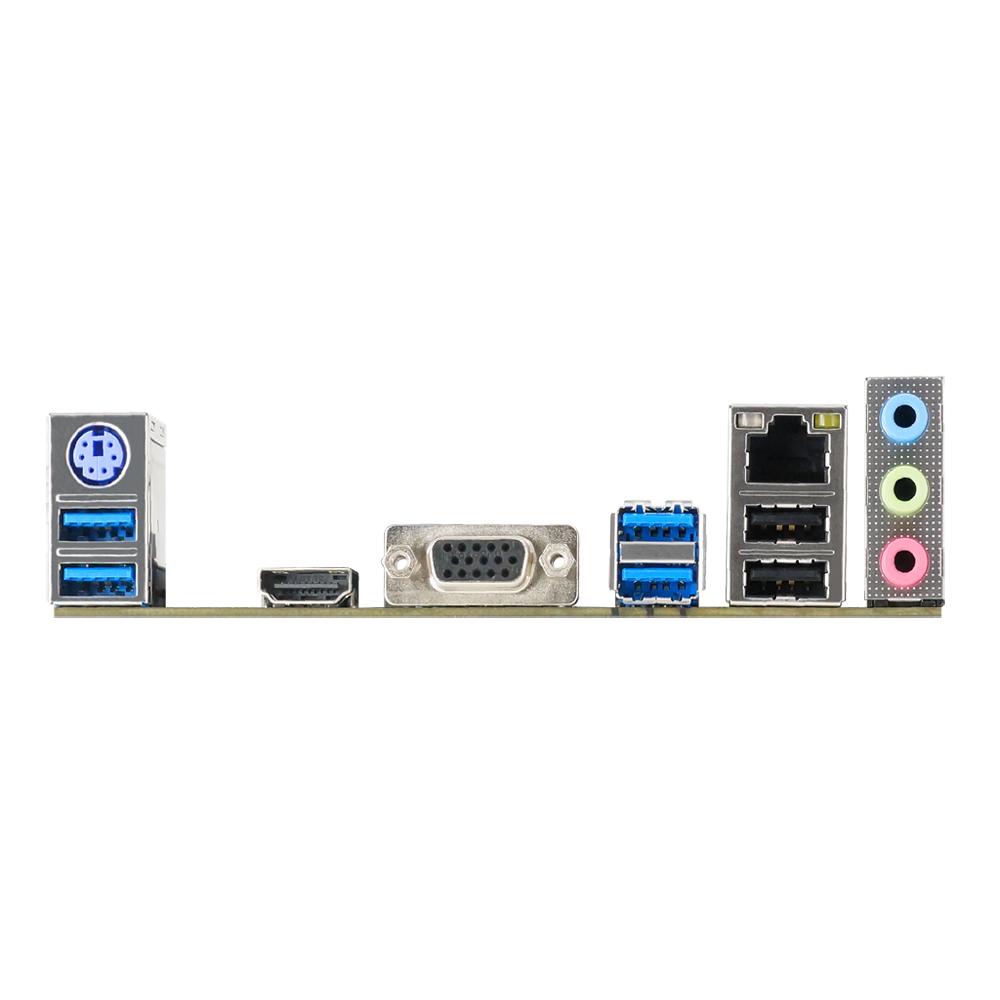

REAR I/O 1x PS/2 Keyboard Port
1x HDMI Port
1x VGA Port
1x LAN port
4x USB 3.1 Gen1 (5Gb/s) Port
2x USB 2.0 Port
3x Audio Jack
INTERNAL I/O 4x SATA III 6.0Gb/s Connectors
1x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.1 Gen1 (5Gb/s) Header (each header supports 2 USB 3.1 Gen1 ports)
1x 4-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Clear CMOS Header
1x Internal Stereo Speaker Header
1x COM Port Header
1x S/PDIF out Connector
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
寸法 Mini ITX Form Factor Dimension: 170 mm x 170 mm ( W x L )
対応OS Support Windows 7(64bit) / 10(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice
バンドルソフトウェア BullGuard
付属品 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES Supports uEFI GUI Interface BIOS
