特徴

Support AMD Ryzen CPU / APU
AMD B350 single chip architecture
Support 2-DIMM DDR4-2667/ 2400 up to 32G maximum capacity
BIOSTAR Hi-Fi Technology inside
Support DVI-D
Support USB 3.1 Gen1



製品仕様

Chipset AMD B350
CPU SUPPORT AMD A-series APU / Ryzen CPU / NPU for Socket AM4
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY Support Dual Channel DDR4 2667/ 2400/ 2133/ 1866 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
* DDR4 2667 for AMD Ryzen CPU
EXPANSION SLOT 1 x PCI-E x16 3.0 Slot(x16 for Ryzen CPU only, NPU/APU run at x8 speed)
2 x PCI-E x1 3.0 Slot
STORAGE 4 x SATA3 Connector
Support SATA RAID: 0,1,10
USB 4 x USB 3.1 Gen1 Port
1 x USB 3.1 Gen1 Header
2 x USB 2.0 Port
2 x USB 2.0 Port(only 5V power, up to 1.5A)
2 x USB 2.0 Header
LAN Realtek RTL8111H - 10/100/1000 Controller
Support Super LAN Surge Protection
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
CODEC Realtek ALC887 8-Channel HD Audio
Support Biostar Hi-Fi

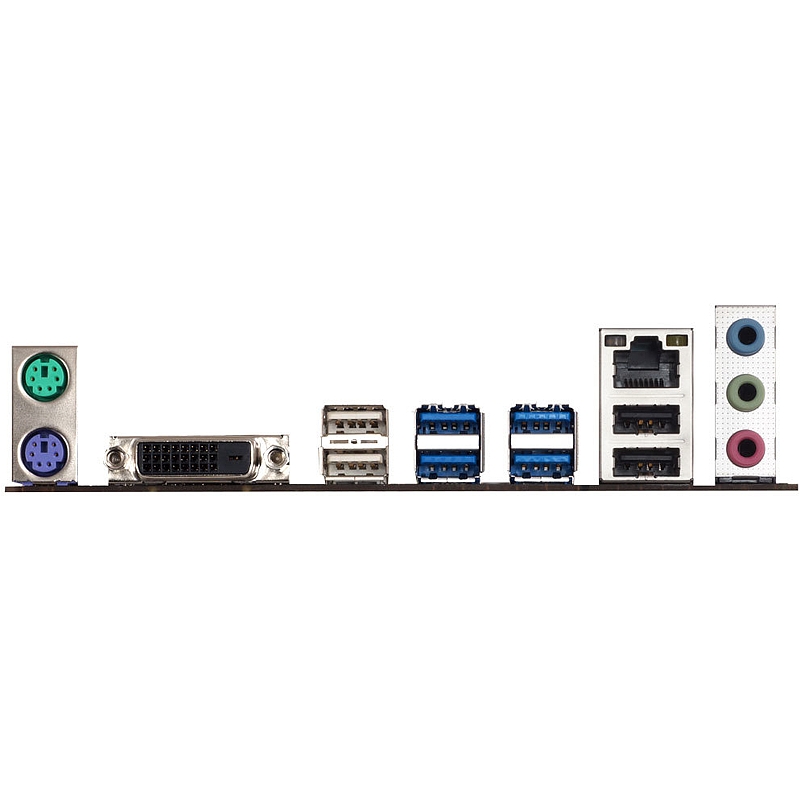

REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 3.1 Gen1 Port
2 x USB 2.0 Port
2 x USB 2.0 Port(only 5V power, up to 1.5A)
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
3 x Audio Connector
INTERNAL I/O 1 x USB 3.1 Gen1 Header
2 x USB 2.0 Header
4 x SATA3 6Gb/s Connector
1 x SATA Power Connector(for rear USB power enhancement)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
1 x Serial Header
2 x 5050 LED Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU / System Fan Control
System Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 22.6cm x 19.8cm ( W x L )
OS SUPPORT Support Windows 7(x64) / 10(x64)
BUNDLE SOFTWARE Racing GT Utility
BullGuard
Smart Speed LAN(Windows 7 only)
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES VIVID LED DJ
5050 LED FUN ZONE
Supports PURO Hi-Fi
Supports 100% Solid capacitor
Supports BIOS-Flasher
Supports BIOS Online Update

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
