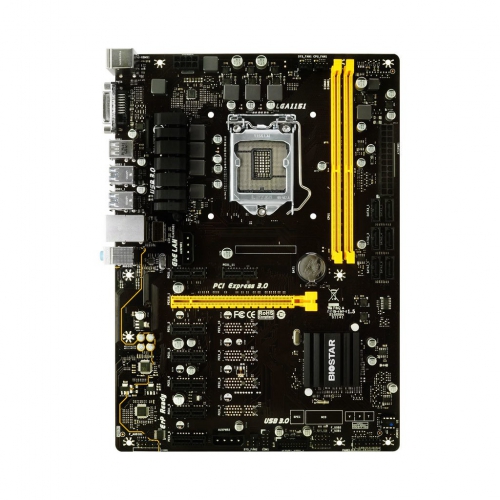

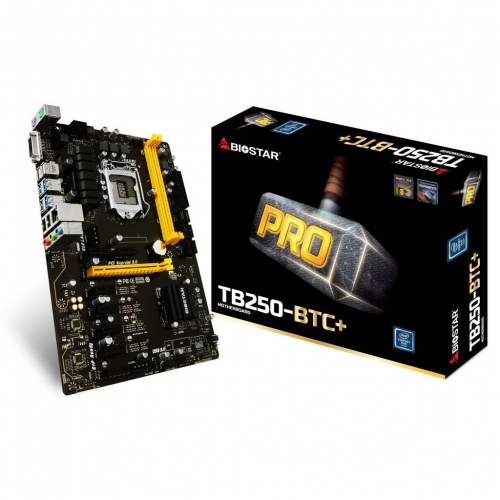

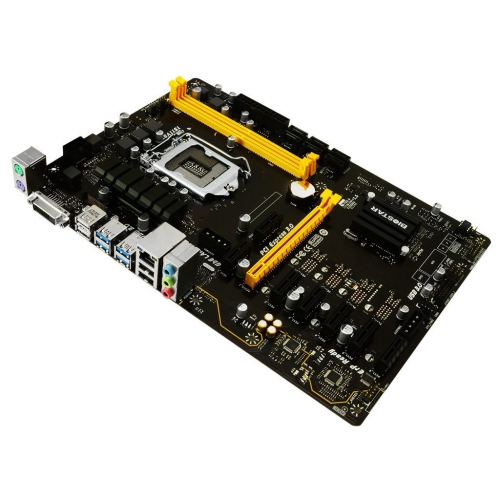

TB250-BTC+

TB250-BTC+

特徴

第7世代 Intel Coreプロセッサー 対応
Intel B250 シングルチップ アーキテクチャ
2-DIMM DDR4 2400/ 2133/ 1866 メモリ対応 最大 32GB
8x PCI-E スロット
DVI-D 対応
USB 3.0 対応



製品仕様

チップセット Intel B250
CPU SUPPORT Intel(R) Core(TM) i7 LGA 1151 Processor
Intel(R) Core(TM) i5 LGA 1151 Processor
Intel(R) Core(TM) i3 LGA 1151 Processor
Intel(R) Pentium(R) LGA 1151 Processor
Intel(R) Celeron(R) LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
メモリ Support Dual Channel DDR4 2400/ 2133/ 1866 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
* DDR4 2400 for 7th Generation Intel(R) Core(TM) Processor Family
拡張スロット 1 x PCI-E x16 3.0 Slot
7 x PCI-E x1 3.0 Slot(Note: PEX1_6/11 slot are not compatible w/ ATX standard, users need extra coonecting kit to install VGA card for crypto mining.)
ストレージ 6 x SATA3 Connector
USB 4 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Port(only 5V power, up to 1.5A)
2 x USB 2.0 Header
LAN Realtek RTL8111H - 10/100/1000 Controller
Support Super LAN Surge Protection
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
サウンド Realtek ALC887 8-Channel HD Audio
Support HD Audio

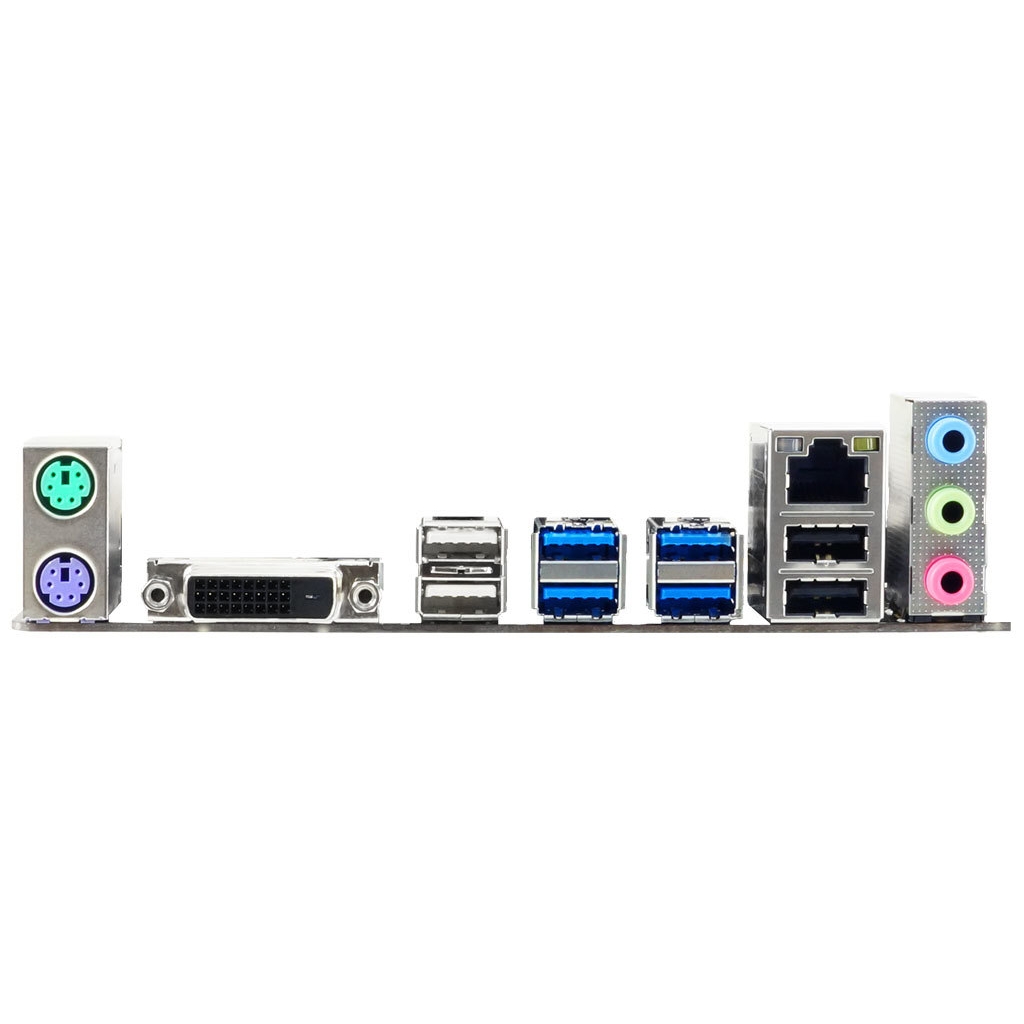

REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 3.0 Port
2 x USB 2.0 Port
2 x USB 2.0 Port(only 5V power, up to 1.5A)
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
3 x Audio Connector
INTERNAL I/O 1 x USB 3.0 Header
2 x USB 2.0 Header
6 x SATA3 6Gb/s Connector
1 x SATA Power Connector(for rear USB power enhancement)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
2 x System Fan Header
1 x Serial Header
2 x PCI-E 12V 4Pin Connector(Must be installed when using for bitcoin mining.)
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
マザーボードサイズ ATX Form Factor Dimension: 29.5cm x 21cm ( W x L )
対応OS Support Windows 10(x64) for Intel 7th Generation Processor
※Support Windows 7 / 8.1(x64) / 10(x64) for Intel 6th Generation Processor
BUNDLE SOFTWARE BullGuard
Smart Speed LAN(Windows 7/ 8.1 only)
Intel Rapid Storage Technology
付属品 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
FEATURES Supports 100% Solid capacitor
Supports Charger Booster
Supports BIOS Online Update

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
