ROG STRIX Z490-A GAMING

ROG STRIX Z490-A GAMING

Intel Z490チップセット搭載・ATXマザーボード
ゲーマー向けROG STRIXシリーズ

・ソケット : LGA 1200
・対応CPU : 第10世代 Intel Core、Pentium Gold/Celeron プロセッサ
・チップセット : Intel Z490
・対応メモリ : DDR4-4600×4（最大128GB）
・拡張スロット : PCIe 3.0 x16×3、PCIe 3.0 x4×1、PCIe 3.0 x1×1
・画面出力 : DisplayPort 1.4×1、HDMI 1.4b×1
・ストレージ : M.2×2、SATA 6Gb/s×6
・Thunderbolt 3 : ヘッダー搭載
・有線LAN : 2.5GBASE-T×1
・USB（外部/内部）: USB 3.2 Gen 2×2 (2/0)、USB 3.2 Gen 1×7 (4/3)、USB 2.0×6 (2/4)
・フォームファクタ : ATX（305mm×244mm）

型番：ROG STRIX Z490-A GAMING

JAN：0192876676004

メーカー製品ページ



ROG Strix Z490-A ゲーミング マザーボードは、人目を引くゲーミングビルドを探している場合に最適です。そのサイバーパンクにインスパイアされた美学は、ROG Strix の活気に満ちた精神を体現した新しい白と銀の配色に表れています。ROG Strix Z490-A Gamingは、第10世代インテル®Core™ プロセッサーの要求に対応するように設計されており、そのブーストされた電力供給と改善された冷却設計により、オーバークロックや様々なパラメーターを簡単に調整するのに役立つAIの強化と直感的なダッシュボードを特徴としています。




対応CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
搭載チップセット Intel® Z490
メインメモリ
4 x DIMM, Max. 128GB, DDR4
4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
OptiMem II
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能 Integrated Graphics Processor
1 x DisplayPort 1.4 *
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
マルチGPU対応 Supports AMD 2-Way CrossFireX Technology
拡張スロット
Intel® 10th Gen Processors
3 x PCIe 3.0 x16 (x16 or x8+x4+x4)
Intel® Z490 Chipset
1 x PCIe 3.0 x4 (max at x2 mode)
1 x PCIe 3.0 x1
ストレージ機能
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® Z490 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready
LAN機能 Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
無線機能 M.2 slot only (Key E) (Support CNVI & PCIe interface)*
*Wi-Fi module is sold separately.
オーディオ機能 ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback *
Audio Feature :
- SupremeFX Shielding™ Technology
- Gold-plated jacks
- Optical S/PDIF in port(s) at back panel
- Premium Japanese audio capacitors
- Audio Cover
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB機能 Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A + USB Type-CTM)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)
Front USB Port ( Total 7 )
1 x USB3.1 Gen 1 front panel connector port(s)
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
Software Features ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
-5-way Optimization with AI Overclocking.
TPU
EPU
Digi+ VRM
Fan Xpert 4
Turbo app
-EZ update
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
ASUS Special Features Aura Feature
- Standard RGB headers
- Addressable Gen 2 RGB header
ASUS Q-Design
-ASUS Q-DIMM
-ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
-ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
ASUS EZ DIY
- BIOS FlashBackTM button
- 1 x BIOS FlashbackTM LED
- Procool II
- Pre-mounted I/O Shield
- SafeSlot

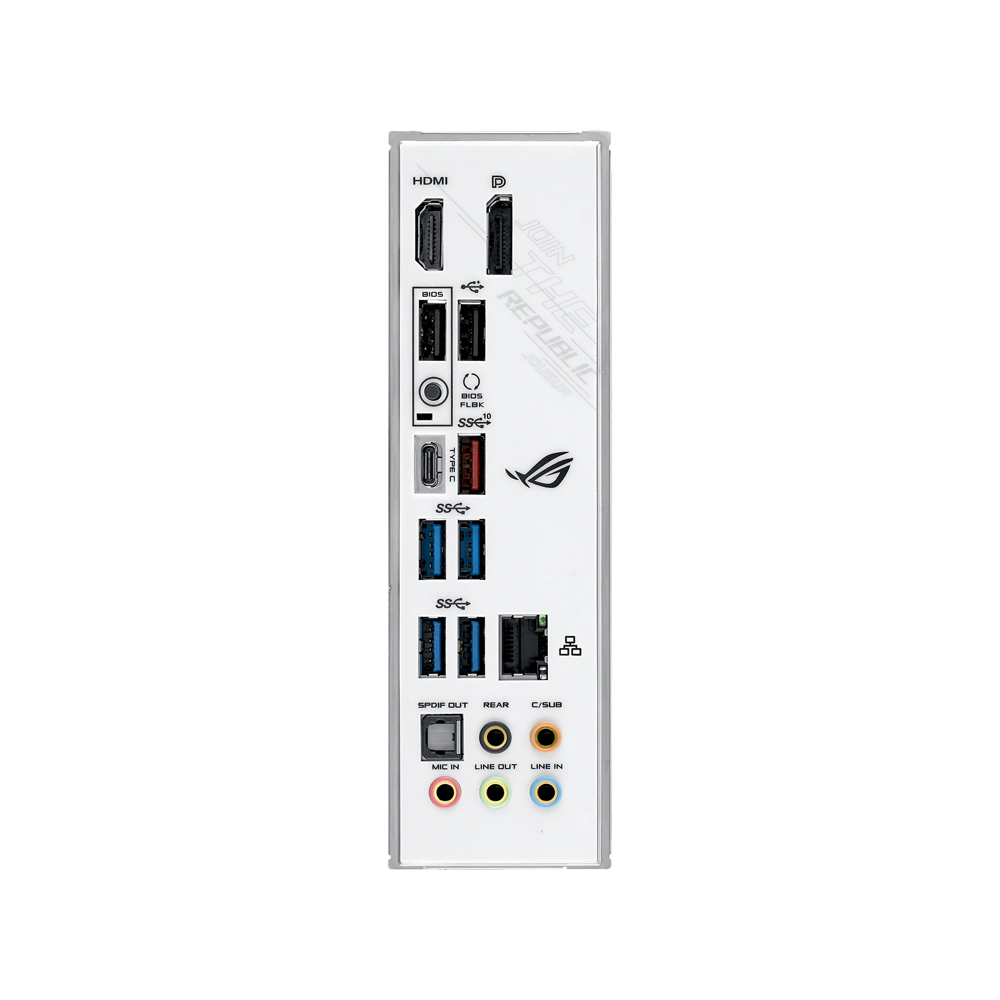

背面インターフェース 1 x Intel® I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen 2 (1 x Type-A + USB Type-CTM)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
1 x Optical S/PDIF out
1 x USB BIOS FlashBack™ Button(s)
5 x Gold-plated audio jacks
基板上インターフェース 1 x M.2_FAN connector
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Addressable RGB header
1 x AAFP connector
2 x Aura RGB Strip Headers
1 x USB 3.2 Gen 1 front panel TypeC™ connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x CPU_OV jumper
1 x VRM_HS_FAN Header
主な付属品 User's manual
1 x ASUS Fan Holder
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x Thermistor cable(s)
1 x ROG Thank you card
1 x 2-in-1 Rubber pad
1 M.2 SSD screw package(s)
1 M.2 Key E screw package(s)
1 ROG key chain
BIOS機能 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
管理機能 WOL by PME, PXE
OS Windows® 10 64-bit
フォームファクター（サイズW×D） ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他 * M.2_1 shares bandwidth with SATA6G_2. When M.2_1 is populated SATA6G_2 will be disabled.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
