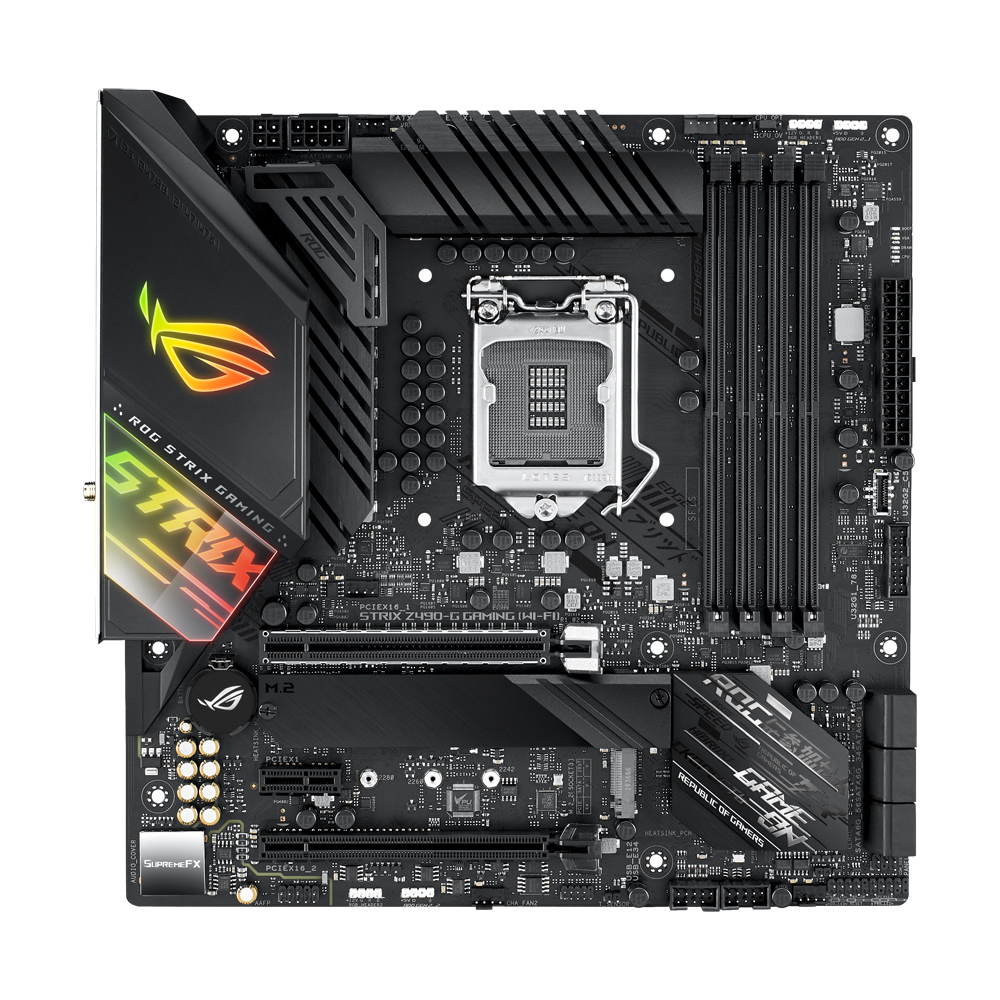

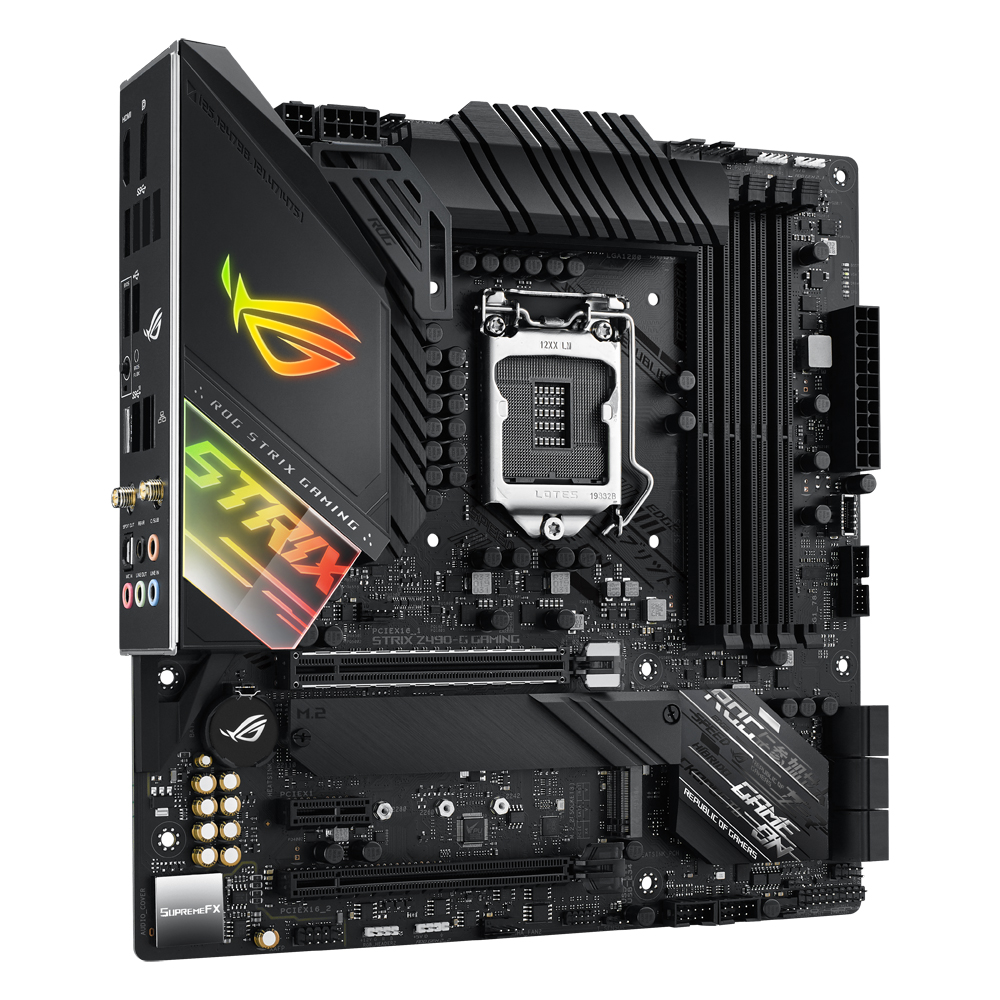

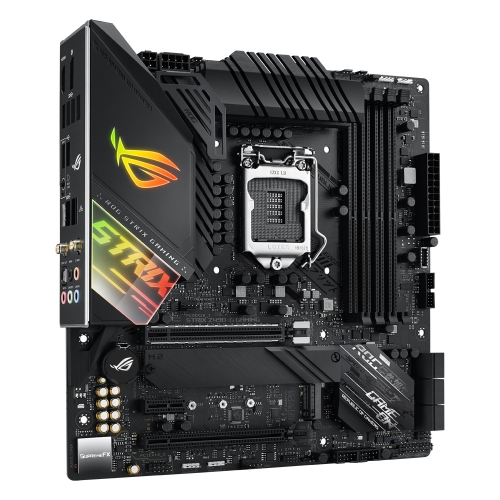

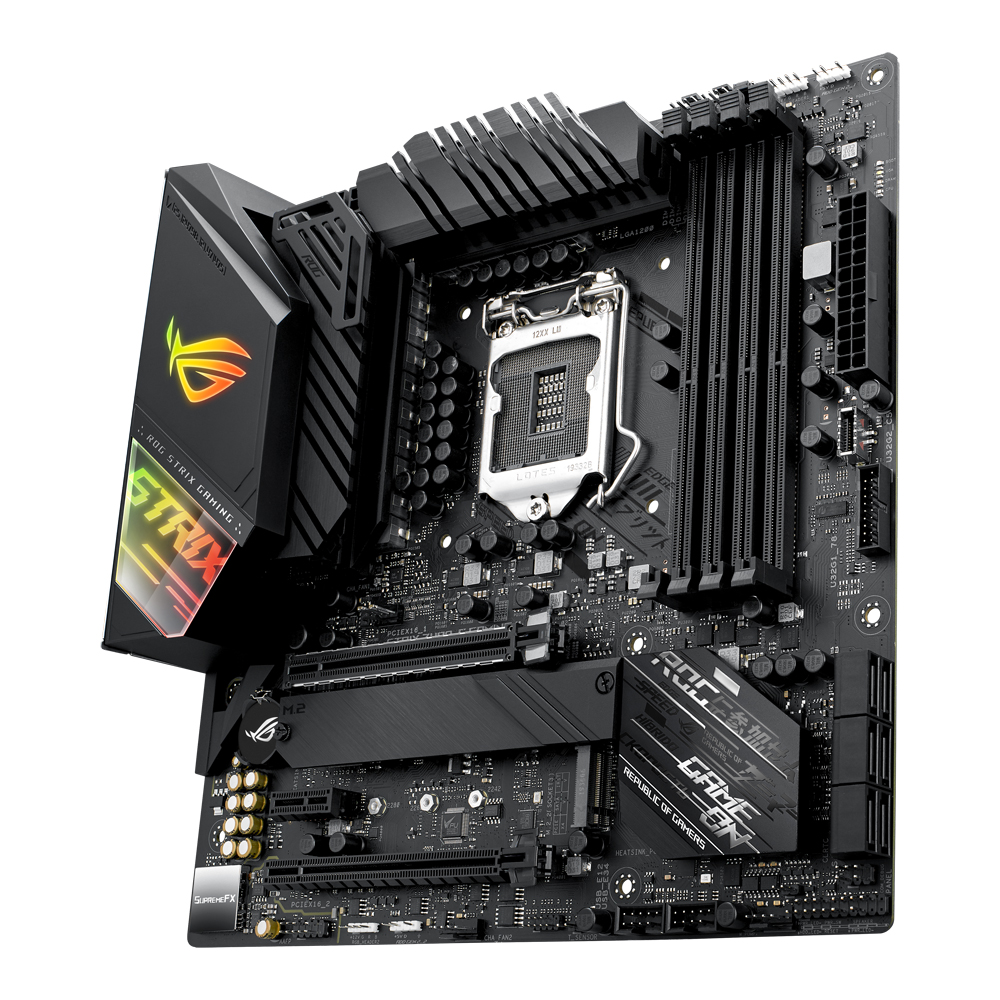

ROG STRIX Z490-G GAMING (WI-FI)

ROG STRIX Z490-G GAMING (WI-FI)

Intel Z490チップセット搭載・Micro-ATXマザーボード
ゲーマー向けROG STRIXシリーズ・Wi-Fi対応モデル

・Intel Z490チップセット搭載
・対応CPU : 第10世代 Intel Core、Pentium Gold/Celeron プロセッサ
・ソケット : LGA 1200
・対応メモリ : DDR4-4600×4（最大128GB）
・拡張スロット : PCIe 3.0 x16×2、PCIe 3.0 x1×1
・画面出力 : DisplayPort 1.4×1、HDMI 1.4b×1
・ストレージ : M.2×2、SATA 6Gb/s×6
・無線 : Wi-Fi 6 (ax/ac/n/a/g/b)、Bluetooth V5.1
・有線LAN : 2.5GBASE-T×1
・USB（外部/内部）: USB 3.2 Gen 2×3 (2/1)、USB 3.2 Gen 1×6 (4/2)、USB 2.0×6 (2/4)
・フォームファクタ : microATX（244mm×244mm)

型番：ROG STRIX Z490-G GAMING (WI-FI)

JAN：0192876680407

メーカー製品ページ


ROG Strix Z490-G Gaming (Wi-Fi) マザーボードは、最新の第10世代インテル® Core™ プロセッサーを最大限に活用するために、電力供給、最適化された冷却設計、直感的な ROG ソフトウェアを搭載しています。性能だけでなく、サイバーパンクにインスパイアされたデザインと鏡面ステンレス調のStrixネームプレートにより、見た目にもこだわったマザーボードとなりました。










対応CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
搭載チップセット Intel® Z490
メインメモリ 4 x DIMM, Max. 128GB, DDR4
4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能 Integrated Graphics Processor
1 x DisplayPort 1.4 **
1 x HDMI 1.4b *
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
マルチGPU対応 Supports AMD 2-Way CrossFireX Technology
拡張スロット Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode) *1
Intel® Z490 Chipset
1 x PCIe 3.0 x16 (max at x4 mode) *2
1 x PCIe 3.0 x1
ストレージ機能
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® Z490 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready
LAN機能 Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
無線機能 Intel® Wi-Fi 6 AX201
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports CNVI interface

Bluetooth機能		 Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.
オーディオ機能 ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback *
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Premium Japanese audio capacitors
- Audio Cover
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB機能 Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)
Front USB Port ( Total 7 )
1 x USB 3.2 Gen 2 port(s)(1 x USB Type-C®)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)
Software Features ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- 5-Way Optimization with AI Overclocking
TPU
EPU
Digi+ VRM
Xpert 4
Turbo app
- EZ update
AI Charger
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
ASUS Special Features Extreme Engine Digi+
- 5K Black Metallic Capacitors
- ON-semi NCP302045
- MicroFine Alloy Choke
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
- Aluminum heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Procool II
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- Standard RGB header(s)
- Addressable Gen 2 RGB header(s)

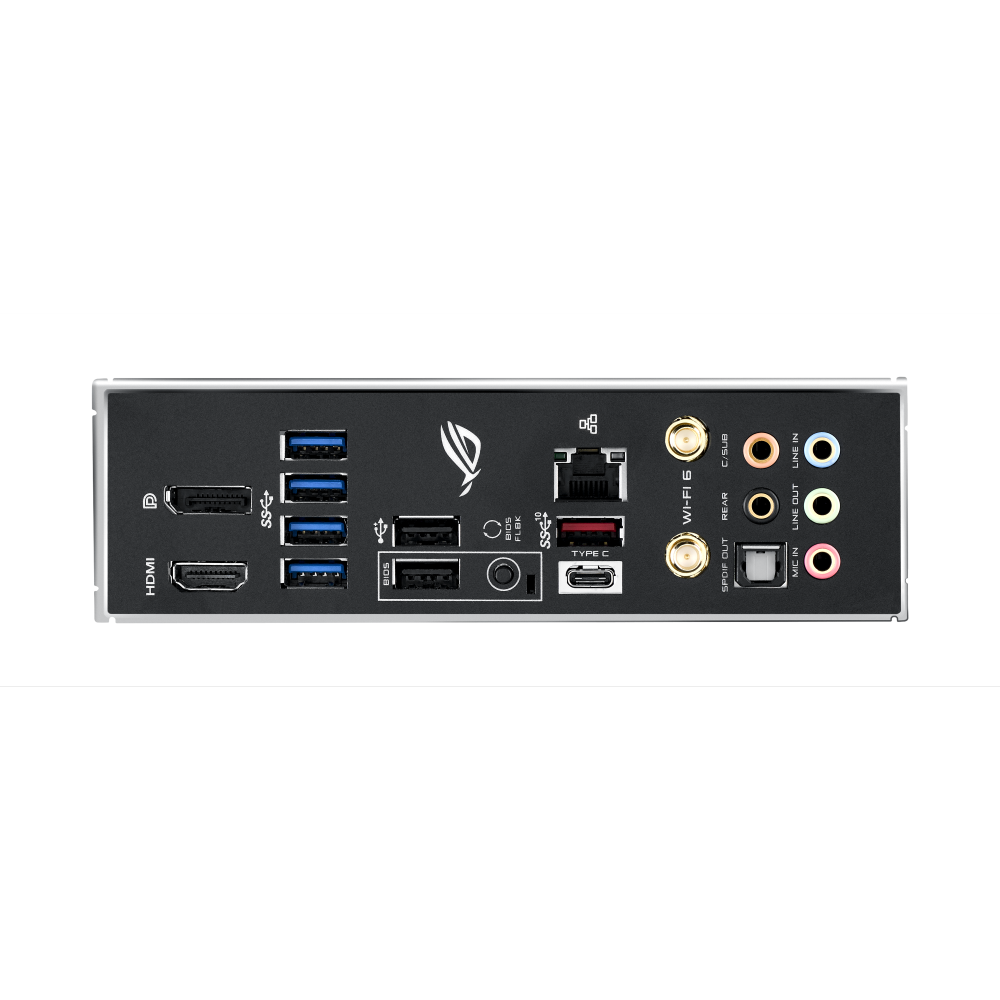

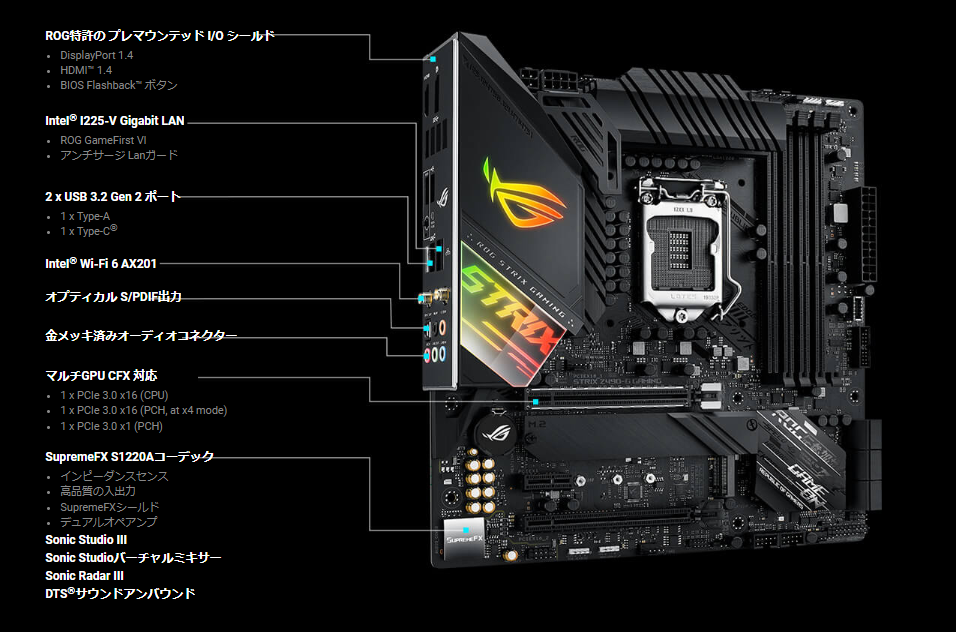

背面インターフェース 1 x Intel® I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
1 x Optical S/PDIF out
1 x USB BIOS FlashBack™ Button(s)
1 x ASUS Wi-Fi Module
5 x Gold-plated audio jacks

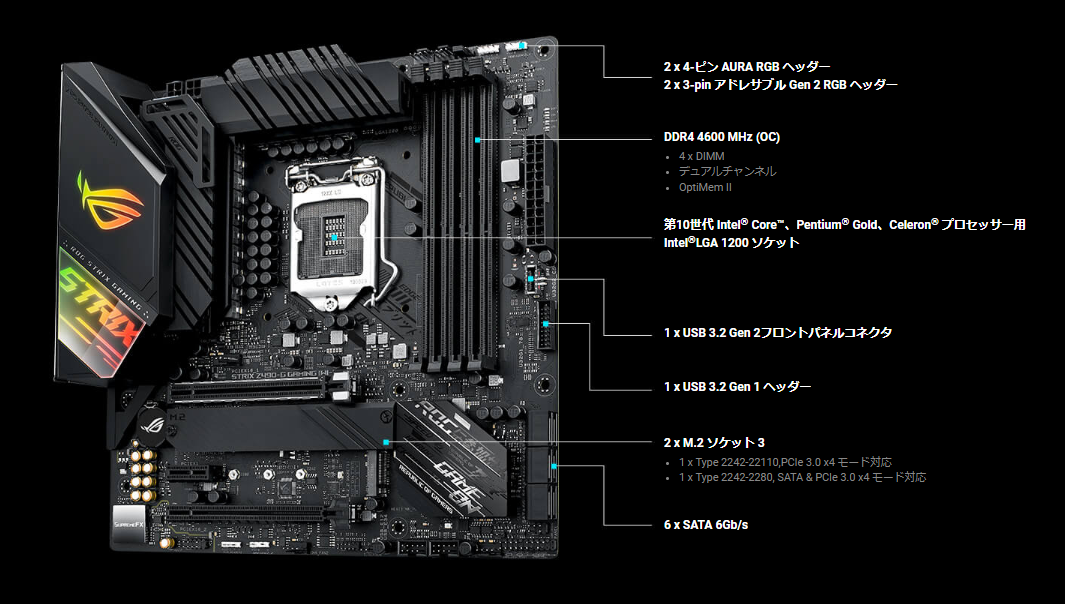

基板上インターフェース 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x W_PUMP+ connector
2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x VRM_HS_FAN Header
主な付属品 User's manual
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x ROG Thank you card
1 x 2-in-1 Rubber pad

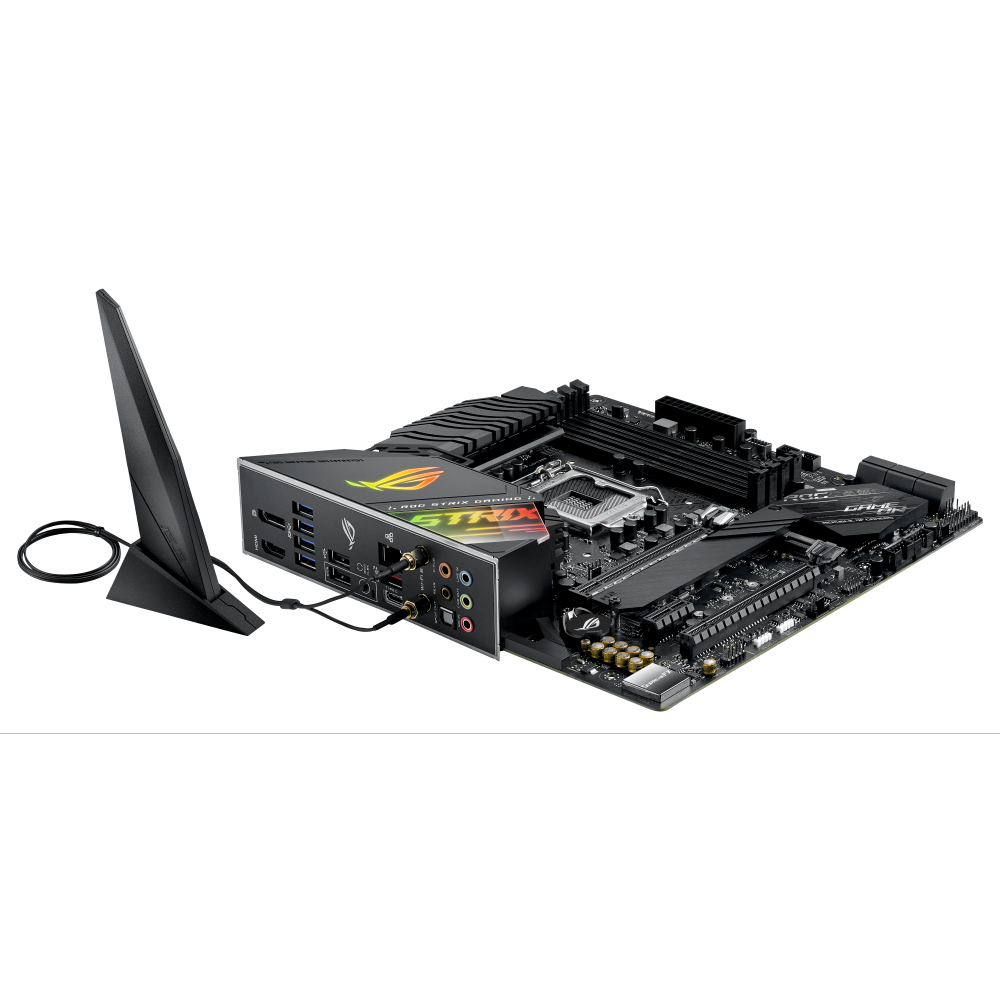

1 x Wi-Fi moving antenna
1 x M.2 SSD screw package(s)
1 ROG key chain
BIOS機能 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
管理機能 WOL by PME, PXE
OS Windows® 10 64-bit
フォームファクター（サイズW×D） mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
その他 *1. Support PCIe bifurcation for RAID on CPU function.
*2. When PCIe 3.0 x16_2 runs at x4 mode, SATA6G_56 will be disabled.
*3. M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
