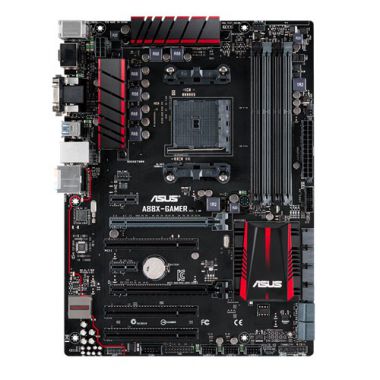

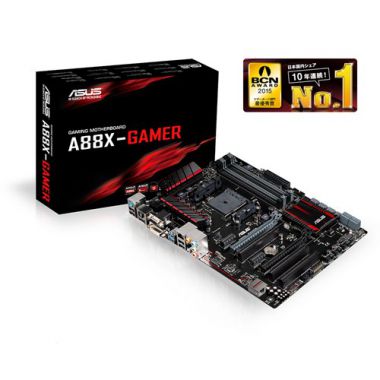

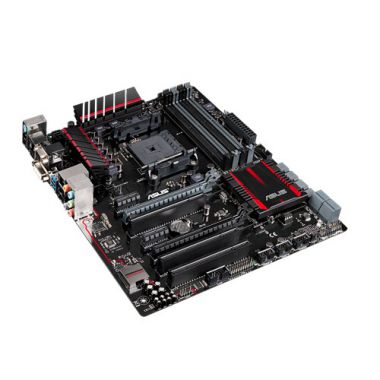

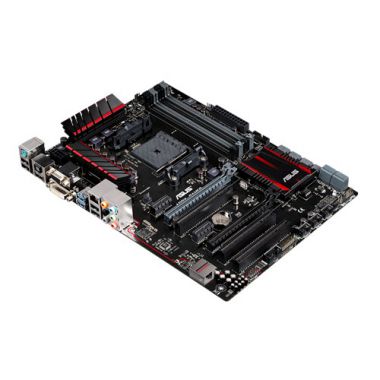

A88X-GAMER

A88X-GAMER

A88X gaming motherboard with an FM2+ socket, SupremeFX audio, Intel LAN and Gamer&
039;s Guardian components for absolute fun

SupremeFX- Flawless audio that makes you part of the game
Intel Gigabit Ethernet- Networking that just goes faster
Gamer's Guardian- The real-world protection
AI Suite 3? Optimized performance, always!
GPU Boost-Unlock integrated graphics performance

型番：ASU-A88X-GAMER

メーカー製品HP

CPUAMD Socket FM2+ Athlon/A- Series Processors
Supports CPU up to 4 cores
Supports AMD Turbo Core 3.0 Technology
* Refer to www.asus.com for CPU support list
チップセット AMD A88X (Bolton D4)
メモリ4 x DIMM, Max. 64GB, DDR3- 2400(O.C.)/2250(O.C.)/2200(O.C.)/2133/1866/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Support AMD Memory Profile (AMP) memory
* The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the motherboard.
グラフィックス機能Integrated AMD Radeon R/HD8000/HD7000 Series Graphics in the A-Series APU
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1200 @ 60 Hz*1
- Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
Maximum shared memory of 2048 MB
AMD Dual Graphics technology support *2
マルチGPU機能Supports AMD Quad-GPU CrossFireX Technology
拡張スロット1 x PCIe 3.0/2.0 x16 (x16 mode) *3
1 x PCIe 2.0 x16 (max at x4 mode, black)
2 x PCIe 2.0 x1
3 x PCI
ストレージ機能AMD A88X FCH(Bolton D4) chipset :
8 x SATA 6Gb/s port(s), graywith M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
Support Raid 0, 1, 5, 10, JBOD
LAN機能Intel I211-AT, 1000BASE-T/100BASE-TX/10BASE-T×1
オーディオ機能SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 115 dB SNR stereo playback output
Audio Feature :
- SupremeFX Shielding Technology
- ELNA premium audio capacitors
- Optical S/PDIF out port(s) at back panel
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- EMI protection cover to prevent electrical noise to affect the amplifier quality
USBAMD A88X FCH(Bolton D4) chipset :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
AMD A88X FCH(Bolton D4) chipset :
10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
Special FeaturesGamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- 10K Black Metallic Capacitors
- Stainless Steel Back I/O

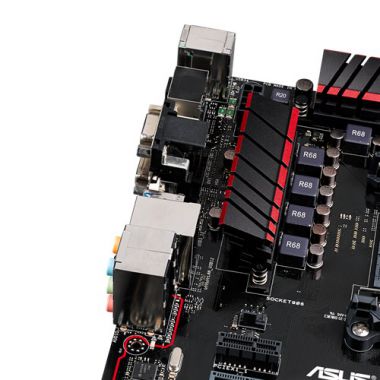

- DIGI+ VRM
ASUS EPU :
- EPU
ASUS Exclusive Features :
- TurboV EVO
- GPU Boost
- AI Suite 3
- Ai Charger
- USB 3.0 Boost
- Disk Unlocker
Interactive HomeCloud
- Media Streamer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM
Operating System SupportWindows 8.1 64ビット/32ビット
Windows 8 64ビット/32ビット
Windows 7 64ビット/32ビット

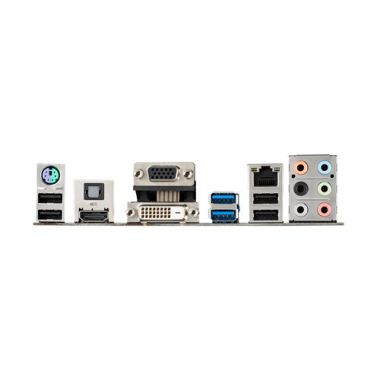

背面インターフェース1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
基板上インターフェース1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x TPM header
1 x COM port(s) connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
主な付属品User's manual
ASUS Q-Shield
2 x SATA 6Gb/s cable(s)
BIOS64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 My Favorites and ASUS DRAM SPD (Serial Presence Detect) memory information
サポートDVDDrivers, ASUS utilities, EZ Update, Anti-virus software (OEM version)
フォームファクター／サイズ（W×D）ATX Form Factor
12 inch x 9.0 inch ( 30.5 cm x 22.9 cm )
その他*1: *Only FM2+ APU can support up to 4096 x 2160 resolution display via HDMI port.
*2: Refer to http://www.amd.com/us/products/technologies/dual-graphics/Pages/dual-graphics.aspx#3 for the discrete GPUs which support Dual Graphics technology.
*3: Only FM2+ Processors can support PCIe3.0.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
