H81T

H81T

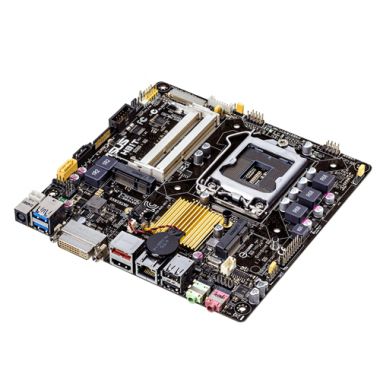

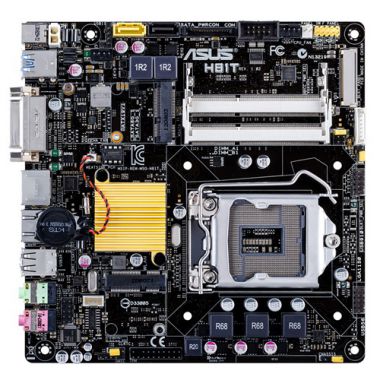

Intel H81チップセットを搭載するThin Mini-ITXマザーボード

- Intel H81
- DDR3 SO-DIMMメモリ×2（最大16GB）
- PCIe 2.0 x1 Mini Card×1
- HDMI×1、DVI-I×1、LVDS×1
- SATA 6Gb/s×1、SATA 3Gb/s×1、mSATA 6Gb/s×1、eSATA 3Gb/s×1
- 1000BASE-T×1
- USB 3.0×2、USB 2.0×7
- Fan Xpert
- Mini-ITXフォームファクター（Thin Min

型番：ASU-H81T

メーカー製品HP

CPUIntel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
チップセット Intel H81
メモリ2 x SO-DIMM, Max. 16GB, DDR3- 1600/1333/1066 MHz Memory
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI-I/LVDS ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-I with max. resolution 1920 x 1200 @ 60 Hz
- Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz
Supports up to 2 displays simultaneously
拡張スロット1 x mini-PCIe 2.0 x1 (half-length, black)
ストレージ機能Intel H81 chipset :
1 x SATA 6Gb/s port(s), yellow
1 x SATA 3Gb/s port(s), black
1 x mini-SATA 6Gb/s port(s), black
1 x eSATA 3Gb/s port(s), red
LAN機能Realtek 8111G, 1000BASE-T/100BASE-TX/10BASE-T×1
オーディオ機能Realtek ALC887-VD 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function
USBIntel H81 chipset :
2 x USB 3.0 port(s) (2 at back panel, )
Intel H81 chipset :
7 x USB 2.0 port(s) (2 at back panel, , 5 at mid-board)
Special FeaturesASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors
Operating System SupportWindows 8
Windows 7

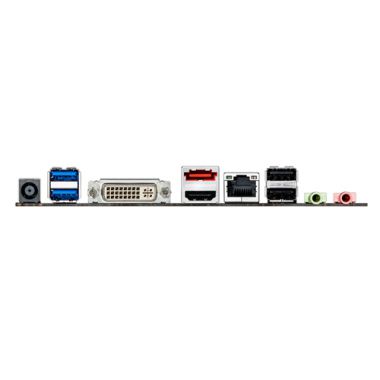

背面インターフェース1 x DVI-I
1 x HDMI
1 x eSATA 3Gb/s
1 x LAN (RJ45) port(s)
2 x USB 3.0
2 x USB 2.0
2 x Audio jack(s)
1 x DC power connector(s)
基板上インターフェース3 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)
1 x TPM header
1 x COM port(s) connector(s)
1 x SATA 6Gb/s connector(s)
1 x SATA 3Gb/s connector(s)
1 x SATA power connector(s)
1 x mSATA connector
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
1 x 2-pin internal DC power connector
1 x Stereo speaker connector
1 x DMIC header
1 x Backlight inverter voltage selection header
1 x FPD brightness header
1 x Panel voltage selection header
1 x Panel off header
1 x LVDS connector(s)
主な付属品User's manual
I/O Shield
Thin Mini ITX I/O Shield
1 x SATA power cable
1 x SATA 3Gb/s cable(s)
1 x SATA 6Gb/s cable(s)
BIOS64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
ManageabilityWfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
サポートDVDDrivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)
フォームファクター／サイズ（W×D）Thin Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17.0 cm x 17.0 cm )

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
