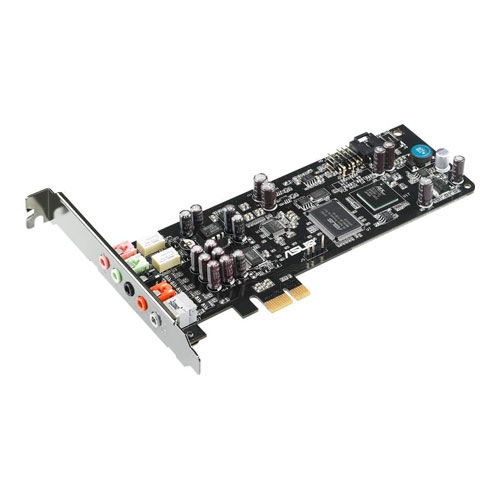

XONAR DSX

XONAR DSX

PCI Express 7.1-channel audio card

GX2.5 for realistic 3D gaming audio effectsts
DTS? Connect technology for an immersive 7.1 surround experience
192k/24bit True PC Hi-Fi Enjoyment
Swappable OPamp socket - Tune up your own sound with ease
Auto-detect front-panel - best flexibility and connectivit
Audio InterfacePCI Express
Audio PerformanceOutput Signal-to-Noise Ratio (A-Weighted) (Front-out) :
107 dB
Input Signal-to-Noise Ratio (A-Weighted) :
100 dB
Output THD+N at 1kHz (Front-out) :
0.0017 %(-95 dB)
Input THD+N at 1kHz :
0.0017 %(-95 dB)
Frequency Response (-3dB, 24bit/96KHz input) :
10 Hz to 48 KHz
Output/Input Full-Scale Voltage :
ChipsetAudio Processor :ASUS AV66 High-Performance Sound Processor (Max. 192KHz/24bit)
Sample Rate and ResolutionAnalog Playback Sample Rate and Resolution :
44.1K/48K/96K/192KHz @ 16bit/24bit
Analog Recording Sample Rate and Resolution :
44.1K/48K/96KHz @ 16bit/24bit
S/PDIF Digital Output :
44.1K/48K/96K/192KHz @ 16bit/24bit
ASIO Driver Support :
44.1K/48K/96K/192KHz @ 16bit/24bit
ConnectivityAnalog Output
4 x 3.5 mm jack (1/8") (Front out/Side out/Center-Subwoofer out/Rear out)
Analog Input
1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)
Digital
1 x S/PDIF out (1 x Optical (Toslink)/(combo with rear out))
1 x Front-Panel Header
1 x Aux in (4-pin header)
Special FeaturesDTS Technologies : DTS Interactive Encoder/DTS Neo:PC technologies
Smart Volume Normalizer
Xear 3D Virtual Speaker Shifter
Karaoke Functions
FlexBass
10 -band Equalizer
27 Environment Effects
VocalFX
AccessoriesS/PDIF optical adaptors x 1
Low-profile bracket x 1
Quick start guide x 1
Dimensions64.4 x 167.64 mm ( L x W )
