ASUS正規代理店である株式会社アユート（本社：東京都文京区）では、2020年9月11日より、以下のB550チップセット搭載マザーボード製品が取り扱い開始となりますので、ここにお知らせいたします（販路限定にて販売）。

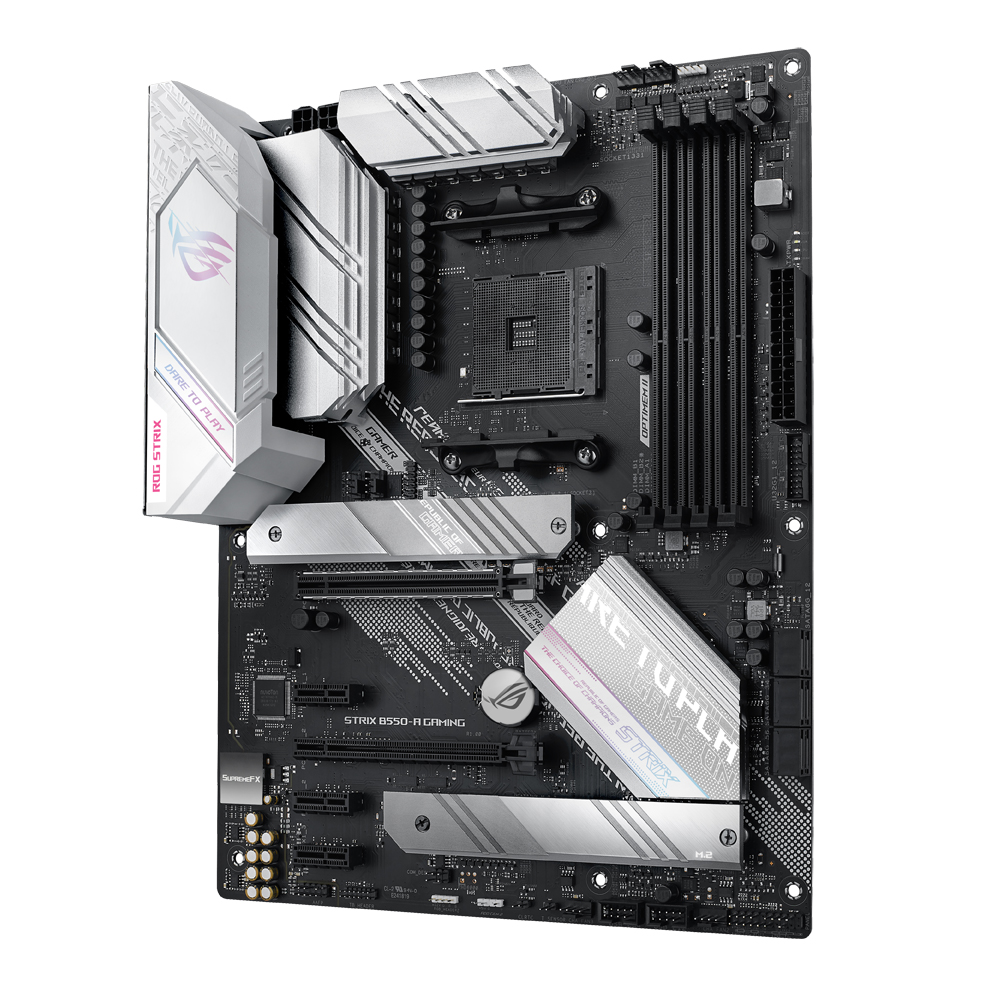

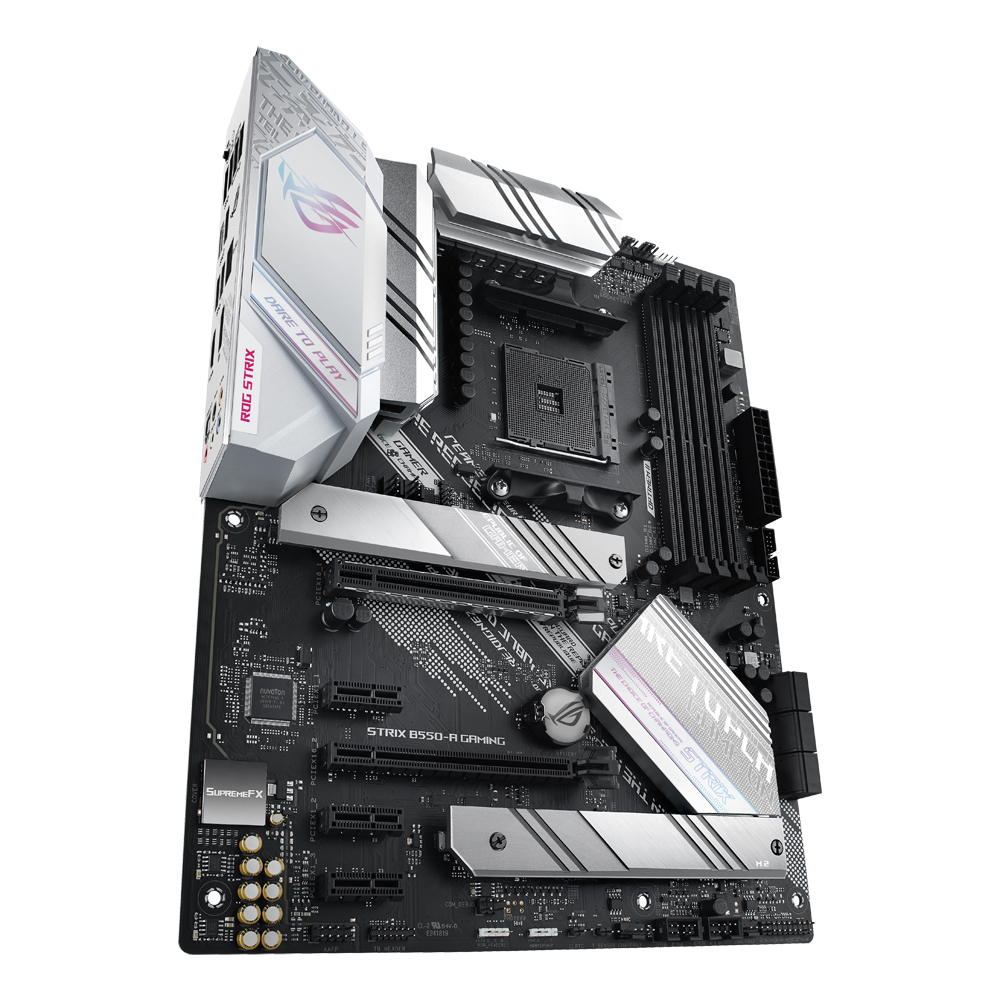

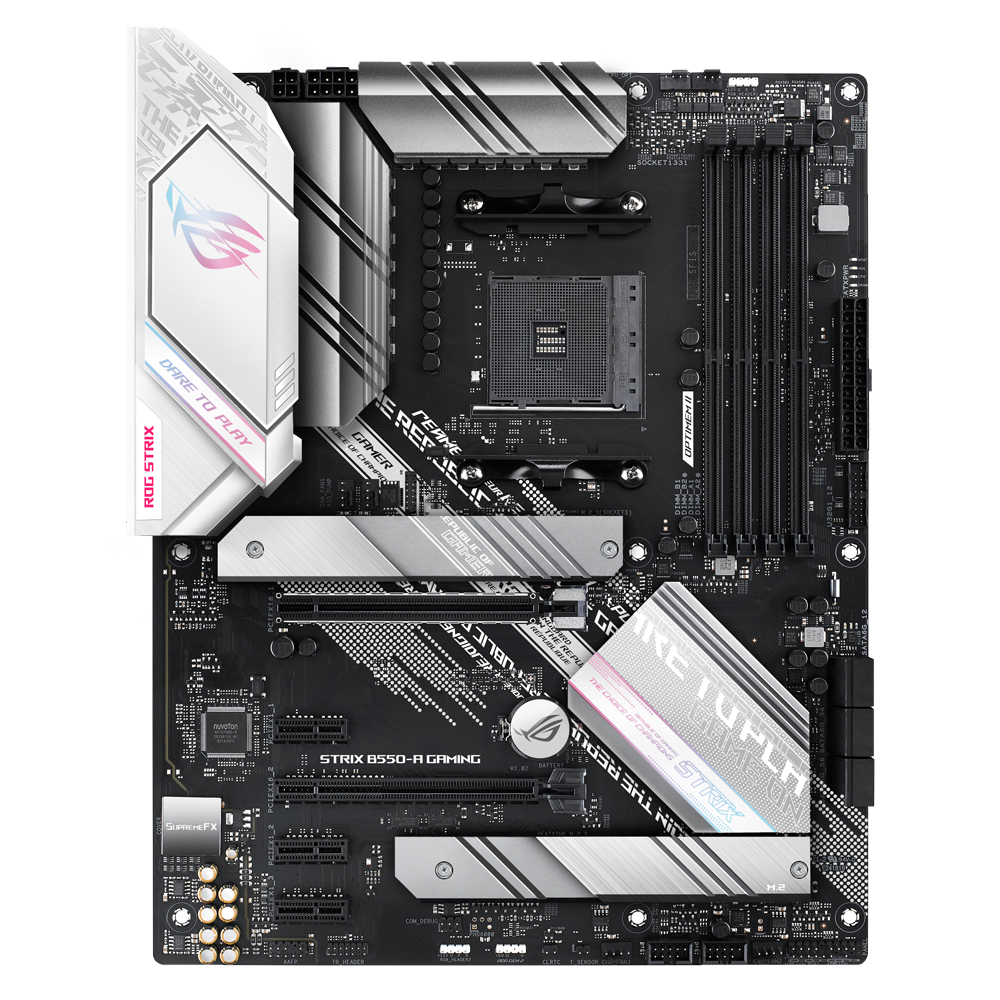

ROG STRIX B550-A GAMING

第3世代 AMD Ryzen プロセッサ向け、PCIe 4.0対応で2.5G LANを備えたゲーマー向けATXマザーボード



・対応CPU：第3世代 AMD Ryzen プロセッサ
・対応ソケット：AM4
・チップセット：AMD B550
・対応メモリ：DDR4-4600×4 (最大128GB）
・拡張スロット：PCIe 4.0 x16×1、PCIe 3.0 x16×1、PCIe 3.0 x1×3
・画面出力端子 : HDMI 2.1×1、DisplayPort 1.2×1
・ストレージ機能：M.2×2、SATA 6Gb/s×6
・Thunderbolt : ヘッダー搭載
・有線LAN機能：2.5GBASE-T×1 (Intel I225-V)
・USB機能USB（外部/内部）：USB 3.2 Gen 2×2 (2/0)、USB 3.2 Gen 1×6 (4/2)、USB 2.0×6 (2/4)
・フォームファクター : ATX（305mm×244mm）


製品ページはこちら


■主な仕様



対応CPU	AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors * Refer to www.asus.com for CPU support list
搭載チップセット	AMD B550
メインメモリ	3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture OptiMem II ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能	Integrated Graphics Processor 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) *Graphics specifications may vary between CPU types.
マルチGPU対応	Supports AMD 2-Way CrossFireX Technology
拡張スロット	3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) * 3 x PCIe 3.0 x1
ストレージ機能	Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* AMD B550 Chipset : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
LAN機能	Intel® I225-V 2.5Gb Ethernet ASUS LANGuard
オーディオ機能	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback * Audio Feature : - SupremeFX Shielding™ Technology - Gold-plated jacks - Optical S/PDIF in port(s) at back panel - Audio Shielding - Premium Japanese audio capacitors - Audio Cover * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB機能	Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
Software Features	ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync - AI Noise Cancelling Microphone AI Suite 3: - PPSU EPU DIGI+ VRM Fan Xpert 4 TurboV EVO - EZ update WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
ASUS Special Features	Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY -BIOS FlashBack™ button -BIOS FlashBack™ LED -Clear CMOS header -ProCool -Pre-mounted I/O shield - SafeSlot
背面インターフェース	1 x Intel® I225-V 2.5Gb Ethernet 1 x DisplayPort 1 x HDMI 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 1 x BIOS FlashBack™ Button(s) 5 x Gold-plated audio jacks
基板上インターフェース	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s)
主な付属品	User's manual 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension cable for Addressable LED 1 x ROG Thank you card 1 x M.2 SSD screw package(s) 1 x M.2 Rubber Package(s)
BIOS機能	256 Mb Flash ROM, UEFI AMI BIOS
管理機能	WOL by PXE
OS	Windows® 10 64-bit
フォームファクター（サイズW×D）	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他	* Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3 * When the M.2_2 Socket 3 is populated , SATA6G_5/6 ports will be disabled.

※製品の仕様・付属品は予告なく変更する場合があります。あらかじめご了承ください。
