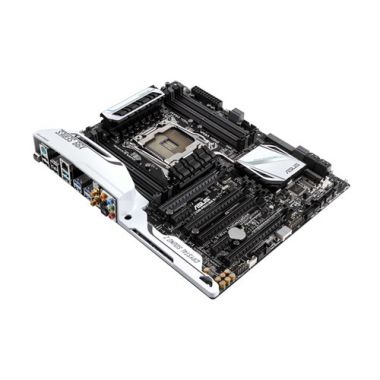

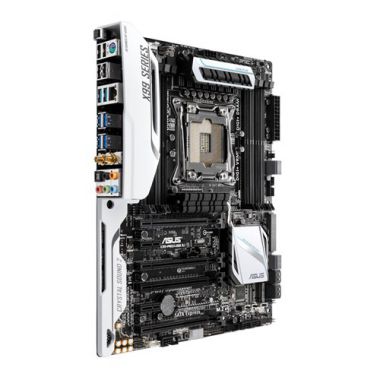

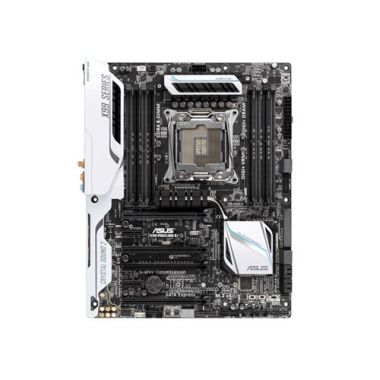

X99-PRO/USB3.1

X99-PRO/USB3.1

最高32Gb/sのデュアルM.2スロットに802.11ac対応無線LAN機能を搭載するX99マザーボード

OC性能と安定性を高めたLGA2011-v3完全互換の独自ソケット「OC Socket」を搭載
32Gb/sの転送速度に対応するPCIe 3.0 x4接続のM.2スロットをデュアル搭載
CPU＋メモリ用デジタル電源回路「DIGI+ Power Control」を搭載
CPUファン＋ケースファンを細かく設定できる「Fan Xpert 3」機能を搭載
低ノイズに徹底的にこだわったオーディオ機能「Crystal Sound 2」を搭載
オーバークロック関連処理を行うカスタムチップ「TPU」を搭載
電力制御を行うカスタムチップ「EPU」を搭載
USB 3.1の速度を最高10％高速化する「USB 3.1 Boost」機能を搭載
ATXフォームファクター

型番：ASU-X99-PRO/USB3.1

メーカー製品HP

CPU Intel Socket 2011-v3 Core i7 Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
チップセット Intel X99
メモリ 8 x DIMM, Max. 64GB, DDR4 3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Front Side Bus
System Bus
Thunderbolt
マルチGPU機能 Supports NVIDIA Quad-GPU SLI Technology
Supports NVIDIA 3-Way SLI Technology
Supports AMD Quad-GPU CrossFireX Technology
Supports AMD 3-Way CrossFireX Technology
CUDAコア数
拡張スロット 40-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) *1
28-Lane CPU-
3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4) *2
1 x PCIe 2.0 x16 (x4 mode) *3
2 x PCIe 2.0 x1 (x1 mode) *3
ストレージ機能 New Intel Core i7 Processors :
2 x M.2 Socket 3, , with M Key, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)
Intel X99 chipset :
1 x SATA Express port, , compatible with 2 x SATA 6.0 Gb/s ports
8 x SATA 6Gb/s port(s), *4,
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology, Intel Rapid Recovery Technology*5
LAN機能 Intel I218V, 1000BASE-T/100BASE-TX/10BASE-T×1
無線機能 Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Bluetooth機能 Bluetooth V4.0

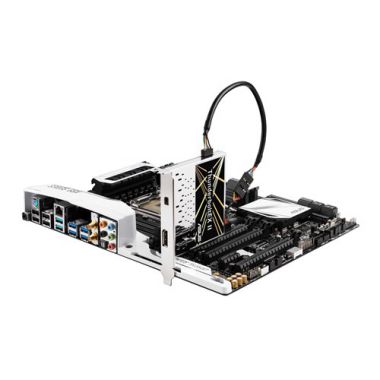

ThunderBolt LAN/Audio Combo Card
オーディオ機能 Realtek ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in)
- High-fidelity audio OP AMP(s)
Audio Feature :
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- Top notch audio sensation delivers according to the audio configuration
- EMI protection cover to prevent electrical noise to affect the amplifier quality
ThunderFX
IEEE1394
USB Intel X99 chipset :
5 x USB 3.0/2.0 port(s) (4 at mid-board)
Intel X99 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, , 4 at mid-board)
ASMedia USB 3.1 controller :
2 x USB 3.1/3.0/2.0 port(s) (2 at back panel, teal blue)
ASMedia USB 3.0 Hub :
3 x USB 3.0/2.0 port(s) (3 at back panel, blue)
Workstation Feature
OC Panel
Special Features 5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
ASUS 5X Protection :
- ASUS DIGI+ VRM - 8 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS TPU :
- Auto Tuning
- GPU Boost
- TPU switch
ASUS EPU :
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 8 Phase Power Design
- Industry leading Digital 4 Phase DRAM Power Design
- CPU Power Utility
- DRAM Power Utility
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer
- Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- M.2 & SATA Express
- Anti-Surge
- Onboard Button : Power/Reset
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Disk Unlocker
- Turbo LAN
- Crystal Sound 2
Interactive HomeCloud
- Media Streamer
ASUS EZ DIY :
- Precision Tweaker 2
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS USB BIOS Flashback
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Special Memory O.C. Design
Turbo App
Fan Xpert 3
Operating System Support Windows 8.1
Windows 8
Windows 7

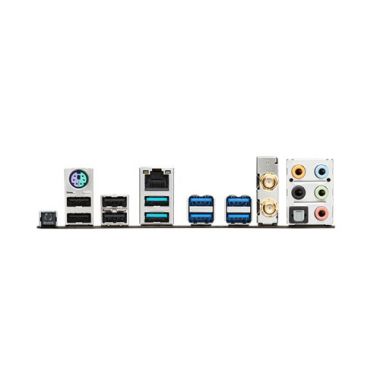

背面インターフェース 1 x PS/2 keyboard/mouse combo port(s)
1 x LAN (RJ45) port(s)
2 x USB 3.1 (teal blue)
4 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0
基板上インターフェース 1 x AAFP connector
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x SATA Express connector: gray,
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)
1 x TPM connector(s)
1 x COM port(s) connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x EZ XMP switch
1 x System panel(s) (Q-Connector)
1 x Chassis Intrusion connector(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x CPU/DRAM overvoltage jumper(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS jumper(s)
1 x 5-pin EXT_FAN(Extension Fan) connector

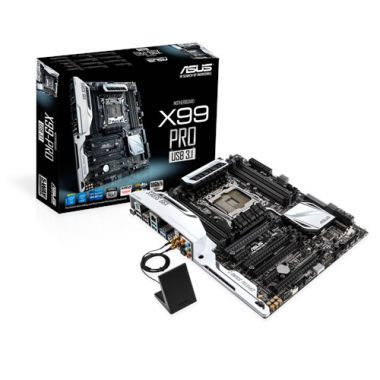

主な付属品 User's manual
ASUS Q-Shield
6 x SATA 6Gb/s cable(s)
1 x Feature manual
1 x M.2 X4 bracket
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
BIOS
Manageability
サポートDVD
OS Windows 8.1 32/64-bit
Windows 8 32/64-bit
Windows 7 32/64-bit
フォームファクター／サイズ（W×D） ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Management Solution
その他 1* The PCIe x16_4 shares bandwidth with M.2 x4. When M.2 socket is occupied, the PCIe x16_4 slot will be disabled.
2* The PCIe x16_4 shares bandwidth with M.2 x4. When M.2 socket is occupied, the PCIe x16_4 slot will be disabled.
The PCIe x16_3 slot support x8 devices only.
3* The PCIe x16_2, PCIe x1_1 and USB3_E56 connectors share the same bandwidth, and the PCIe x1_2 and Wi-Fi module share the same bandwidth.By default, the PCIe x16_2 slot and PCIe x1_1 slot will automatically run at x1 mode with USB3_E56 and Wi-Fi module enabled for best resource optimization.
4* Due to chipset behavior, The SATA6G_78, SATA6G_910 ports (black) do not support IRST including RAID configuration.
5* These functions will work depending on the CPU installed.

※製品の仕様・付属品は予告なく変更する場合があります。
予めご了承下さい。
